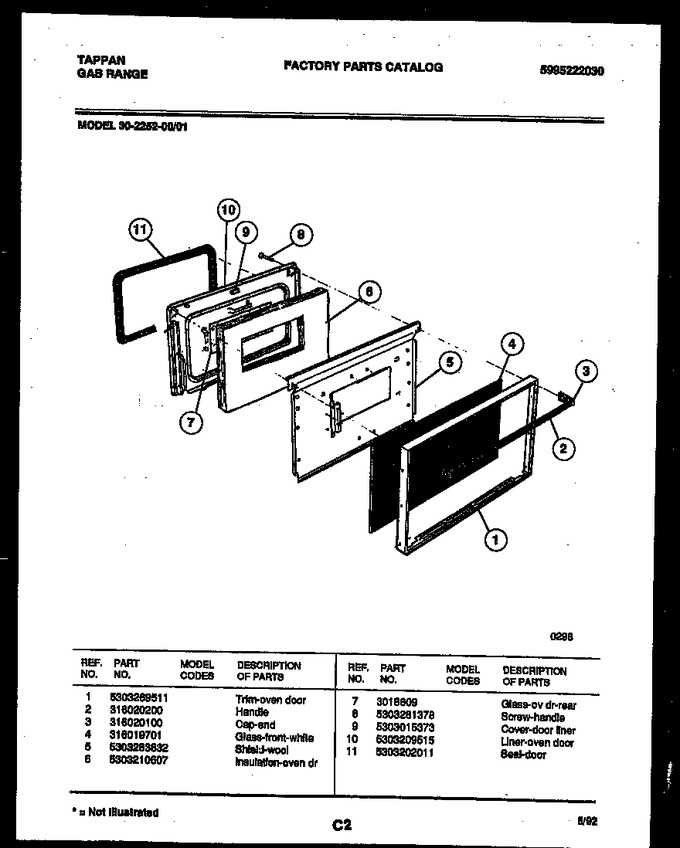

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303269511 | Trim-oven Door |
|
- | |||||
| 2 | 316020200 | Handle |
|
- | |||||
| 3 | 316020100 | Cap-end |
|
- | |||||
| 4 | 316019701 | Glass-front-white |
|
- | |||||
| 5 | 5303283832 | Shield-wool |
|
- | |||||
| 6 | 5303210607 | Insulation-oven Dr |
|
- | |||||
| 7 | 3018609 | Glass-ov Dr (rear) |
|
- | |||||
| 8 | 5303281378 | Screw-handle |
|
$ 13.60 | |||||
| 9 | 5303015373 | Cover-door Liner |
|
- | |||||
| 10 | 5303209515 | Liner-oven Door |
|
- | |||||
| 11 | 5303202011 | Seal, Door |
|
$ 166.84 |
