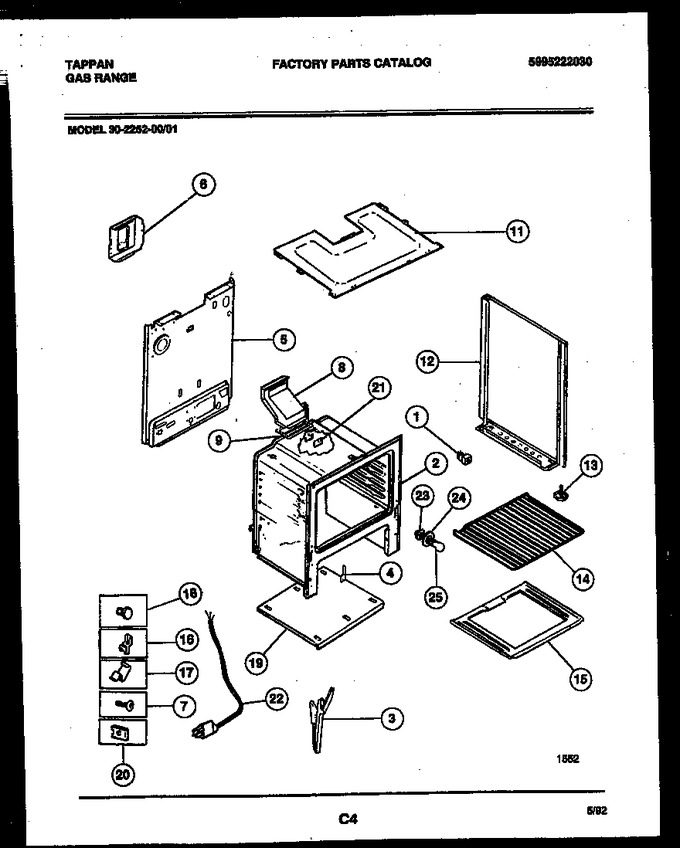

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3014099		Spacer, B/s (8)				$ 3.62
3	316007001		Channel-door Hng				$ 234.55
4	3131570		Cover-hng Cutout				$ 7.35
5	3203082		Back-main		Appelez-nous	-
6	3131660		Shield, Rear Wall		Appelez-nous	-
7	316282700		Screw-oven Bttm.   (Replaces: 3131732)				$ 9.93
8	3131904		Flue		Appelez-nous	-
9	08067965		Gasket-flue		Appelez-nous	-
11	3011597		Burner Box		Appelez-nous	-
12	5303269518		Pnl B/s - White Rh		Appelez-nous	-
13	5303203397		Screw-level (4)				$ 14.49
14	5303131973		Rack, Oven (2)		Appelez-nous	-
15	5303212540		Bottom, Oven		Appelez-nous	-
16	5303284616		Clip-tubing				$ 9.86
17	08067962		Fastener-wire		Appelez-nous	-
18	3131903		Bumper				$ 55.36
19	5303270160		Base-broil		Appelez-nous	-
20	3203010		Fastener, Hinge   (Replaces: 5303012323)				$ 14.89
21	3018607		Cover Plate				$ 10.50
22	5304534377		Cord, Power   (Replaces: 3202006)				$ 26.85
23	3014073		Socket-oven Light		Appelez-nous	-
24	5303271606		Housing,oven Light		Appelez-nous	-
25	5303208582		Light Bulb		Appelez-nous	-
*70898	19100200029		Wiring Diagram-(not For Purchase)		Appelez-nous	-
12A	5303269519		Pnl B/s - White Lh		Appelez-nous	-
13A	08010570		Fastener, Leveling Leg Tee Nut		Appelez-nous	-
15A	3017142		Insul - Oven Wrap (non-illustrated)				$ 193.50
15B	3203541		Insul - Oven Back (non-illustrated)		Appelez-nous	-
16A	08067961		Fastener-power Cord		Appelez-nous	-
18A	3014226		Supt, Oven Bottom (non-illustrated)		Appelez-nous	-
19A	3934056		Anti, Tip Bracket (non-illustrated)		Appelez-nous	-
19B	3131244		Cover-power Cord, (non-illustrated)		Appelez-nous	-
20A	5303015372		Cover, Front Main		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
