02 - Top And Console

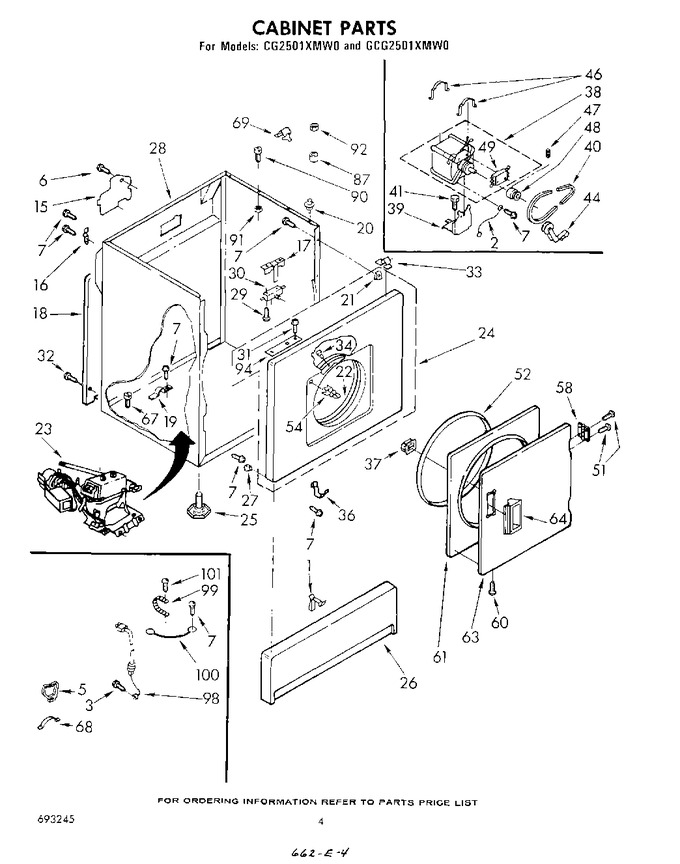

03 - Cabinet
04 - Bulkhead, Literature And Optional
05 - 688637 Burner
06 - Wiring Harness
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 341776 | Clip, Toe Panel |
|
- | |||||
| 2 | 690236 | Wire, Ground (motor) |
|
- | |||||
| 3 | WP681414 | Screw 10-32 X 1/2 (Replaces: 690989) |
|
Immediately | $ 7.07 | ||||
| 5 | 688412 | Clip, Harness Retainer |
|
- | |||||
| 6 | WP681414 | Screw, 10-16 X 1/2 (Replaces: 687128) |
|
Immediately | $ 7.07 | ||||
| 7 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 15 | W11736322 | Cover, Block (Replaces: 690893) |
|
- | |||||
| 16 | WP8066217 | Hinge, Top (2) (Replaces: 238088) |
|
$ 7.04 | |||||
| 17 | WP691581 | Lever, Door Switch (Replaces: 295998) |
|
Immediately | $ 7.28 | ||||
| 18 | 347736 | Panel, Rear |
|
- | |||||
| 19 | 341029 | Clamp, Pipe |
|
- | |||||
| 20 | 356837 | Locator, Top (1) |
|
- | |||||
| 20 | 98669 | Locator, Top (2) |
|
$ 12.03 | |||||
| 21 | WP98234 | Clip, Ground (2) (Replaces: 98234) |
|
Immediately | $ 10.25 | ||||
| 22 | 279264 | Seal & Bearing Assembly (Replaces: 349462) |
|
Immediately | $ 67.07 | ||||
| 23 | 688637 | Burner Assembly (60 Hz.) (refer To Page 8 For Further Breakdown) |
|
- | |||||
| 24 | 693984 | Front Panel Assembly (golden Harvest) |
|
- | |||||
| 24 | 693981 | Front Panel Assembly (almond) |
|
- | |||||
| 24 | 693983 | Front Panel Assembly (new Avocado) |
|
- | |||||
| 24 | 693980 | Front Panel Assembly (white) |
|
- | |||||
| 25 | 49621 | Foot, Plastic (4) (Replaces: 688222) |
|
Immediately | $ 7.70 | ||||
| 26 | 689540 | Panel, Toe (new Avocado) |
|
- | |||||
| 26 | 237035 | Panel, Toe (white) |
|
- | |||||
| 26 | 689539 | Panel, Toe (golden Harvest) |
|
- | |||||
| 26 | 689537 | Panel, Toe (almond) |
|
- | |||||
| 27 | 690625 | Clip, Toe Panel (2) |
|
- | |||||
| 28 | 690847 | Cabinet (white) |
|
- | |||||
| 28 | 690848 | Cabinet (almond) |
|
- | |||||
| 28 | 690851 | Cabinet (golden Harvest) |
|
- | |||||
| 28 | 690850 | Cabinet (new Avocado) |
|
- | |||||
| 29 | WP98129 | Screw, 6-20 X 7/8 (2) (Replaces: 98129) |
|
$ 6.80 | |||||
| 30 | W10820036 | Switch, Door (Replaces: 347207) |
|
Immediately | $ 27.45 | ||||
| 31 | WP90767 | Screw (Replaces: 90767) |
|
Immediately | $ 7.04 | ||||
| 32 | WP489069 | Screw, Hex Washer Head (7) (Replaces: 693994) |
|
Immediately | $ 7.07 | ||||
| 33 | WP18776 | Lock, Front Top (2) (Replaces: 18776) |
|
Immediately | $ 11.41 | ||||
| 34 | 279220 | Clip, Felt Pad (2) (Replaces: 685203) |
|
$ 18.59 | |||||
| 36 | WP297092 | Clip, Hinge (2) (Replaces: 297092) |
|
Immediately | $ 7.42 | ||||
| 37 | 279570 | Catch, Door Assembly (Replaces: 690081) |
|
Immediately | $ 8.00 | ||||
| 38 | 279827 | Motor Assembly, 60 Hz. (Replaces: 660199) |
|
Immediately | $ 172.76 | ||||
| 38 | 279827 | Motor Assembly, 60 Hz. (alt.) (Replaces: 690870) |
|
Immediately | $ 172.76 | ||||
| 39 | WP348780 | Base, Motor (Replaces: 348780) |
|
Immediately | $ 109.41 | ||||
| 40 | 341241 | Belt, Drive (Replaces: 349533) |
|
Immediately | $ 16.34 | ||||
| 41 | 3400500 | Bolt, 5/16-18 X 3/4 (Replaces: 172455) |
|
Immediately | $ 12.03 | ||||
| 44 | WP691366 | Idler & Pulley (Replaces: 691366) |
|
Immediately | $ 20.22 | ||||
| 46 | WP660658 | Clip, Motor (2) (alt.) (Replaces: 343481) |
|
$ 7.05 | |||||
| 46 | WP660658 | Clip, Motor (2) (Replaces: 660658) |
|
$ 7.05 | |||||
| 46 | WP660658 | Clip, Motor (2) (alt.) (Replaces: 685441) |
|
$ 7.05 | |||||
| 47 | 690046 | Set Screw |
|
- | |||||
| 48 | W11233559 | Pulley, 60 Hz., (includes Illus. 47) (Replaces: 685011) |
|
$ 102.50 | |||||
| 49 | 279827 | Switch, Motor Start (use W/690870 Motor) (Replaces: 337351) |
|
Immediately | $ 172.76 | ||||
| 51 | 689791 | Screw, Hinge (6) |
|
- | |||||
| 52 | W11613302 | Seal, Door (Replaces: 685763) |
|
$ 48.27 | |||||
| 54 | 279570 | Strike, Door (Replaces: 693717) |
|
Immediately | $ 8.00 | ||||
| 58 | WP348023 | Hinge & Pin Assembly (2) (Replaces: 348023) |
|
$ 7.58 | |||||
| 60 | WP694091 | Screw, Door (8) (Replaces: 694091) |
|
$ 6.47 | |||||
| 61 | 280077 | Door, Rear (new Avocado) (Replaces: 689276) |
|
$ 177.82 | |||||
| 61 | 280077 | Door, Rear (golden Harvest) (Replaces: 689277) |
|
$ 177.82 | |||||
| 61 | 280077 | Door, Rear (white) (Replaces: 348201) |
|
$ 177.82 | |||||
| 61 | 280077 | Door, Rear (almond) (Replaces: 689274) |
|
$ 177.82 | |||||
| 63 | 689319 | Door Front (golden Harvest) |
|
- | |||||
| 63 | WP348205 | Door, Front (white) (Replaces: 348205) |
|
Immediately | $ 132.65 | ||||
| 63 | 689318 | Door, Front (new Avocado) |
|
- | |||||
| 63 | 689314 | Door, Front (almond) |
|
- | |||||
| 64 | 689584 | Handle, Door (golden Harvest) |
|
- | |||||
| 64 | WP686711 | Handle, Door (white) (Replaces: 686715) |
|
Immediately | $ 7.16 | ||||
| 64 | 689583 | Handle, Door (new Avocado) |
|
- | |||||
| 64 | 689306 | Handle, Door (almond) |
|
- | |||||
| 67 | WPW10366705 | Screw, Burner Mounting (Replaces: 686953) |
|
$ 6.75 | |||||
| 68 | WP98997 | Clip, Harness (Replaces: 98997) |
|
$ 9.98 | |||||
| 69 | WP18776 | Lock, Front Top (2) (Replaces: 353145) |
|
Immediately | $ 11.41 | ||||
| 87 | 356674 | Wedge, Cone |
|
$ 33.19 | |||||
| 90 | 427190 | Screw, 1/4-20 X 7/8 |
|
- | |||||
| 91 | WP487939 | Nut (Replaces: 271172) |
|
$ 6.95 | |||||
| 92 | 90984 | Nut, 5/16-18 |
|
- | |||||
| 94 | 688021 | Bracket |
|
- | |||||
| 98 | W11222083 | Cord, Power (Replaces: 344020) |
|
$ 108.53 | |||||
| 99 | 22965 | Strap, Ground |
|
- | |||||
| 100 | 364089 | Wire, Ground |
|
- | |||||
| 101 | 132848 | Screw, 10-24 X 1 |
|
- |
