SELECT A DIAGRAM

02 - Top And Console


03 - Cabinet


04 - Bulkhead, Literature And Optional

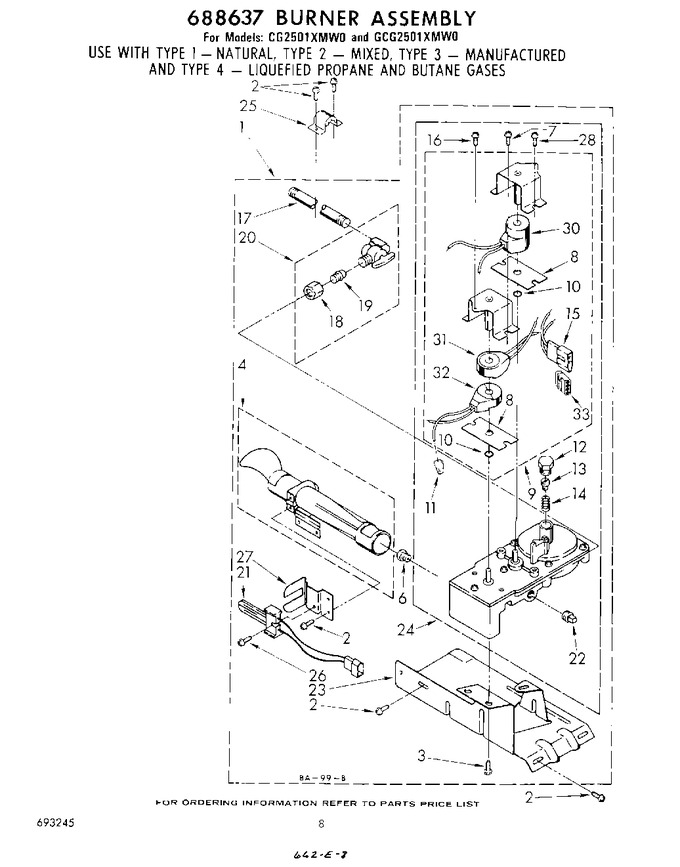

05 - 688637 Burner


06 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	688637		Burner Assembly, 60 Hz. (type 1, 2 & 3) (white Rodgers)		Appelez-nous	-
2	WP681414		Screw, 10-16 X 1/2 (5)   (Replaces: 343641)			Immediately	$ 7.07
3	WP90767		Screw, 8-32 X 3/8 (3)   (Replaces: 339527)			Immediately	$ 7.04
4	WP693140		Tube, Burner   (Replaces: 688617)				$ 161.89
6	15419		Orifice, Burner (type 3)		Appelez-nous	-
6	WP229742		Orifice, Burner (type 4 (butane))   (Replaces: 229742)				$ 31.37
6	WP234868		Orifice, Burner (type 4 (propane))   (Replaces: 234868)				$ 31.37
6	15775		Orifice, Burner (type 2)		Appelez-nous	-
6	WP234826		Orifice, Burner (type 1)   (Replaces: 234826)				$ 33.66
7	WP489128		Screw, 8-32 X 3/8   (Replaces: 98468)				$ 9.79
8	338869		Plate (2)		Appelez-nous	-
9	685947		Coil Assembly, 60 Hz.		Appelez-nous	-
10	296302		Ring, ``o`` (2)		Appelez-nous	-
11	340140		Connector, Wire (3)		Appelez-nous	-
12	338868		Screw, Leak Limiter		Appelez-nous	-
13	99996		Screw, Regulator Adjustment		Appelez-nous	-
14	339226		Spring, Regulator		Appelez-nous	-
15	353424		Plug, 3-way				$ 18.95
16	98487		Screw, 6-20 X 5/16		Appelez-nous	-
17	233273		Pipe, Gas Supply		Appelez-nous	-
18	233076		Nut, Compression				$ 43.19
19	3393767		Pipe, Tail   (Replaces: 233077)				$ 123.97
20	345062		Shut-off Valve & Union Assembly		Appelez-nous	-
21	279311		Ignitor   (Replaces: 686590)			Immediately	$ 71.01
22	W10295523		Plug, Pipe   (Replaces: 239822)		Appelez-nous	-
23	338455		Baseplate		Appelez-nous	-
24	688631		Valve Assembly, 60 Hz.		Appelez-nous	-
25	341029		Clamp, Pipe		Appelez-nous	-
26	WPW10366705		Lock Screw & Washer (8-32 X 5/8)   (Replaces: 686953)				$ 6.75
27	WP694298		Clip, Ignitor   (Replaces: 686833)				$ 23.33
28	340182		Screw, 8-32 X 5/8 (2)		Appelez-nous	-
30	348376		Coil Assembly (main)		Appelez-nous	-
31	348375		Coil Assembly (hold)		Appelez-nous	-
32	279060		Coil Assembly (assist)   (Replaces: 348374)		Appelez-nous	-
33	279243		Kit, Conversion (type 1 To Type 3)		Appelez-nous	-
33	717252		Receptacle, 2 Way		Appelez-nous	-
33	W10402145		Kit, Conversion Type 1, 2 & 3 To Type 4 (lpg)   (Replaces: 239072)				$ 97.89

    View Diagram in Separate Window       Print Part List
