View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

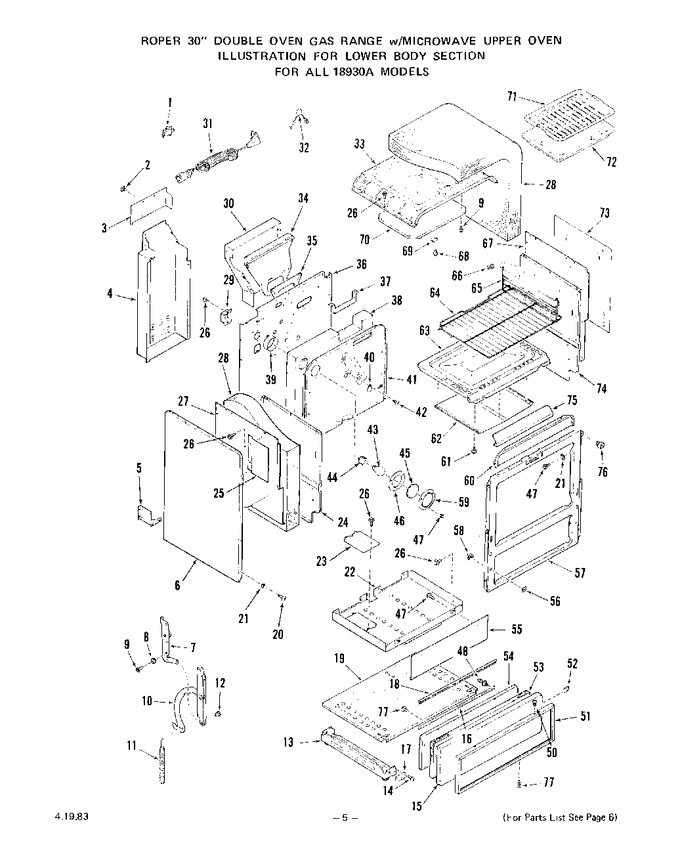

01 - Main Top
02 - Power Lock
03 - Burner
04 - Lower Body
05 - Lower Oven Door
06 - Upper Oven Pedestal
07 - Lower Oven Control
08 - Lit/optional
09 - Lit/optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 232150 | Disconnect |
|
- | |||||
| 2 | 70588 | Clip |
|
- | |||||
| 3 | 323289 | Extension-wire Cover |
|
- | |||||
| 4 | 324830 | Wire Cover |
|
- | |||||
| 5 | 320123 | Support (right) |
|
- | |||||
| 5 | 320121 | Support (left) |
|
- | |||||
| 6 | 321923 | Body Side-lt. Or Rt. (inc. Key 73) (golden Wheat) |
|
- | |||||
| 6 | 321924 | Body Side-lt. Or Rt. (inc. Key 73) (almond) |
|
- | |||||
| 6 | 321922 | Body Side-lt. Or Rt. (inc. Key 73) (avocado) |
|
- | |||||
| 6 | 321921 | Body Side-lt. Or Rt. (inc. Key 73) (coffee) |
|
- | |||||
| 6 | 321920 | Body Side-lt. Or Rt. (inc. Key 73) (white) |
|
- | |||||
| 7 | 325651 | Hinge Bracket W/roller (inc. Key 12) (left) |
|
- | |||||
| 7 | 325652 | Hinge Bracket W/roller (inc. Key 12) (right) |
|
- | |||||
| 8 | 69648 | Lockwasher |
|
Immediately | $ 17.61 | ||||
| 9 | 102429 | Screw 10 - 32 X 3/8`` |
|
- | |||||
| 10 | 293971 | Oven Door Hinge-lt. Or Rt. (inc. Key 12) |
|
- | |||||
| 11 | 310993 | Spring-oven Door (lt. Or Rt.) |
|
- | |||||
| 12 | 293224 | Shoulder Rivet |
|
- | |||||
| 13 | 322941 | Base W/levelers-(lt. Or Rt.) |
|
- | |||||
| 14 | 321162 | Screw 10-32 X 3/4`` |
|
- | |||||
| 15 | 319860 | Front-snap On Panel |
|
- | |||||
| 16 | 295277 | Retainer - Seal |
|
- | |||||
| 17 | W10900107 | Support - Snap On Panel (lt. Or Rt.) (Replaces: 311211) |
|
Immediately | $ 51.87 | ||||
| 18 | 295278 | Seal |
|
- | |||||
| 19 | 324818 | Main Bottom |
|
- | |||||
| 20 | 282634 | Screw 8abx3/4`` |
|
- | |||||
| 21 | 106462 | Washer |
|
- | |||||
| 22 | 321272 | Bottom-oven Burner |
|
- | |||||
| 23 | 321274 | Access Plate |
|
- | |||||
| 24 | 285482 | Oven Side-left |
|
- | |||||
| 25 | 311029 | Baffel-side Panel (lt Or Rt) |
|
- | |||||
| 26 | WP112432 | Screw 10-32x7/16`` (Replaces: 311484) |
|
$ 7.16 | |||||
| 27 | 322075 | Upper Insulation Retainer-lt. |
|
- | |||||
| 28 | 282953 | Insulation-oven Top & Sides (1 Piece) |
|
- | |||||
| 29 | 229369 | Bracket-oven Lamp Holder |
|
Immediately | $ 229.62 | ||||
| 30 | 324827 | Cover-flue Deflector |
|
- | |||||
| 31 | 312353 | Range Service Cord |
|
- | |||||
| 32 | 324385 | Varistor |
|
- | |||||
| 33 | 282102 | Oven Top |
|
- | |||||
| 34 | 294197 | Flue Deflector |
|
- | |||||
| 35 | 282157 | Gasket-flue Deflector |
|
- | |||||
| 36 | 324820 | Main Back |
|
- | |||||
| 37 | 282156 | Insulation Retainer - Flue |
|
- | |||||
| 38 | 282535 | Insulation-oven Back |
|
- | |||||
| 39 | 229370 | Retainer-oven Light Insulation |
|
- | |||||
| 40 | 229607 | Cover Plate, Rotisserie |
|
- | |||||
| 41 | 312013 | Oven Back |
|
- | |||||
| 42 | 289730 | Shoulder Bolt |
|
- | |||||
| 43 | DA96-01243C | Oven Lamp Bulb (Replaces: 111257) |
|
$ 144.00 | |||||
| 44 | 87883 | Holder-oven Lamp Bulb |
|
- | |||||
| 45 | 114989 | Lens-oven Light |
|
- | |||||
| 46 | 229371 | Gasket-oven Light Lens |
|
- | |||||
| 47 | 316365 | Screw 10-32x7/16`` |
|
- | |||||
| 48 | 313671 | Strike (2 Req) |
|
- | |||||
| 50 | 295268 | Screw 6-32x3/8`` |
|
- | |||||
| 51 | 310977 | Frame-snap On Panel |
|
- | |||||
| 52 | 310500 | Speed Nut |
|
- | |||||
| 53 | 282952 | Insulation |
|
- | |||||
| 54 | 4396923 | Lining-snap On Panel (Replaces: 310976) |
|
Immediately | $ 52.04 | ||||
| 55 | 304125 | Reflector - Front Frame |
|
- | |||||
| 56 | 310218 | Washer |
|
- | |||||
| 57 | 321919 | Front Frame W/rivets |
|
- | |||||
| 58 | 71003 | Catch-lt Or Rt |
|
- | |||||
| 59 | 229372 | Retainer-oven Light Lens |
|
- | |||||
| 60 | 282118 | Front Panel-broiler Burner |
|
- | |||||
| 61 | 97220 | Screw 6-32x1/4`` |
|
- | |||||
| 62 | 282127 | Baffle - Oven Bottom |
|
- | |||||
| 63 | 283457 | Oven Bottom (inc. Key 62) |
|
- | |||||
| 64 | 305361 | Oven Rack (2 Req) |
|
- | |||||
| 65 | 306150 | Oven Rack Guide (left) |
|
- | |||||
| 65 | 306149 | Oven Rack Guide (right) |
|
- | |||||
| 66 | 321539 | Retainer-thermostat Bulb (2 Req) |
|
- | |||||
| 67 | 322073 | Upper Insulation Retainer - Right |
|
- | |||||
| 68 | 316365 | Screw 10-32x7/16`` |
|
- | |||||
| 69 | 237762 | Cover Plate-thermostat Bulb |
|
- | |||||
| 70 | 285860 | Baffle - Oven Top |
|
- | |||||
| 71 | 282273 | Broiler Pan Grid |
|
- | |||||
| 72 | 282278 | Broiler Pan |
|
- | |||||
| 73 | 239603 | Heat Reflector - Rt. Or Lt. |
|
- | |||||
| 74 | 294195 | Oven Side - Rt. |
|
- | |||||
| 75 | 281574 | Heat Shield-broiler Burner |
|
- | |||||
| 76 | 100576 | Screw Grommet (6 Required) |
|
- | |||||
| 77 | 102376 | Screw 10-32 X 1/2`` |
|
- |
