Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 324023 Upper Oven Body Side (coffee-left) Appelez-nous -
1 324032 Upper Oven Body Side (almond-right) Appelez-nous -
1 324031 Upper Oven Body Side (golden Wheat-right) Appelez-nous -
1 324030 Upper Oven Body Side (avocado-right) Appelez-nous -
1 324029 Upper Oven Body Side (coffee-right) Appelez-nous -
1 324028 Upper Oven Body Side (white-right) Appelez-nous -
1 324026 Upper Oven Body Side (almond-left) Appelez-nous -
1 324025 Upper Oven Body Side (golden Wheat-left) Appelez-nous -
1 324024 Upper Oven Body Side (avocado-left) Appelez-nous -
1 324022 Upper Oven Body Side (white-left) Appelez-nous -
2 295268 Screw 6-32x3/8`` Appelez-nous -
3 320119 Support-pedestal (lt. Or Rt.) Appelez-nous -
4 320025 Pedestal-upper Oven (coffee-left) Appelez-nous -
4 320024 Pedestal-upper Oven (white-left) Appelez-nous -
4 320026 Pedestal-upper Oven (avocado-left) Appelez-nous -
4 320027 Pedestal-upper Oven (golden Wheat-left) Appelez-nous -
4 320028 Pedestal-upper Oven (almond-left) Appelez-nous -
4 320030 Pedestal-upper Oven (white-right) Appelez-nous -
4 320031 Pedestal-upper Oven (coffee-right) Appelez-nous -
4 320032 Pedestal-upper Oven (avocado-right) Appelez-nous -
4 320033 Pedestal-upper Oven (golden Wheat-right) Appelez-nous -
4 320034 Pedestal-upper Oven (almond-right) Appelez-nous -
5 WP112432 Screw 10-32x7/16``   (Replaces: 311484) Special Order $ 7.16

6 322992 Cover Plate Appelez-nous -
7 323860 Foam Strip Appelez-nous -
8 320215 Wire Cover Appelez-nous -
9 323867 Holder-fluorescent Lamp (right) Appelez-nous -
9 323866 Holder-fluorescent Lamp (left) Appelez-nous -
10 71734 Fluorescent Lamp (20 W - 24``) Appelez-nous -
11 303820 Screw 6-32 X 3/8`` Appelez-nous -
12 324747 Lamp Glass Appelez-nous -
13 320130 Upper Retainer-lamp Glass (golden Wheat) Appelez-nous -
13 320131 Upper Retainer-lamp Glass (almond) Appelez-nous -
13 320129 Upper Retainer-lamp Glass (avocado) Appelez-nous -
13 320128 Upper Retainer-lamp Glass (coffee) Appelez-nous -
13 320127 Upper Retainer-lamp Glass (white) Appelez-nous -
14 322933 End-vent (left) Appelez-nous -
14 322935 End - Vent (right) Appelez-nous -
15 324746 Bracket-fluorescent Lamp (rt. Or Lt.) Appelez-nous -
16 321107 Shield-wire In-Stock Immediately $ 41.96

17 320696 Foam Strip - Rt Or Lt Appelez-nous -
18 285523 Retainer Appelez-nous -
19 101523 Pop Rivet Appelez-nous -
20 320196 Spacer-body Side (lt. Or Rt.) Appelez-nous -
21 324791 Brace - Cabinet Side (lt Or Rt) Appelez-nous -
22 319987 Support-upper Oven (lt. Or Rt.) Appelez-nous -
23 320117 Stiffener - Back Appelez-nous -
24 322937 Baffle - Vent Appelez-nous -
25 322951 Vent Side-lt. Appelez-nous -
26 321664 Cover - Vent (almond) Appelez-nous -
26 321663 Cover - Vent (golden Wheat) Appelez-nous -
26 321661 Cover-vent (coffee) Appelez-nous -
26 321660 Cover-vent (white) Appelez-nous -
26 321662 Cover-vent (avocado) Appelez-nous -
27 108788 Screw 6-32 X 1/2`` Appelez-nous -
28 319839 Lower Retainer-lamp Glass Appelez-nous -
29 286327 Spring - Lamp Glass End Trim (lt Or Rt) Appelez-nous -
30 299979 End Trim - Lamp Glass (lt Or Rt) Appelez-nous -
31 299766 Screw 6-32 X 1/2`` Appelez-nous -
32 320263 Bottom-vent Appelez-nous -
33 320259 Vent Side-rt. Appelez-nous -
34 320211 Insulation - Cabinet Bottom Appelez-nous -
35 320202 Guide - Module (rt Or Lt) Appelez-nous -
36 324728 Screw Grommet (3 Req) Appelez-nous -
37 316849 Screw 10-32x7/16`` Appelez-nous -
38 325030 Foam Strip Appelez-nous -
39 325029 Foam Strip Appelez-nous -
40 321676 Oven Top Cover (almond) Appelez-nous -
40 320240 Oven Top Cover (white) Appelez-nous -
40 321673 Oven Top Cover (coffee) Appelez-nous -
40 321674 Oven Top Cover (avocado) Appelez-nous -
40 321675 Oven Top Cover (golden Wheat) Appelez-nous -
41 321669 Rear Cover-oven Top (coffee) Appelez-nous -
41 321672 Rear Cover-oven Top (almond) Appelez-nous -
41 321671 Rear Cover-oven Top (golden Wheat) Appelez-nous -
41 321670 Rear Cover-oven Top (avocado) Appelez-nous -
41 320476 Rear Cover-oven Top (white) Appelez-nous -
42 316365 Screw 10-32x7/16`` Appelez-nous -
43 109180 Convenience Outlet Appelez-nous -
44 320243 Oven Top Appelez-nous -
45 98186 Ballast Appelez-nous -
46 320213 Trim - Top Appelez-nous -
47 321044 Stop - Module Appelez-nous -
48 320210 Bottom-oven Cabinet Appelez-nous -
49 321410 Support Appelez-nous -
50 324709 Bracket - Hold Down (2 Req) Appelez-nous -
51 323824 Trim-filter (almond) Appelez-nous -
51 323820 Trim-filter (white) Appelez-nous -
51 323821 Trim-filter (coffee) Appelez-nous -
51 323822 Trim-filter (avocado) Appelez-nous -
51 323823 Trim Filter (golden Wheat) Appelez-nous -
52 102376 Screw 10-32 X 1/2`` Appelez-nous -
53 104520 Screw 10-32 X 17/32`` Appelez-nous -
54 320399 Stiffener - Front Appelez-nous -
56 320703 ``e`` Ring Appelez-nous -
57 311173 Fan Blade Appelez-nous -
58 320374 Support - Blower Appelez-nous -
59 320397 Motor - Blower Appelez-nous -
60 320412 Duct-fan Appelez-nous -
61 285726 Hex Nut 10-32 Appelez-nous -
62 232365 Bushing Appelez-nous -
63 283763 Retainer Appelez-nous -
64 70588 Clip Appelez-nous -
65 286889 Wire Shield-backguard Appelez-nous -
66 78565 Screw 8-32x3/16`` Appelez-nous -
67 281698 Timer Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

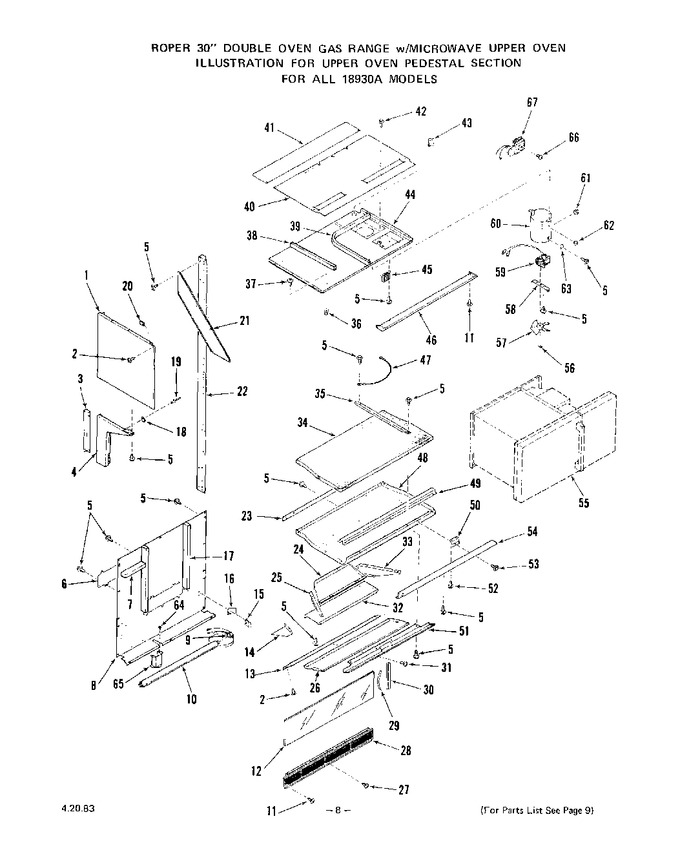

Diagram for 1893W0A
