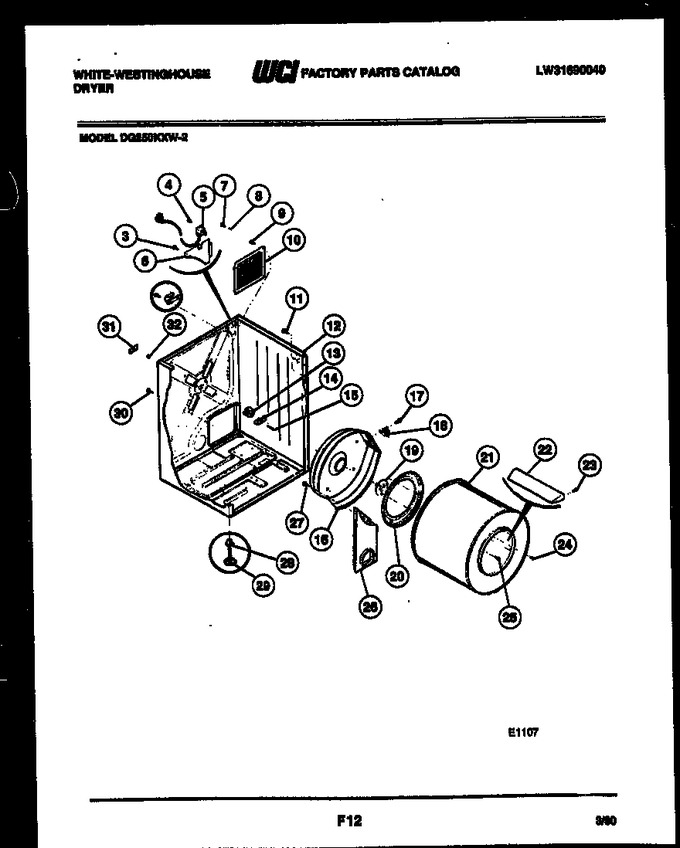

02 - Cabinet And Component Parts


03 - Door Parts


04 - Door And Installation Parts


05 - Burner, Igniter And Valve


06 - Motor And Blower Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	3281043		Screw		Appelez-nous	-
4	3010202		Screw		Appelez-nous	-
5	3281129		Service Cord		Appelez-nous	-
6	3281130		Cover		Appelez-nous	-
7	3281106		Screw		Appelez-nous	-
8	3281107		Washer		Appelez-nous	-
9	3281035		Screw		Appelez-nous	-
10	3281018		Cover Plate		Appelez-nous	-
11	3205657		Cabinet Assy-white		Appelez-nous	-
12	3010202		Screw		Appelez-nous	-
13	3281008		Bearing (part Of Rear Bearing Kit.)		Appelez-nous	-
14	3281023		Brkt-bearing Supt (part Of Rear Bearing Kit.)		Appelez-nous	-
15	3281033		Screw (part Of Rear Bearing Kit.)		Appelez-nous	-
16	3205699		Heater Hsg & Seal Assy		Appelez-nous	-
17	3281120		Screw		Appelez-nous	-
18	08015399		Thermostat		Appelez-nous	-
19	3281009		Shaft (part Of Rear Bearing Kit.)		Appelez-nous	-
20	3201198		Baffle		Appelez-nous	-
21	3202753		Drum		Appelez-nous	-
22	3201200		Vane		Appelez-nous	-
23	131382300		Screw   (Replaces: 3202754)			Immediately	$ 13.46
24	5603207393		Screw		Appelez-nous	-
25	3281027		Screw (part Of Rear Bearing Kit.)		Appelez-nous	-
26	3281123		Heat Duct Assy		Appelez-nous	-
27	3281035		Screw		Appelez-nous	-
28	3201202		Grommet				$ 22.47
29	3281032		Foot Bolt		Appelez-nous	-
30	3010202		Screw		Appelez-nous	-
31	3281020		Nut-flat (part Of Rear Bearing Kit.)		Appelez-nous	-
32	3281019		Ball (part Of Rear Bearing Kit.)		Appelez-nous	-
*22694	3281153		Rear Bearing Kit		Appelez-nous	-
