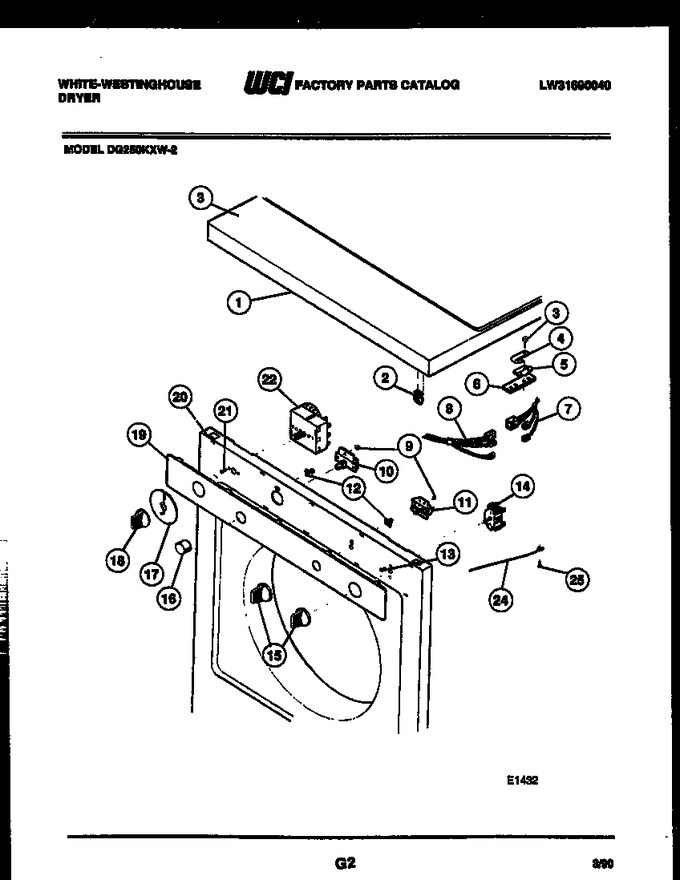

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3203243		Top Panel (white)		Appelez-nous	-
2	3281170		Spring Catch		Appelez-nous	-
3	08015345		Screw		Appelez-nous	-
4	3281163		Clip		Appelez-nous	-
5	3281164		Fastener		Appelez-nous	-
6	3281165		Spacer		Appelez-nous	-
7	3205700		Harness-main		Appelez-nous	-
8	3203246		Harness-component		Appelez-nous	-
9	3281089		Nut		Appelez-nous	-
10	3203292		Start Switch		Appelez-nous	-
11	5300632404		Buzzer		Appelez-nous	-
12	3281092		Quickey Bolt		Appelez-nous	-
13	3281101		Screw		Appelez-nous	-
14	3281100		Selector Switch		Appelez-nous	-
15	5300633724		Knob		Appelez-nous	-
16	3201221		Push Button		Appelez-nous	-
17	08027433		Dial		Appelez-nous	-
18	08015435		Knob		Appelez-nous	-
19	5300633781		Trimplate		Appelez-nous	-
20	3205661		Front Panel (white)		Appelez-nous	-
21	3281096		Screw		Appelez-nous	-
22	08027438		Timer		Appelez-nous	-
24	08015277		Ground Wire		Appelez-nous	-
25	3281035		Screw (4) (stacking Parts)		Appelez-nous	-
25	3203253		Instructions (stacking Parts)		Appelez-nous	-
25	3281171		Screw (2) (stacking Parts)		Appelez-nous	-
25	3281172		Washer (2) (stacking Parts)		Appelez-nous	-
25	3281173		Bracket (2) (stacking Parts)		Appelez-nous	-
22A	3281021		Shield-timer (non-illustrated)		Appelez-nous	-
22B	3281022		Ratchet Fstnr-shield (non-illustrated)		Appelez-nous	-
7A	3281103		Wire Tie		Appelez-nous	-
