02 - Cabinet And Component Parts

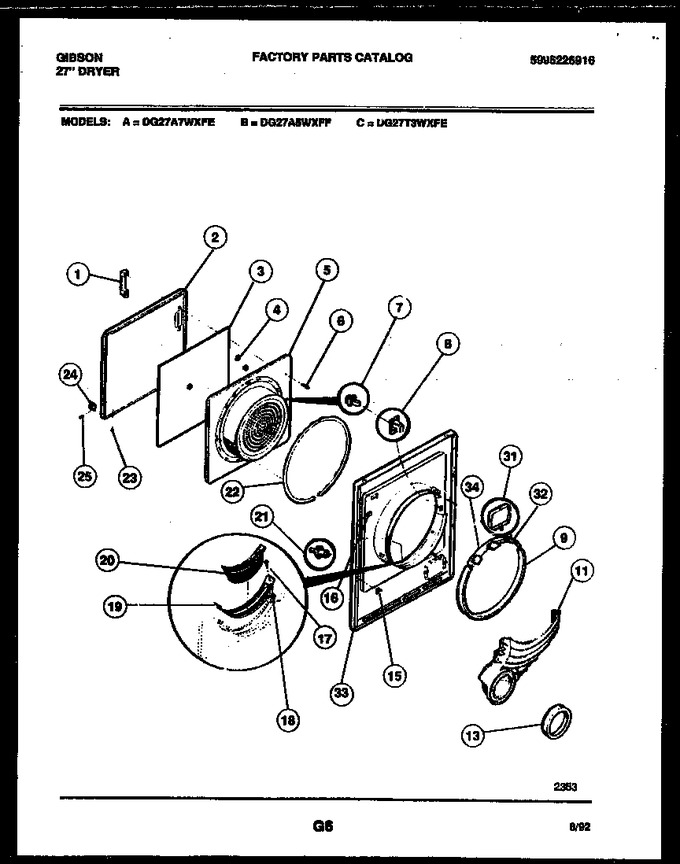

03 - Door Parts
04 - Console And Control Parts
05 - Blower And Drive Parts
06 - Burner, Igniter And Valve
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303281053 | Handle |
|
- | |||||
| 2 | 3201203 | Door-outer-white |
|
- | |||||
| 2 | 3201204 | Door - Outer - Almond |
|
- | |||||
| 3 | 5303281067 | Heat Shield |
|
- | |||||
| 4 | 3201205 | Spacer (1) |
|
- | |||||
| 4 | 3281058 | Spacer (2) |
|
- | |||||
| 5 | 3201207 | Door - Inner - Almond |
|
- | |||||
| 5 | 3201206 | Door, Inner, White |
|
- | |||||
| 6 | 5303281051 | Screw |
|
$ 4.52 | |||||
| 7 | 5303207102 | Strike Door (Replaces: 5303211430) |
|
Immediately | $ 19.85 | ||||
| 8 | 5366021400 | Catch-door (Replaces: 5303281055) |
|
Immediately | $ 55.99 | ||||
| 9 | 5303281049 | Seal |
|
$ 38.12 | |||||
| 11 | 131002500 | Air Duct |
|
- | |||||
| 13 | 134417000 | Seal (Replaces: 5303281013) |
|
Immediately | $ 9.22 | ||||
| 15 | 5303281074 | Clip (4) |
|
$ 18.27 | |||||
| 16 | 3281045 | Clip (4) |
|
- | |||||
| 17 | 3281178 | Screw |
|
- | |||||
| 18 | 3281061 | Clip |
|
$ 2.73 | |||||
| 19 | 5303281060 | Frame-lint Trap |
|
- | |||||
| 20 | 5303281059 | Lint Trap |
|
- | |||||
| 21 | 5308001614 | Switch-door |
|
- | |||||
| 22 | 5303201210 | Gasket, Door |
|
$ 45.68 | |||||
| 23 | 3281176 | Screw |
|
- | |||||
| 24 | 5303281050 | Hinge-door |
|
$ 20.58 | |||||
| 25 | 3281176 | Screw (8) |
|
- | |||||
| 31 | 3201212 | Door-access White |
|
- | |||||
| 31 | 3201213 | Door-access Almond |
|
- | |||||
| 32 | 3281066 | Screw |
|
- | |||||
| 33 | 5303290077 | Panel - Front - White |
|
- | |||||
| 33 | 5303290078 | Panel Front Almond |
|
- | |||||
| 34 | DE790 | Glide-drum (Replaces: 5303283285) |
|
Immediately | $ 40.53 |
