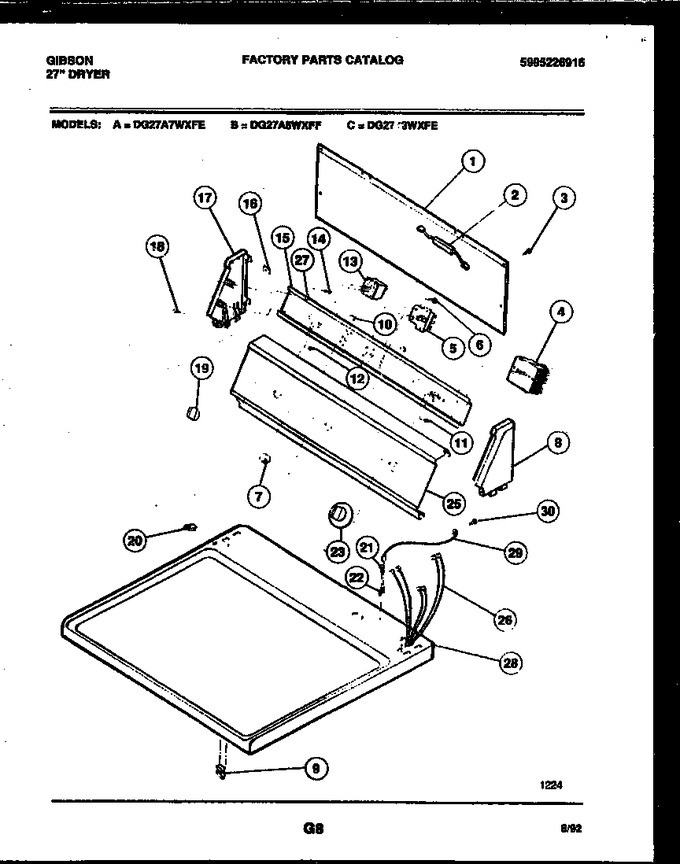

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3205898		Back Cover		Appelez-nous	-
3	5303015671		Screw (3)		Appelez-nous	-
4	5303283994		Timer		Appelez-nous	-
5	3201219		Switch - Start		Appelez-nous	-
6	08001544		Screw		Appelez-nous	-
7	3201220		Pushbutton		Appelez-nous	-
8	3205840		End Cap-rh		Appelez-nous	-
9	3205821		Spring Catch			Immediately	$ 35.44
10	5303281201		Pad		Appelez-nous	-
11	218359202		Screw   (Replaces: 5303283289)				$ 10.63
14	5303015671		Screw		Appelez-nous	-
15	5303285145		Bracket-controls		Appelez-nous	-
16	5308014350		Clip		Appelez-nous	-
17	3205842		End Cap-lh		Appelez-nous	-
18	3281203		Screw		Appelez-nous	-
20	5300503065		Nut				$ 6.09
21	08001689		Screw		Appelez-nous	-
22	5379171000		Terminal		Appelez-nous	-
23	3205843		Knob & Indicator		Appelez-nous	-
25	3205844		Panel - Control		Appelez-nous	-
26	131005600		Harness		Appelez-nous	-
27	3281200		Clip-ground		Appelez-nous	-
28	5303273261		Panel-top-white		Appelez-nous	-
28	5303273262		Panel Top-almond		Appelez-nous	-
29	3201308		Ground Wire		Appelez-nous	-
30	3281120		Ground Screw		Appelez-nous	-
26A	5303281103		Wire Tie (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
