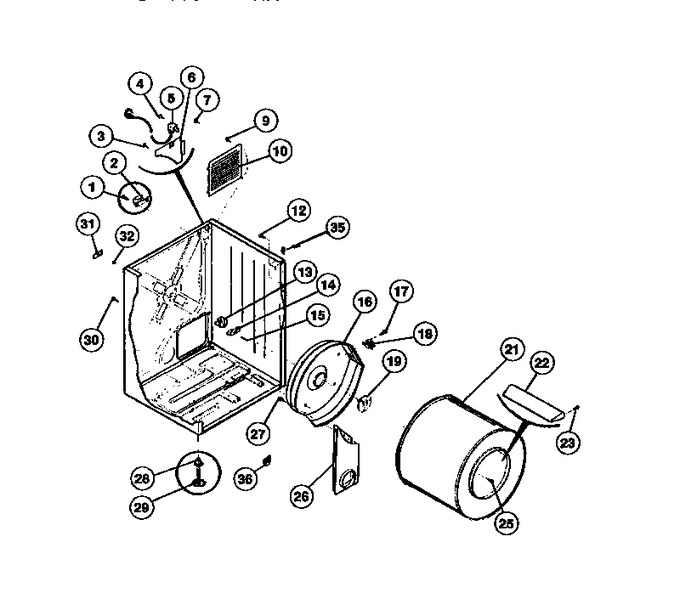

02 - Cabinet, Drum, Heat Duct


03 - Door, Front Panel, Lint Filter


04 - Console, Controls, Top Panel


05 - Motor, Fan Housing, Exhaust Duct


06 - Gas Valve, Burner Assembly, Sensor


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131168200		Screw (4)			Immediately	$ 14.18
2	131332700		Hinge (2)		Appelez-nous	-
3	5303015671		Screw		Appelez-nous	-
4	131205300		Screw			Immediately	$ 12.10
5	5303281129		Cord-service		Appelez-nous	-
6	3281130		Cover		Appelez-nous	-
7	134154100		Screw   (Replaces: 131301100)				$ 13.46
9	5303015671		Screw		Appelez-nous	-
10	5303281018		Plate-cover		Appelez-nous	-
12	13168200		Screw(4)		Appelez-nous	-
13	131825900		Bearing (part Of Rear Bearing Kit.)   (Replaces: 5303281008)			Immediately	$ 10.97
14	131724301		Bracket-bearing (part Of Rear Bearing Kit.)   (Replaces: 5303281023)			Immediately	$ 25.66
15	5303281033		Screw (part Of Rear Bearing Kit.)		Appelez-nous	-
16	5303281119		Heater Hsg & Seal Assy		Appelez-nous	-
17	131243700		Screw (2)				$ 3.36
18	5308015399		Thermostat - Safety				$ 242.18
19	5303281153		Shaft (part Of Rear Bearing Kit.)   (Replaces: 5303281009)			Immediately	$ 46.64
21	3201199		Drum				$ 246.86
22	137552900		Vane (3)   (Replaces: 5303201200)				$ 54.95
23	131205200		Screw (6)		Appelez-nous	-
25	5303205255		Screw (3) (part Of Rear Bearing Kit.)				$ 5.04
26	3281123		Duct-heat		Appelez-nous	-
27	5303281035		Screw (3)		Appelez-nous	-
28	3201202		Grommet (4)				$ 22.47
29	5303281032		Bolt-foot (4)		Appelez-nous	-
30	5303010202		Screw (4)				$ 5.15
31	5303281020		Nut-flat (part Of Rear Bearing Kit.)				$ 17.01
32	5303281019		Ball (part Of Rear Bearing Kit.)				$ 16.30
35	131346400		Pin, Locating				$ 12.44
36	131353500		Clip-cab. Front Btm		Appelez-nous	-
*91680	5303281153		Rear Bearing Kit			Immediately	$ 46.64

    View Diagram in Separate Window       Print Part List
