SELECT A DIAGRAM

02 - Cabinet, Drum, Heat Duct


03 - Door, Front Panel, Lint Filter


04 - Console, Controls, Top Panel


05 - Motor, Fan Housing, Exhaust Duct

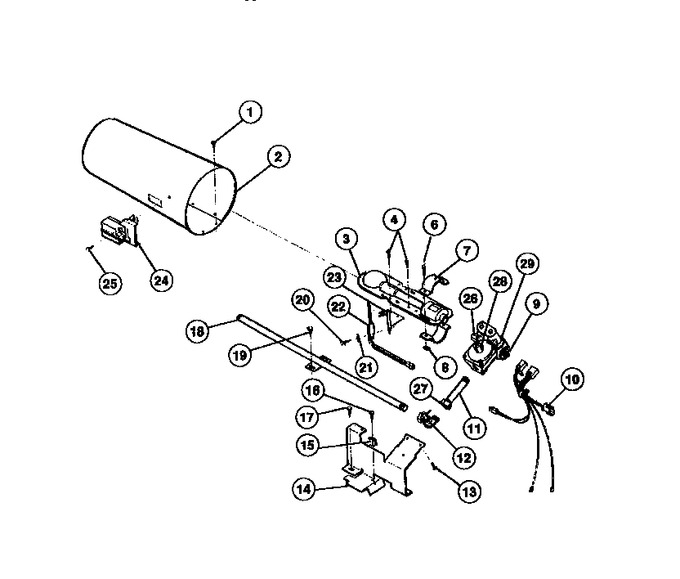

06 - Gas Valve, Burner Assembly, Sensor


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303010202		Screw(2)				$ 5.15
2	3201240		Tube Assy Burner		Appelez-nous	-
3	5303281136		Burner Assy		Appelez-nous	-
4	131243800		Screw(4)				$ 10.46
6	3205701		Screw		Appelez-nous	-
7	5303281138		Air Shutter (2)		Appelez-nous	-
8	5303281148		Nut (2)		Appelez-nous	-
9	5303281147		Valve		Appelez-nous	-
10	5303281137		Harness		Appelez-nous	-
11	5303212837		Connection-union Male		Appelez-nous	-
12	5303207407		Valve-angle		Appelez-nous	-
13	131243800		Screw (3)				$ 10.46
14	5303281145		Bracket		Appelez-nous	-
15	3281126		Clip		Appelez-nous	-
16	5303010202		Screw(2)				$ 5.15
17	3281134		Screw		Appelez-nous	-
18	08015271		Pipe		Appelez-nous	-
19	5303010202		Screw(2)				$ 5.15
20	5303281150		Screw		Appelez-nous	-
21	3201209		Washer		Appelez-nous	-
22	5303937186		Ignitor   (Replaces: 5303281151)				$ 80.61
23	5303281149		Bracket-ignitor				$ 30.61
24	5303281135		Sensor			Immediately	$ 102.06
25	131243700		Screw				$ 3.36
26	08015677		Orifice - Natural Gas		Appelez-nous	-
27	08015194		Nut-hex Union		Appelez-nous	-
28	5300622602		Coil-secondary		Appelez-nous	-
29	5308015680		Coil-booster		Appelez-nous	-
26A	5303300836		Lp Gas Kit (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
