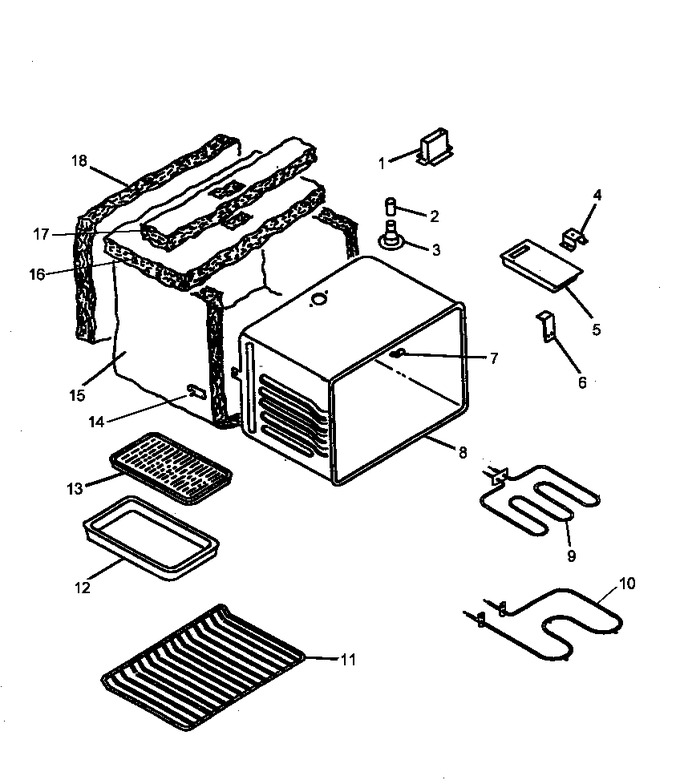

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y0059431 | Flue Box, Rear |
|
- | |||||
| 2 | 0060633 | Tube, Vent Extension |
|
- | |||||
| 3 | Y0058526 | Smoke Eliminator |
|
- | |||||
| 4 | Y0300632 | Mtg. Bracket, Vent |
|
- | |||||
| 5 | Y0300641 | Flue Box |
|
- | |||||
| 6 | Y0300943 | Bracket, Vent Support |
|
- | |||||
| 7 | Y0315022 | Cover, Chip |
|
- | |||||
| 8 | 314698CG | Oven Shell, Electric Dd |
|
- | |||||
| 9 | Y0060241 | Element, Broil (240v-3000w) |
|
- | |||||
| 10 | WP77001096 | Element, Bake (240v-2500w) (Replaces: Y0300538) |
|
$ 57.67 | |||||
| 11 | WP314763J | Rack,oven 22 27/32`` X 15 7/16`` (Replaces: 314763J) |
|
$ 70.11 | |||||
| 12 | 4396923 | Pan, Broiler (cg) (Replaces: 314175CG) |
|
Immediately | $ 52.04 | ||||
| 13 | 4396923 | Grid, Broiler (cg) (Replaces: 304451CG) |
|
Immediately | $ 52.04 | ||||
| 14 | Y0058852 | Bracket, Oven Cavity |
|
- | |||||
| 15 | Y0301713 | Insulation, Wrapper |
|
- | |||||
| 16 | 0301711 | Insulation, Top |
|
- | |||||
| 17 | 0058319 | Insulation, Latch |
|
- | |||||
| 18 | 0301712 | Insulation, Back |
|
- | |||||
| NI | Y0091546 | Support |
|
- |
