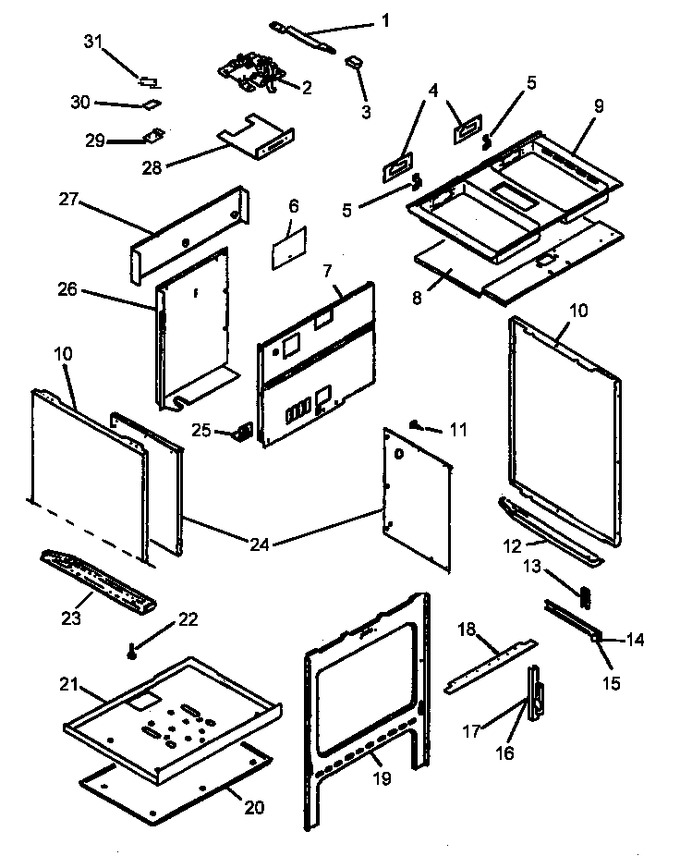

01 - Cabinet Assy


02 - Control Panel Parts


03 - Electrical Components


04 - Main Top Assy


05 - Oven Assy


06 - Oven Door Assy


07 - Storage Drawer Assy


08 - Ventilation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	303040B		Handle, Door Latch (blk)		Appelez-nous	-
2	0314960		Latch, Elect. Si		Appelez-nous	-
3	0302300		Knob, Latch Handle (blk)		Appelez-nous	-
4	Y0300498		Plate Mtg. Plug Block		Appelez-nous	-
5	Y0040965		Plug Block Mtg Brkt Et590 595		Appelez-nous	-
6	Y0091308		Plate, Access		Appelez-nous	-
7	Y0314682		Insulation Retainer (rear)		Appelez-nous	-
8	Y0315622		Retainer, Insulation Top		Appelez-nous	-
9	315149CG		Box, Burner		Appelez-nous	-
10	317036B		Panel, Side (blk)		Appelez-nous	-
11	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: Y0059445)			Immediately	$ 12.65
12	314885B		Brace, Leveling Leg (rt)		Appelez-nous	-
13	Y0315150		Support, Stg Dwr Trk		Appelez-nous	-
14	Y0314666		Track, Storage Drawer Lt		Appelez-nous	-
15	Y0314667		Track, Storage Drawer Rt		Appelez-nous	-
16	Y0314572		Kit, Door Hinge(lh-hs)		Appelez-nous	-
17	Y0314573		Kit, Door Hinge(rh-ss)		Appelez-nous	-
18	Y0315148		Filler, Front Frame		Appelez-nous	-
19	Y00000000		See Note Front Frame -- (not Field Replaceable		Appelez-nous	-
20	Y0315146		Shield, Heat		Appelez-nous	-
21	Y0315147		Insulation Retainer (bottom)		Appelez-nous	-
22	314187B		Leg,leveling Xxx		Appelez-nous	-
23	314884B		Brace, Leveling Leg (lt)		Appelez-nous	-
24	Y0314680		Insulation Retainer, (side)		Appelez-nous	-
25	Y0058556		Bracker, Conduit		Appelez-nous	-
26	Y0314672		Cover, Rear Wire		Appelez-nous	-
27	0314785		Shield, Rear		Appelez-nous	-
28	Y0058918		Bracket, Latch Mtg.		Appelez-nous	-
29	Y0302316		Bracket, Switch		Appelez-nous	-
30	Y0091523		Insulation, Esm		Appelez-nous	-
31	Y0065780		Switch, Clean Circuit				$ 11.77
NI	Y0078780		Screw Latch Arm Mounting		Appelez-nous	-
NI	WP3400882		Screw, No.8-32 X 3/16 Pph   (Replaces: Y0041768)			Immediately	$ 6.47
NI	Y0315560		Brkt, Range Anti-tip		Appelez-nous	-
NI	0041902		Speed Nut (twin Type)		Appelez-nous	-
NI	Y0066765		Screw 6-32 X 3/8		Appelez-nous	-
NI	Y0092365		Screw 4-40x1		Appelez-nous	-
NI	Y0065664		Screw, Tt 23 4-40 X 5/8		Appelez-nous	-
NI	Y0301555		Anchor, Plastic		Appelez-nous	-
NI	0041845		Nut		Appelez-nous	-
NI	Y0073657		Screw, No.6-20 X .375 Pan Hd Ph		Appelez-nous	-
NI	Y0041813		Screw Cabinet Trim		Appelez-nous	-
NI	0302483		Cover Plate, Latch		Appelez-nous	-
