New Model Search:

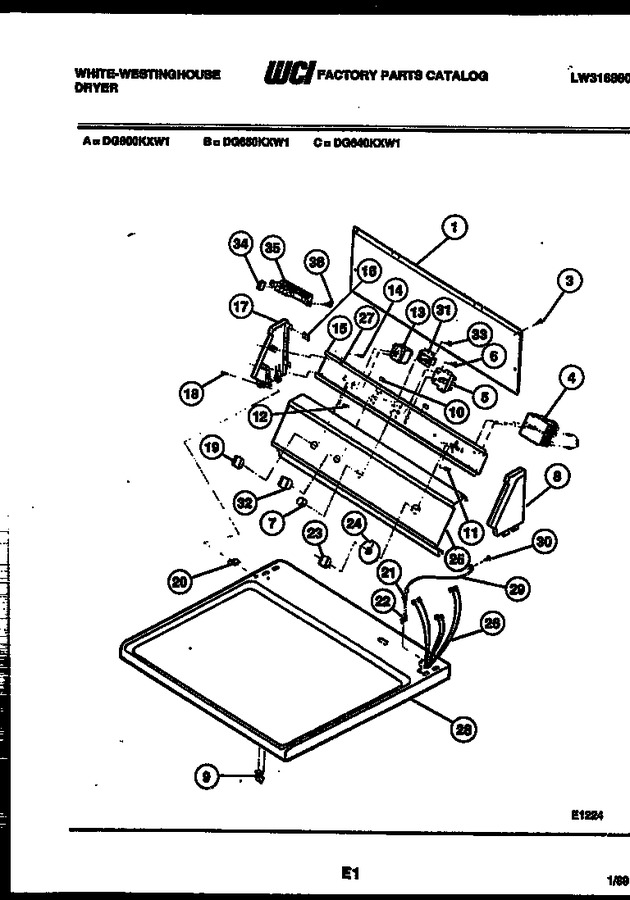

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3281186 | Cover-back |
|
- | |||||
| 3 | 3261048 | Screw (4) |
|
- | |||||
| 4 | 3201218 | Timer |
|
- | |||||
| 5 | 3201219 | Switch - Start |
|
- | |||||
| 6 | 08001544 | Screw |
|
- | |||||
| 7 | 3201221 | Push Button |
|
- | |||||
| 8 | 3281191 | End Cap, Rh |
|
- | |||||
| 9 | 3281170 | Spring Catch |
|
- | |||||
| 10 | F142240-000 | Pad |
|
- | |||||
| 11 | 3281096 | Screw (2) |
|
- | |||||
| 12 | 3281101 | Screw (2) |
|
- | |||||
| 14 | 3281035 | Screw (4) |
|
- | |||||
| 15 | 3201659 | Bracket-mounting |
|
- | |||||
| 16 | F140666-000 | Clip (8) |
|
- | |||||
| 17 | 3281189 | End Cap, Lh |
|
- | |||||
| 18 | 3281203 | Screw (2) |
|
- | |||||
| 20 | 3281192 | Grommet |
|
- | |||||
| 21 | 08001689 | Screw |
|
- | |||||
| 22 | F079171-000 | Terminal |
|
- | |||||
| 23 | 08015435 | Knob-timer |
|
- | |||||
| 24 | 08015434 | Pointer |
|
- | |||||
| 25 | Q000634071 | Trimplate |
|
- | |||||
| 26 | 3201227 | Harness |
|
- | |||||
| 26 | 3201229 | Harness |
|
- | |||||
| 27 | F142242-000 | Clip-ground |
|
- | |||||
| 28 | 3201231 | Panel-top White |
|
- | |||||
| 28 | 3201660 | Panel-top Wheat |
|
- | |||||
| 28 | 3201232 | Panel-top Almd |
|
- | |||||
| 29 | 3201233 | Wire-ground |
|
- | |||||
| 30 | 3281120 | Screw-ground |
|
- | |||||
| 31 | Q000152914 | Cycle Signal |
|
- | |||||
| 32 | Q000633722 | Knob-rotary |
|
- | |||||
| 33 | 3261062 | Screw |
|
- | |||||
| 34 | Q000148996 | Push Button (4) |
|
- | |||||
| 35 | 3201661 | Switch-p.b. |
|
- | |||||
| 36 | 3261062 | Screw (2) |
|
- | |||||
| 26A | 3281103 | Tie-wire (non-illustrated) |
|
- |
