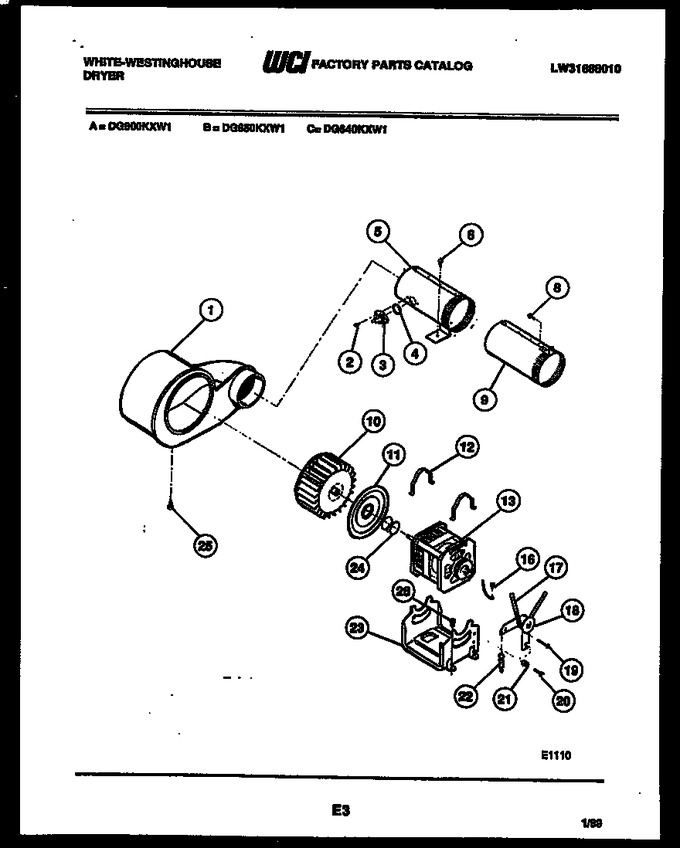

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3281014 | Fan Housing Assy (1) |
|
- | |||||
| 2 | 3281035 | Screw (2) |
|
- | |||||
| 3 | 3281121 | Thermostat (1) |
|
- | |||||
| 4 | 3281015 | Gasket (1) |
|
- | |||||
| 5 | 3201234 | Tube Assembly Thermostat (1) |
|
- | |||||
| 6 | 3281035 | Screw (2) |
|
- | |||||
| 8 | 3010202 | Screw (1) |
|
- | |||||
| 9 | 3201236 | Exhaust Duct (1) |
|
- | |||||
| 10 | 3281079 | Blower Wheel (1) |
|
- | |||||
| 11 | 3281080 | Fan Cover (1) |
|
- | |||||
| 12 | 3281084 | Motor Clamp (2) |
|
- | |||||
| 13 | 3201237 | Motor & Pulley Assembly (1) |
|
- | |||||
| 16 | 3281120 | Screw-ground (1) |
|
- | |||||
| 17 | 5303281154 | Belt (1) (Replaces: 3281154) |
|
Immediately | $ 25.52 | ||||
| 18 | 3201238 | Idler Assembly (1) |
|
- | |||||
| 19 | 3261230 | Screw-stop (1) |
|
- | |||||
| 20 | 3281073 | Screw (1) |
|
- | |||||
| 21 | 3281076 | Spacer (1) |
|
- | |||||
| 22 | 3281085 | Idler Spring (1) |
|
- | |||||
| 23 | 3201239 | Motor Cradle (1) |
|
- | |||||
| 24 | 3281083 | Spring |
|
- | |||||
| 25 | 3281036 | Screw (4) |
|
- | |||||
| 26 | 3281077 | Screw (2) |
|
- |
