SELECT A DIAGRAM

01 - Backguard And Gas Supply


02 - Cabinet


03 - Cavity


04 - Main Top


05 - Oven Door And Storage Door

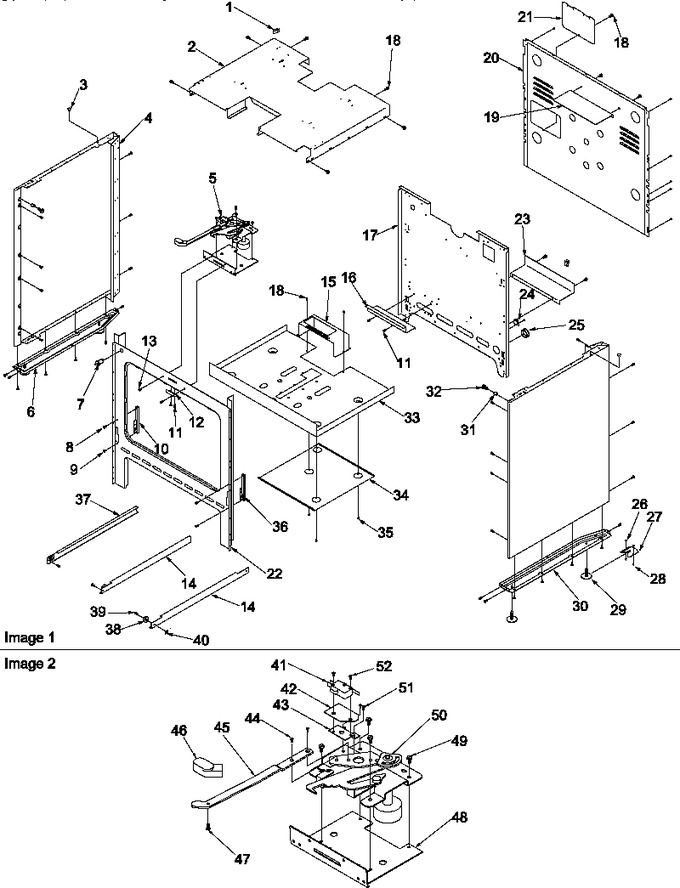

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0091587		Cable, Clip Esm		Appelez-nous	-
2	31730801		Retainer, Top Insul		Appelez-nous	-
3	31717001		Spacer, Snap-in		Appelez-nous	-
4	317036W		Panel, Side (wht)		Appelez-nous	-
5	Y00000000		See Note Assy, Manual Latch-gas(see Image 2)		Appelez-nous	-
6	Y0314882		Leveling Leg\bottom Brace Lt		Appelez-nous	-
7	Y0314367		Switch, Oven Light		Appelez-nous	-
8	WP7101P126-60		Screw, No.10-12 X 500`` Ab (zn)   (Replaces: 31750507)			Immediately	$ 6.85
9	WP4159193		Screw, No.10-32 X 5/16 Pan Ph H   (Replaces: 31750521)				$ 4.29
10	31715201		Hinge, Oven Door (lt)		Appelez-nous	-
11	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: 31750701)			Immediately	$ 12.65
12	Y0315022		Cover, Chip		Appelez-nous	-
13	31750707		Screw, No.8-18 X 1/2 Washer Hd		Appelez-nous	-
14	0314663		Track, Storage Dwr Rh		Appelez-nous	-
15	Y0302498		Cover, Ig/bake Burner		Appelez-nous	-
16	31782401		Wire Raceway		Appelez-nous	-
17	Y0316788		Retainer, Rear Insul		Appelez-nous	-
18	WP693995		Screw, No.8-18 X 3/8 P Hex Wsh T   (Replaces: 31750432)			Immediately	$ 6.47
19	Y0316712		Shield, Clock Heat		Appelez-nous	-
20	Y0315888		Cover, Rear		Appelez-nous	-
21	Y0091308		Plate, Access		Appelez-nous	-
22	Y00000000		See Note Frontframe-enamel -- (not Field Replacable)		Appelez-nous	-
23	Y0306827		Cover, Electrical		Appelez-nous	-
24	Y0074685		Wire Clamp, Insulated		Appelez-nous	-
25	308655B		Bushing, Snap (blk)		Appelez-nous	-
26	31750412		Screw, No.8-18x5/8 P Rd Hd (blk)		Appelez-nous	-
27	Y0315560		Brkt, Range Anti-tip		Appelez-nous	-
28	Y0301555		Anchor, Plastic		Appelez-nous	-
29	314187B		Leg,leveling Xxx		Appelez-nous	-
30	Y0314883		Leveling Leg\bottom Brace Rt		Appelez-nous	-
31	Y0316848		Sleeve, .250 Dia.		Appelez-nous	-
32	31750412		Screw, No.8-18x5/8 P Rd Hd (blk)		Appelez-nous	-
33	31719301		Retainer, Bot Insul		Appelez-nous	-
34	0059596		Shield		Appelez-nous	-
35	31750511		Screw, No.10-32x1/2 (ph Taptite)		Appelez-nous	-
36	Y0317068		Kit, Door Hinge(rh-ss)		Appelez-nous	-
37	Y0314662		Track, Storage Dwr Lh		Appelez-nous	-
41	Y0304579		Latch Switch Hi Temp		Appelez-nous	-
42	Y0091523		Insulation, Esm		Appelez-nous	-
43	Y0302316		Bracket, Switch		Appelez-nous	-
44	31750508		Screw, No.10-24x9/32 (ph Sems)		Appelez-nous	-
45	303040W		Handle, Door Latch (wht)		Appelez-nous	-
46	306830W		Knob, Latch Handle (wht)		Appelez-nous	-
47	31750306		Screw, No.6-32 X .375 Flat Hd Ph		Appelez-nous	-
48	Y0315910		Bracket, Latch Mounting		Appelez-nous	-
49	WP693995		Screw, No.8-18 X 3/8 P Hex Wsh T   (Replaces: 31750432)			Immediately	$ 6.47
50	0314960		Latch, Elect. Si		Appelez-nous	-
51	Y0065664		Screw, Tt 23 4-40 X 5/8		Appelez-nous	-
52	Y0092365		Screw 4-40x1		Appelez-nous	-
NI	Y0306654		Power Cord		Appelez-nous	-
NI	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: Y0059445)			Immediately	$ 12.65

    View Diagram in Separate Window       Print Part List
