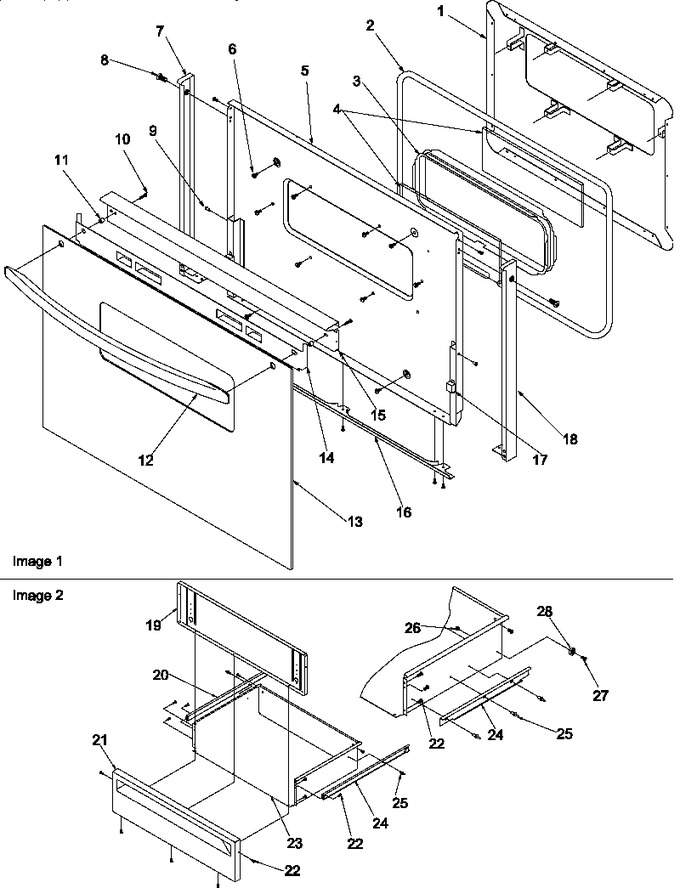

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316976CG		Pad, Door (enameled)		Appelez-nous	-
2	31715902		Gasket, Oven Door (67``)				$ 13.97
3	Y0316975		Frame, Window Pack		Appelez-nous	-
4	Y0316974		Glass, Double Coated		Appelez-nous	-
5	317011CG		Backer, Door (enameled)		Appelez-nous	-
6	WP693995		Screw, No.8-18 X 3/8 P Hex Wsh T   (Replaces: 31750432)			Immediately	$ 6.47
7	309523W		End Cap, Door (lt-wht)		Appelez-nous	-
8	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: 31750701)			Immediately	$ 12.65
9	Y0302648		Rivet, Pop		Appelez-nous	-
10	31750518		Screw, No.10-32 X 1.250`` Pan Hd		Appelez-nous	-
11	Y0309461		Bushing, Handle (nal)		Appelez-nous	-
12	31689503W		Handle, Oven Door (wht)		Appelez-nous	-
13	316227W		Glass, Oven Door (white)		Appelez-nous	-
14	316981W		Assy, Glass Heat Shield		Appelez-nous	-
15	316980W		Trim, Door Top (wht)		Appelez-nous	-
16	309460W		Support, Glass (wht)		Appelez-nous	-
17	Y0309627		Bumper, Rubber		Appelez-nous	-
18	309522W		End Cap, Door (rt-wht)		Appelez-nous	-
19	309178B		Liner, Drawer Panel (blk)		Appelez-nous	-
20	0314664		Runner Storage Dwr-lh		Appelez-nous	-
21	309176W		Panel, Drawer (wht)		Appelez-nous	-
22	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: 31750701)			Immediately	$ 12.65
23	316253W		Drawer, Storage (wht)		Appelez-nous	-
24	Y0314665		Runner Storage Dwr-rh		Appelez-nous	-
25	Y0076357		Rivet, Pop		Appelez-nous	-
NI	0062614		Insulation,door-sub Backer		Appelez-nous	-
NI	Y0309434		Label, Cleaning Caution Fr/eng		Appelez-nous	-
NI	W11245710		Screw, No.8-18 X 3/8 P Trs Hd Lp   (Replaces: 31750410)			Immediately	$ 12.65
