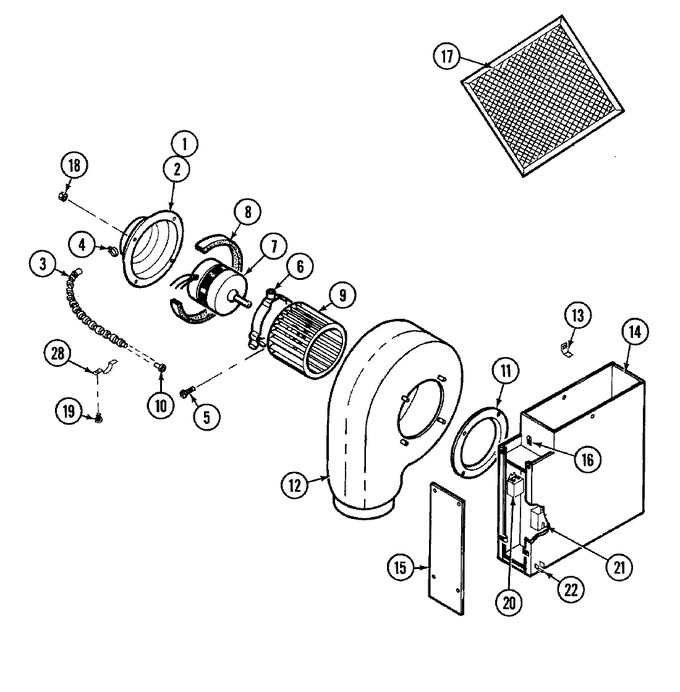

01 - Blower Motor
02 - Burner Assembly
03 - Control Panel
04 - Top Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DE81-03521A | Motor Cover Assembly (Replaces: 700027) | 10 |
|
$ 208.41 | ||||
| 2 | Y704968 | Cover, Motor | 11 |
|
- | ||||
| 2 | 708863 | Cover,motor | 10 |
|
- | ||||
| 3 | 712617 | Conduit | 11 |
|
- | ||||
| 3 | Y707758 | Conduit | 10 |
|
- | ||||
| 4 | Y707335 | Clip | 10 |
|
- | ||||
| 4 | 707766 | Connector | 10 |
|
- | ||||
| 4 | 707161 | Nut | 10 |
|
- | ||||
| 4 | 715780 | Clamp, Cable | 10 |
|
- | ||||
| 5 | Y707402 | Screw | 10 |
|
- | ||||
| 6 | WP71003558 | Isolator (Replaces: Y708926) | 10 |
|
$ 11.47 | ||||
| 6 | 707407 | Screw | 10 |
|
$ 6.42 | ||||
| 6 | Y707393 | Band, Motor | 10 |
|
- | ||||
| 7 | 707704K | Motor (Replaces: Y707704) | 10 |
|
Immediately | $ 352.01 | |||
| 8 | Y715957 | Foam, Urethane | 10 |
|
- | ||||
| 9 | WPY707985 | Wheel, Blower (Replaces: Y707985) | 10 |
|
Immediately | $ 145.55 | |||
| 10 | 708185 | Bushing | 10 |
|
- | ||||
| 11 | Y704758 | Ring, Inlet | 11 |
|
- | ||||
| 11 | Y702296 | Adapter, Restrictor Ring | 10 |
|
- | ||||
| 11 | 702889 | Locknut Cap, W/nylon Insert | 10 |
|
- | ||||
| 12 | Y704761 | Ring, Restrictor | 11 |
|
- | ||||
| 12 | 712008 | Scroll, Blower Assy. | 10 |
|
- | ||||
| 12 | Y704762 | Retainer | 11 |
|
- | ||||
| 13 | Y707688 | Retainer, Filter | 10 |
|
- | ||||
| 13 | WP59002061 | Screw (Replaces: Y707172) | 10 |
|
$ 6.98 | ||||
| 14 | 704548 | Cord, Power | 10 |
|
- | ||||
| 14 | 704514 | Wire, Green | 10 |
|
- | ||||
| 14 | 704554 | Relief, Strain | 10 |
|
- | ||||
| 14 | WP71001171 | Screw (Replaces: Y707745) | 10 |
|
$ 6.26 | ||||
| 14 | W11233072 | Screw (Replaces: Y708733) | 10 |
|
Immediately | $ 12.62 | |||
| 14 | 712312 | Plenum | 10 |
|
- | ||||
| 15 | 704547 | Plate, Cover | 10 |
|
- | ||||
| 16 | Y707831 | Clip | 10 |
|
- | ||||
| 16 | Y700834 | Clip | 11 |
|
- | ||||
| 17 | WP71001171 | Screw (Replaces: Y701379) | 10 |
|
$ 6.26 | ||||
| 17 | WP707929 | Filter, Grease (Replaces: 707929) | 10 |
|
Immediately | $ 44.51 | |||
| 18 | WPY707702 | Locknut (Replaces: Y707702) | 10 |
|
Immediately | $ 6.26 | |||
| 18 | 712310 | Tinnerman | 10 |
|
- | ||||
| 19 | WPA0317601 | Nut, Crimp (for Wires) (Replaces: Y702029) | 10 |
|
$ 7.48 | ||||
| 19 | WP71001171 | Screw (Replaces: Y701379) | 10 |
|
$ 6.26 | ||||
| 20 | WP59002061 | Screw (Replaces: Y707172) | 10 |
|
$ 6.98 | ||||
| 20 | Y700556 | Clip, J | 10 |
|
- | ||||
| 20 | Y704423 | Clip, J | 11 |
|
- | ||||
| 20 | Y704541 | Relay | 10 |
|
- | ||||
| 21 | WPW10068250 | Screw (Replaces: Y700582) | 10 |
|
$ 3.66 | ||||
| 21 | WP488130 | Nut (Replaces: Y701396) | 10 |
|
$ 6.27 | ||||
| 21 | Y704540 | Module, Spark | 10 |
|
- | ||||
| 22 | 704542 | Plug, Male Load | 10 |
|
- | ||||
| 22 | 694556 | Wire, Harness | 11 |
|
- |
