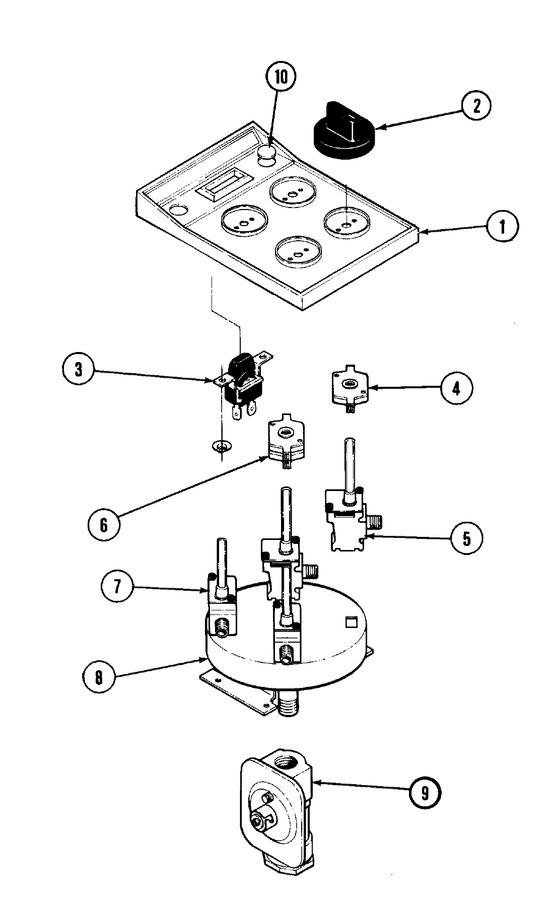

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 704906 | Escutcheon | 10 |
|
- | ||||
| 2 | Y704843 | Knob, Gas Valve | 10 |
|
$ 51.96 | ||||
| 3 | DE81-10045A | Switch, Fan (Replaces: 703664) | 10 |
|
$ 330.36 | ||||
| 4 | WPY704512 | Switch, Valve (rt) (Replaces: Y704512) | 10 |
|
$ 98.02 | ||||
| 5 | Y704893 | Valve (rt) | 10 |
|
- | ||||
| 6 | WPY704513 | Switch, Valve (lt) (Replaces: Y704513) | 10 |
|
$ 98.42 | ||||
| 7 | 704894 | Valve (lt) | 10 |
|
- | ||||
| 8 | 712483 | Manifold | 10 |
|
- | ||||
| 8 | 704556 | Harness, Wire | 10 |
|
$ 26.15 | ||||
| 9 | Y705023 | Palnut | 11 |
|
- | ||||
| 9 | W11106948 | Regulator, Pressure (Replaces: Y704545) | 10 |
|
Immediately | $ 215.01 | |||
| 9 | 7103P166-60 | Palnut (Replaces: 715500) | 10 |
|
$ 15.91 | ||||
| 10 | 704892 | Plug, Button | 10 |
|
- |
