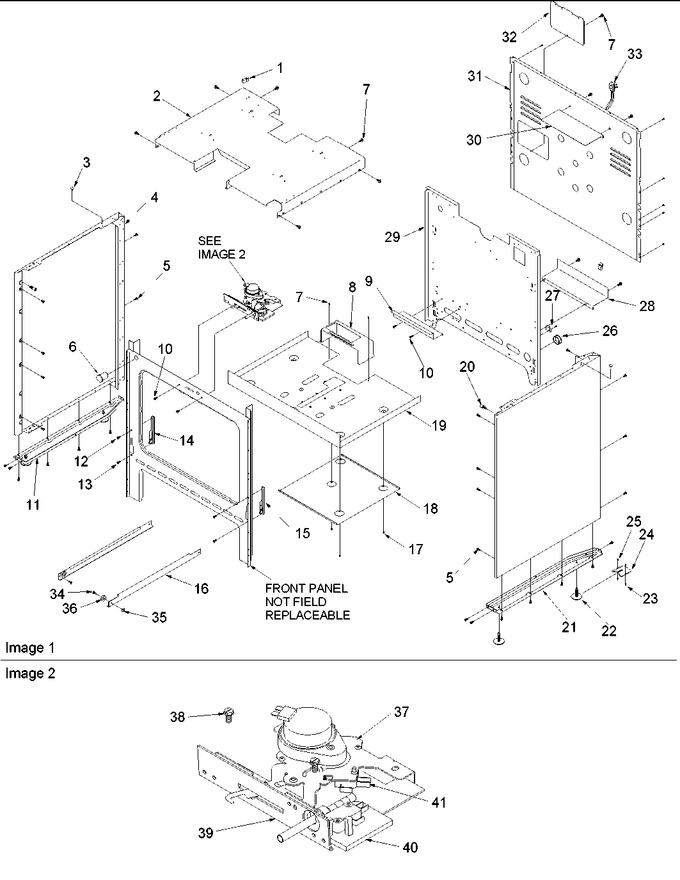

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0091587		Cable, Clip Esm		Appelez-nous	-
2	31730801		Retainer, Top Insul		Appelez-nous	-
3	31717001		Spacer, Snap-in		Appelez-nous	-
4	31825105C		Panel, Side (bsq)		Appelez-nous	-
5	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: 31750701)			Immediately	$ 12.65
6	Y0315328		Plug, Button (3/4``-blk)		Appelez-nous	-
7	WP693995		Screw, No.8-18 X 3/8 P Hex Wsh T   (Replaces: 31750432)			Immediately	$ 6.47
8	Y0302498		Cover, Ig/bake Burner		Appelez-nous	-
9	31782401		Wire Raceway		Appelez-nous	-
10	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: 31750701)			Immediately	$ 12.65
11	31854501		Brace, Leveling Leg (lt)		Appelez-nous	-
12	WP7101P126-60		Screw, No.10-12 X 500`` Ab (zn)   (Replaces: 31750507)			Immediately	$ 6.85
13	WP4159193		Screw, No.10-32 X 5/16 Pan Ph H   (Replaces: 31750521)				$ 4.29
14	31715201		Hinge, Oven Door (lt)		Appelez-nous	-
15	31715202		Hinge, Oven Door (rt)		Appelez-nous	-
16	31733201		Track, Mounting		Appelez-nous	-
17	31750719		Screw, No.8-18 X .500 Ab (blk)		Appelez-nous	-
18	0059596		Shield		Appelez-nous	-
19	31719301		Retainer, Bot Insul		Appelez-nous	-
20	31750709		Screw, Stud		Appelez-nous	-
21	31854502		Brace, Leveling Leg (rt)		Appelez-nous	-
22	314187B		Leg,leveling Xxx		Appelez-nous	-
23	Y0301555		Anchor, Plastic		Appelez-nous	-
24	31945201		Bracket, Anti Tip		Appelez-nous	-
25	31750412		Screw, No.8-18x5/8 P Rd Hd (blk)		Appelez-nous	-
26	308655B		Bushing, Snap (blk)		Appelez-nous	-
27	Y0074685		Wire Clamp, Insulated		Appelez-nous	-
28	Y0306827		Cover, Electrical		Appelez-nous	-
29	31733101		Retainer, Rear Insul		Appelez-nous	-
30	31791301		Shield, Krc Heat		Appelez-nous	-
31	Y0315888		Cover, Rear		Appelez-nous	-
32	31800001		Plate, Access		Appelez-nous	-
33	Y0306654		Power Cord		Appelez-nous	-
34	31750717		Bolt, Shoulder 10-32		Appelez-nous	-
35	M0282009		Nut   (Replaces: 31750128)				$ 12.06
36	31733401		Roller, Drawer				$ 5.75
37	31933401		Latch, Door		Appelez-nous	-
38	WP693995		Screw, No.8-18 X 3/8 P Hex Wsh T   (Replaces: 31750432)			Immediately	$ 6.47
39	31848301		Bracket, Latch Mounting		Appelez-nous	-
40	31933601		Switch, Plunger		Appelez-nous	-
41	31899201		Switch, Micro		Appelez-nous	-
NI	31970801		Anti-tip Pack		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
