SELECT A DIAGRAM

01 - Backguard And Gas Supply


02 - Cabinet


03 - Cavity

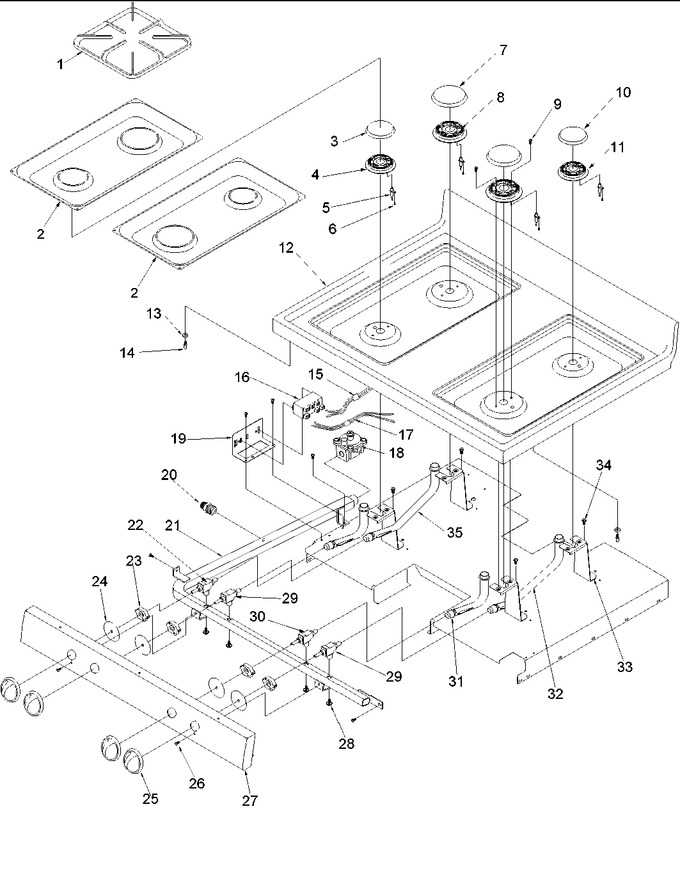

04 - Main Top


05 - Oven Door And Storage Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31719101MB		Grate, Single Cast-m.blk		Appelez-nous	-
2	315600C		Bowl, Burner-double (bsq)9/12k		Appelez-nous	-
3	WP8284669		Cap, Burner 5k (matte Blk)   (Replaces: 31782501MB)			Immediately	$ 64.79
4	Y0315769		Top Burner (small 5k)				$ 50.30
5	WPY0316773		Electrode, Spark Ignition   (Replaces: Y0316773)			Immediately	$ 37.13
6	Y0316775		Screw, Electrode		Appelez-nous	-
7	31782701MB		Cap, Burner 12/13k (matte Blk)				$ 35.43
8	Y0315767		Top Burner (large 12/13k)		Appelez-nous	-
9	WPY04100059		Screw, No.6-20 X .750 Pan Hd Ph   (Replaces: 31750320)				$ 6.96
10	31782601MB		Cap, Burner 9k (matte Blk)		Appelez-nous	-
11	WPY0315768		Top Burner (medium 9k)   (Replaces: Y0315768)				$ 128.48
12	315102C		Main Top, Gas(bisque)		Appelez-nous	-
13	Y0062445		Spacer, Nylon (.14``)		Appelez-nous	-
14	31750407		Screw, No.8-18 X 3/8 Pph (blk)		Appelez-nous	-
15	31941601		Harness, Ignition Wire 31``		Appelez-nous	-
16	0315154		Spark Module, 4+0		Appelez-nous	-
17	31941701		Harness, Ignition Wire 20``		Appelez-nous	-
18	Y0308866		Regulator, Pressure		Appelez-nous	-
19	Y0315097		Brkt, Spark Module		Appelez-nous	-
20	Y0301263		Fitting, 1/8``x 3/8``		Appelez-nous	-
21	Y0316219		Pipe, Manifold		Appelez-nous	-
22	Y0315960		Valve, Gas 270 Deg (5k Btu)		Appelez-nous	-
23	WPY0316572		Switch, Spark 270` Mini Vlv   (Replaces: Y0316572)				$ 104.05
24	Y0316741		Shield, Switch		Appelez-nous	-
25	31905427C		Knob,top Burner(bisque)		Appelez-nous	-
26	W11245710		Screw, No.8-18 X 3/8 P Trs Hd Lp   (Replaces: 31750410)			Immediately	$ 12.65
27	315989C		Manifold Panel,screened(bisque		Appelez-nous	-
28	31750712		Screw, Valve 2ax .415		Appelez-nous	-
29	Y0315962		Valve, Top 12k Btu		Appelez-nous	-
30	Y0315961		Valve, Gas 270 Deg				$ 109.15
31	31899401		Tube, Venturi-front		Appelez-nous	-
32	31899502		Tube, Venturi-right Rear		Appelez-nous	-
33	Y0316218		Brkt, Venturi Mtg		Appelez-nous	-
34	WP693995		Screw, No.8-18 X 3/8 P Hex Wsh T   (Replaces: 31750432)			Immediately	$ 6.47
35	31899501		Tube, Venturi-left Rear		Appelez-nous	-
NI	Y0316205		Wire Harness,manifold Switch		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
