SELECT A DIAGRAM

01 - Cover

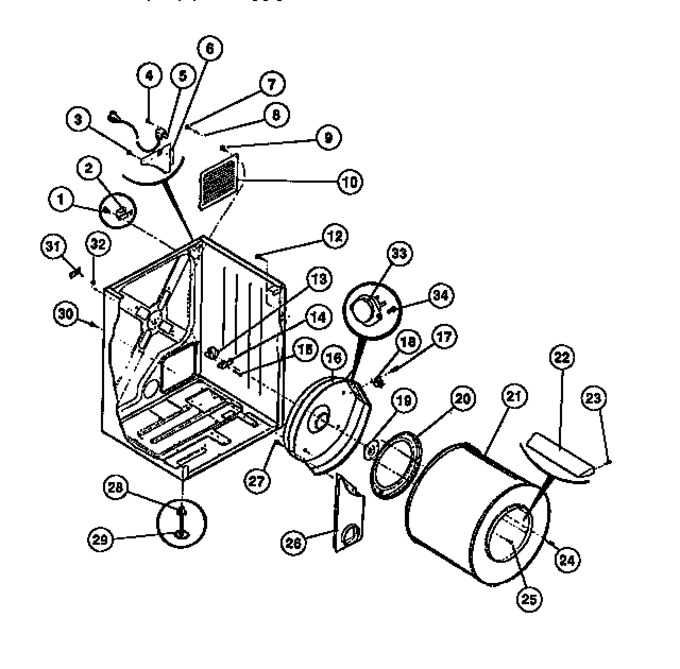

02 - Cabinet, Drum, Heat Duct


03 - Door, Front Panel, Lint Filter


04 - Console, Controls, Top Panel


05 - Motor, Fan Housing, Exhaust Duct


06 - Gas Valve, Burner Assembly, Senso


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	08011338		Screw (4)		Appelez-nous	-
2	3281175		Hinge (2)				$ 10.16
3	5303015671		Screw		Appelez-nous	-
4	5303015309		Screw		Appelez-nous	-
5	5303281129		Service Cord		Appelez-nous	-
6	3281130		Cover		Appelez-nous	-
7	3281106		Screw		Appelez-nous	-
8	3281107		Washer		Appelez-nous	-
9	5303281035		Screw (2)		Appelez-nous	-
10	5303281018		Cover Plate		Appelez-nous	-
12	5303010202		Screw (4)				$ 5.15
13	131825900		Bearing (parts Contained In Rear Bearing Kit.)   (Replaces: 5303281008)			Immediately	$ 10.97
14	131724301		Bracket-bearing Support (parts Contained In Rear Bearing   (Replaces: 5303281023)			Immediately	$ 25.66
15	5303281033		Screw (2) (parts Contained In Rear Bearing Kit.)		Appelez-nous	-
16	3205699		Heater Hsg And Seal Assy		Appelez-nous	-
17	3281120		Screw (2)		Appelez-nous	-
18	5303272046		Thermostat - Safety		Appelez-nous	-
19	5303281153		Shaft--(parts Contained In Rear Bearing Kit.)   (Replaces: 5303281009)			Immediately	$ 46.64
20	3204254		Baffle				$ 129.00
21	3201199		Drum				$ 246.86
22	137552900		Vane (3)   (Replaces: 5303201200)				$ 54.95
23	131382300		Screw (6)   (Replaces: 3202754)			Immediately	$ 13.46
24	5303207393		Scrw (3)				$ 6.14
25	5303205255		Screw (3)--(parts Contained In Rear Bearing Kit.)				$ 5.04
26	3281123		Heat Duct Assy		Appelez-nous	-
27	5303281035		Screw (3)		Appelez-nous	-
28	3201202		Grommet (4)				$ 22.47
29	5303281032		Foot Bolt (4)		Appelez-nous	-
30	5303010202		Screw (4)				$ 5.15
31	5303281020		Nut-flat (parts Contained In Rear Bearing Kit.)				$ 17.01
32	3281019		Ball (parts Contained In Rear Bearing Kit.)		Appelez-nous	-
33	134120900		Thermal Limiter   (Replaces: 5303209192)			Immediately	$ 13.21
34	0801084		Screw		Appelez-nous	-
34	3281153		Rear Bearing Kit (ni)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
