Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3201322 Backsheet Appelez-nous -
2 5303015671 Screw (4) Appelez-nous -
7 5303279279 Bracket-control Appelez-nous -
8 5303279276 Panel-control Appelez-nous -
12 5303270198 End Cap-lh Appelez-nous -
13 5308014350 Clip-end Cap (8) Appelez-nous -
15 5303279349 Trimplate-lower Appelez-nous -
17 5303279341 Screw (3) Appelez-nous -
18 5303279343 Screw Appelez-nous -
22 5303270200 End Cap-rh Appelez-nous -
24 5303279365 Control-dryer Appelez-nous -
25 5303161233 Screw Appelez-nous -
26 08010789 Screw Appelez-nous -
28 3201385 Ground Wire Appelez-nous -
31 5303279370 Harness Appelez-nous -
31 5303281103 Wire, Tee (ni) Appelez-nous -
32 5379171000 Terminal Appelez-nous -
33 08001689 Screw Appelez-nous -
34 08014349 Ground Strap Appelez-nous -
36 5303273261 Panel-top-white Appelez-nous -
37 5300503065 Nut Special Order $ 6.09

38 3205821 Spring Catch In-Stock Immediately $ 35.44


    View Diagram in Separate Window     Print Icon   Print Part List

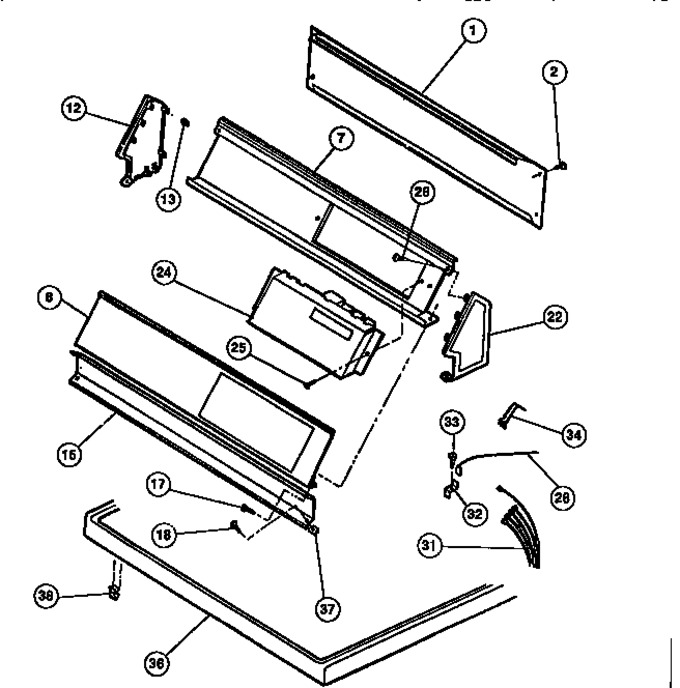

Diagram for DG8800PW1
