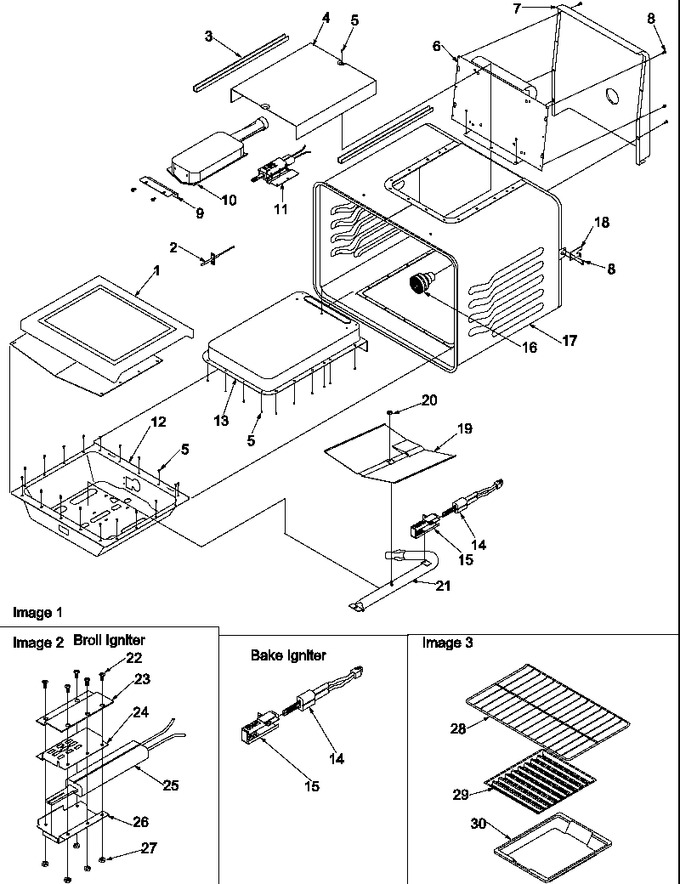

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	58625CG		Oven Bottom		Appelez-nous	-
2	WPY0314907		Sensor, Temperature   (Replaces: Y0314907)				$ 201.45
3	Y0304019		Channel, Broil Burner		Appelez-nous	-
4	Y0309733		Heat Shield, Broil		Appelez-nous	-
5	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: 31750701)			Immediately	$ 12.65
6	316008CG		Ass`y, Flue Weld-finished		Appelez-nous	-
7	316009B		Flue, Dilution (blk)		Appelez-nous	-
8	WP693995		Screw, No.8-18 X 3/8 P Hex Wsh T   (Replaces: 31750432)			Immediately	$ 6.47
9	Y0060687		Bracket, Mtg. Br. Support		Appelez-nous	-
10	Y0060691		Assy, Br. Burner		Appelez-nous	-
11	786324		Assy, Broil Ignitor   (Replaces: Y0308103)			Immediately	$ 60.68
12	Y0063802		Burner Box, Lower		Appelez-nous	-
13	0306651		Weldm`t, Broil Chamber		Appelez-nous	-
14	WP31940001		Ignitor, Bake   (Replaces: Y0316223)				$ 160.98
15	Y0063757		Bracket, Igniter Mounting		Appelez-nous	-
16	WP74011278		Assy, Oven Light   (Replaces: Y0314842)				$ 101.56
17	303465CG		Oven Shell (gas W/lt)		Appelez-nous	-
18	Y0058852		Bracket, Oven Cavity		Appelez-nous	-
21	Y00000000		See Note See Note Burner, Oven -- (see Pages 16 & 17)		Appelez-nous	-
22	31750308		Screw, No.6-32 X .375 Panhd(blk)		Appelez-nous	-
23	Y0303112		Bracket Ignitor Mtg		Appelez-nous	-
24	0063781		Shield, Top Igniter		Appelez-nous	-
25	786324		Ignitor   (Replaces: Y0309145)			Immediately	$ 60.68
26	Y0308104		Ignitor Shield-bottom		Appelez-nous	-
27	M0282005		Nut, Hex .562   (Replaces: 31750113)				$ 7.07
28	WP314763J		Rack,oven 22 27/32`` X 15 7/16``   (Replaces: 314763J)				$ 70.11
29	4396923		Grid, Broiler (cg)   (Replaces: 304451CG)			Immediately	$ 52.04
30	4396923		Pan, Broiler (cg)   (Replaces: 314175CG)			Immediately	$ 52.04
NI	31750506		Screw, No.10-16x3/8 (trs Ph Hd)		Appelez-nous	-
NI	Y0062947		Sub 41966, Insulation		Appelez-nous	-
NI	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: 31750701)			Immediately	$ 12.65
NI	Y0065084		Wire Connector		Appelez-nous	-
NI	Y0042175		Bulb, Light		Appelez-nous	-
NI	Y0062945		Sub 41966, Insulation		Appelez-nous	-
