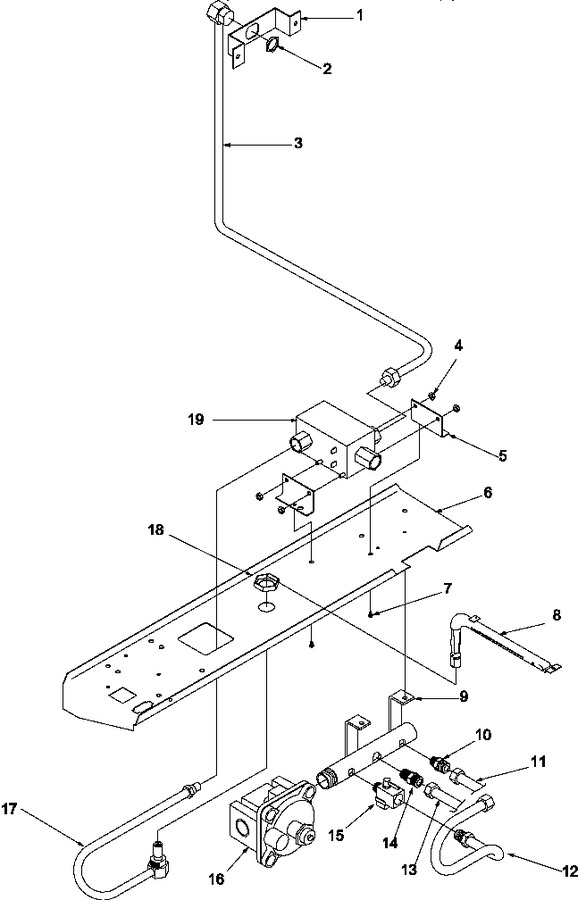

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0315018		Brkt, Broil Orifice		Appelez-nous	-
2	31750116		Nut, Pal 3/4-16 X 1.062		Appelez-nous	-
3	Y0306593		Assy, Orifice & Tubing		Appelez-nous	-
4	WP488130		Nut, Hex Keps No.8-32   (Replaces: 31750118)				$ 6.27
5	0053182		Bracket, Gas Valve		Appelez-nous	-
6	0307065		Shelf, Gas Valve		Appelez-nous	-
7	31750308		Screw, No.6-32 X .375 Panhd(blk)		Appelez-nous	-
8	Y0063709		Oven Burner		Appelez-nous	-
9	0303247		Inlet Pipe		Appelez-nous	-
10	Y0303219		Fitting 1/4 Npt X 3/8 Comp		Appelez-nous	-
11	Y0316899		Assy, Tubing/nut 70``		Appelez-nous	-
12	Y0300684		Tubing, Inlet To Gas Valve		Appelez-nous	-
13	0316900		Tubing, Inlet Manifold Lt		Appelez-nous	-
14	Y0301263		Fitting, 1/8``x 3/8``		Appelez-nous	-
15	Y0301361		Valve, Shut-off		Appelez-nous	-
16	0042303		Regulator		Appelez-nous	-
17	Y0300685		Tubing, Oven Burner		Appelez-nous	-
18	M0282005		Nut, Hex .562   (Replaces: 31750113)				$ 7.07
19	Y0300664		Valve, Gas		Appelez-nous	-
NI	Y0063061		Orifice, No.58 Lp		Appelez-nous	-
NI	Y0060043		Orifice, No.52 Nat		Appelez-nous	-
