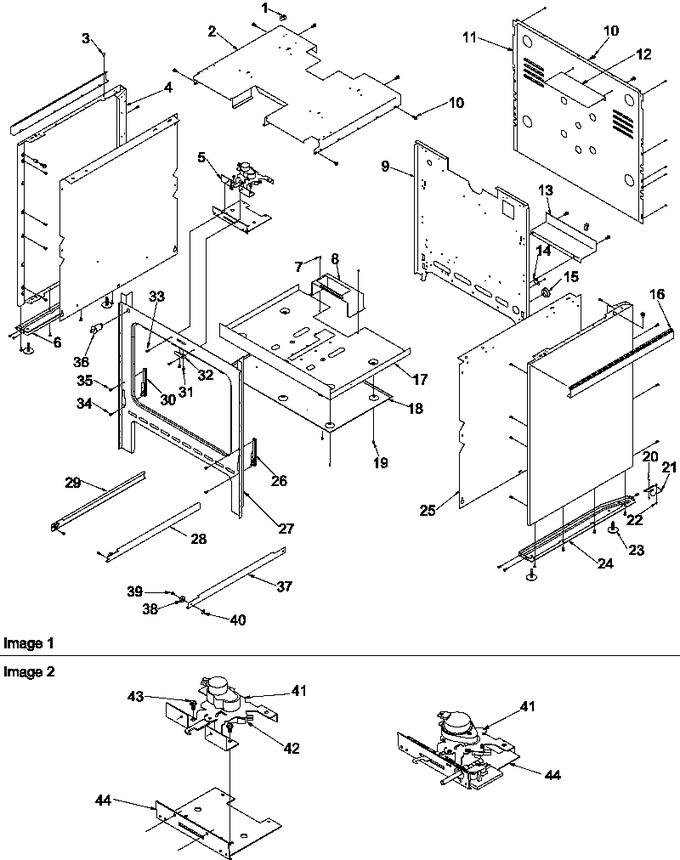

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0091587		Cable, Clip Esm		Appelez-nous	-
2	31730801		Retainer, Top Insul		Appelez-nous	-
3	31717001		Spacer, Snap-in		Appelez-nous	-
4	31825102B		Panel, Side (blk)		Appelez-nous	-
5	Y00000000		See Note See Note Latch,oven Door(see Image 2)		Appelez-nous	-
6	Y0314882		Leveling Leg\bottom Brace Lt		Appelez-nous	-
7	WP693995		Screw, No.8-18 X 3/8 P Hex Wsh T   (Replaces: 31750432)			Immediately	$ 6.47
8	Y0302498		Cover, Ig/bake Burner		Appelez-nous	-
9	31733101		Retainer, Rear Insul		Appelez-nous	-
10	WP693995		Screw, No.8-18 X 3/8 P Hex Wsh T   (Replaces: 31750432)			Immediately	$ 6.47
11	Y0300026		Cover Plate, Rear		Appelez-nous	-
12	Y0316853		Shield, Erc		Appelez-nous	-
13	Y0306827		Cover, Electrical		Appelez-nous	-
14	Y0074685		Wire Clamp, Insulated		Appelez-nous	-
15	308655B		Bushing, Snap (blk)		Appelez-nous	-
16	316325B		Filler Strip (blk)		Appelez-nous	-
17	Y0308317		Insul, Ret.-bottom		Appelez-nous	-
18	Y0315146		Shield, Heat		Appelez-nous	-
19	WP7101P126-60		Screw, No.10-12 X 500`` Ab (zn)   (Replaces: 31750507)			Immediately	$ 6.85
20	31750412		Screw, No.8-18x5/8 P Rd Hd (blk)		Appelez-nous	-
21	Y0315560		Brkt, Range Anti-tip		Appelez-nous	-
22	Y0301555		Anchor, Plastic		Appelez-nous	-
23	314187B		Leg,leveling Xxx		Appelez-nous	-
24	Y0314883		Leveling Leg\bottom Brace Rt		Appelez-nous	-
25	0304282		Retainer, Insulation (side)		Appelez-nous	-
26	31715202		Hinge, Oven Door (rt)		Appelez-nous	-
27	Y00000000		See Note See Note Front Frame-short(not Field Replacable)		Appelez-nous	-
30	31715201		Hinge, Oven Door (lt)		Appelez-nous	-
31	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: 31750701)			Immediately	$ 12.65
32	Y0315022		Cover, Chip		Appelez-nous	-
33	31750719		Screw, No.8-18 X .500 Ab (blk)		Appelez-nous	-
34	WP4159193		Screw, No.10-32 X 5/16 Pan Ph H   (Replaces: 31750521)				$ 4.29
35	WP7101P126-60		Screw, No.10-12 X 500`` Ab (zn)   (Replaces: 31750507)			Immediately	$ 6.85
36	Y0316882		Switch- Oven Door		Appelez-nous	-
37	31733201		Track, Mounting		Appelez-nous	-
38	31733401		Roller, Drawer				$ 5.75
39	31750717		Bolt, Shoulder 10-32		Appelez-nous	-
40	WP3400029		Nut, Hex Keps No.10-32   (Replaces: 31750103)			Immediately	$ 6.98
41	Y0316541		Latch, Auto		Appelez-nous	-
42	0316767		Switch		Appelez-nous	-
43	WP693995		Screw, No.8-18 X 3/8 P Hex Wsh T   (Replaces: 31750432)			Immediately	$ 6.47
44	31848301		Bracket, Latch Mounting		Appelez-nous	-
NI	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: 31750701)			Immediately	$ 12.65
NI	Y0306654		Power Cord		Appelez-nous	-
