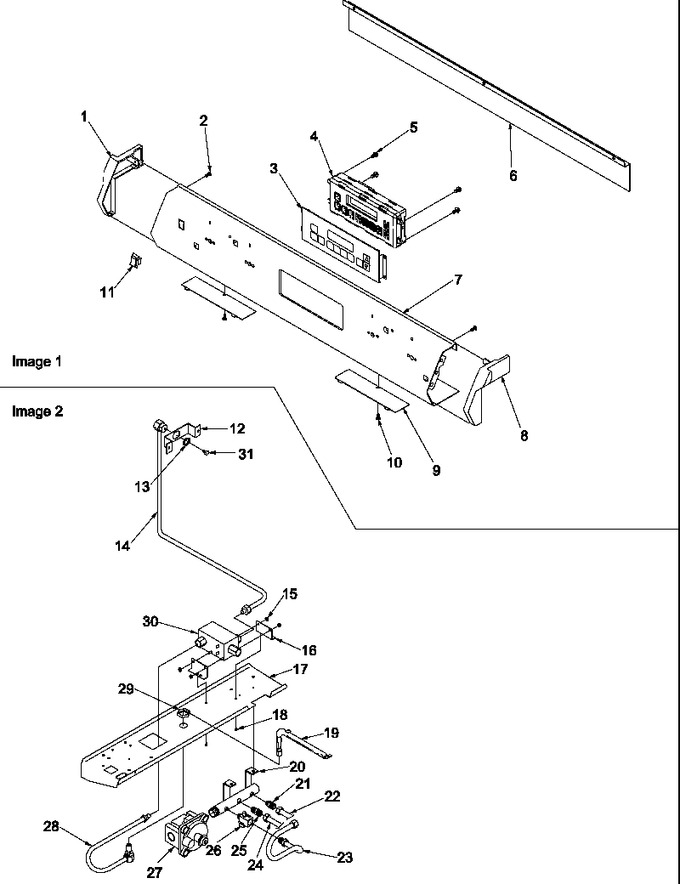

ARGS7650E (BOM: P1130759N E) | TransGlobal : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	31742701B	End Cap, Cont Pnl (lt-blk)	Appelez-nous	-
2	31750315	Screw, No.6-20 X .375 Panhd(blk)	Appelez-nous	-
3	315851B	Overlay, Mylar Erc (blk)	Appelez-nous	-
4	Y0315569	Erc3 (gas)	Appelez-nous	-
5	WP74004005	Screw, No.6-32 X .312 Panhd(blk) (Replaces: 31750310)			$ 6.95
6	Y0061537	Shield	Appelez-nous	-
7	316653B	Panel, Control (blk)	Appelez-nous	-
8	31742704B	End Cap, Cont Pnl (rt-blk)	Appelez-nous	-
9	316487B	Access Cover, Man Pnl	Appelez-nous	-
10	W11245710	Screw, No.8-18 X 3/8 P Trs Hd Lp (Replaces: 31750410)		Immediately	$ 12.65
11	Y0063997	Switch, Rocker	Appelez-nous	-
12	Y0315018	Brkt, Broil Orifice	Appelez-nous	-
13	31750116	Nut, Pal 3/4-16 X 1.062	Appelez-nous	-
14	Y0306593	Assy, Orifice & Tubing	Appelez-nous	-
15	WP488130	Nut, Hex Keps No.8-32 (Replaces: 31750118)			$ 6.27
16	0053182	Bracket, Gas Valve	Appelez-nous	-
17	0307065	Shelf, Gas Valve	Appelez-nous	-
18	31750308	Screw, No.6-32 X .375 Panhd(blk)	Appelez-nous	-
19	31716501	Burner, Oven	Appelez-nous	-
20	0303247	Inlet Pipe	Appelez-nous	-
21	Y0303219	Fitting 1/4 Npt X 3/8 Comp	Appelez-nous	-
22	31770001	Tubing, Inlet To Manifold Rt	Appelez-nous	-
23	Y0300684	Tubing, Inlet To Gas Valve	Appelez-nous	-
24	0316900	Tubing, Inlet Manifold Lt	Appelez-nous	-
25	Y0301263	Fitting, 1/8``x 3/8``	Appelez-nous	-
26	Y0301361	Valve, Shut-off	Appelez-nous	-
27	0042303	Regulator	Appelez-nous	-
28	Y0300685	Tubing, Oven Burner	Appelez-nous	-
29	31750116	Nut, Pal 3/4-16 X 1.062	Appelez-nous	-
30	Y0300664	Valve, Gas	Appelez-nous	-
31	31864801	Orifice, No.52 Nat	Appelez-nous	-
31	31864901	Orifice, No.58 Lp			$ 25.98
NI	W11245710	Screw, No.8-18 X 3/8 P Trs Hd Lp (Replaces: 31750410)		Immediately	$ 12.65
NI	31750315	Screw, No.6-20 X .375 Panhd(blk)	Appelez-nous	-
