SELECT A DIAGRAM
02 - Body Parts
03 - Backguard
04 - Cooktop Parts
05 - Burner, Manifold And Gas Control
06 - Door Parts
07 - Broiler Drawer Parts
SELECT A DIAGRAM
New Model Search:

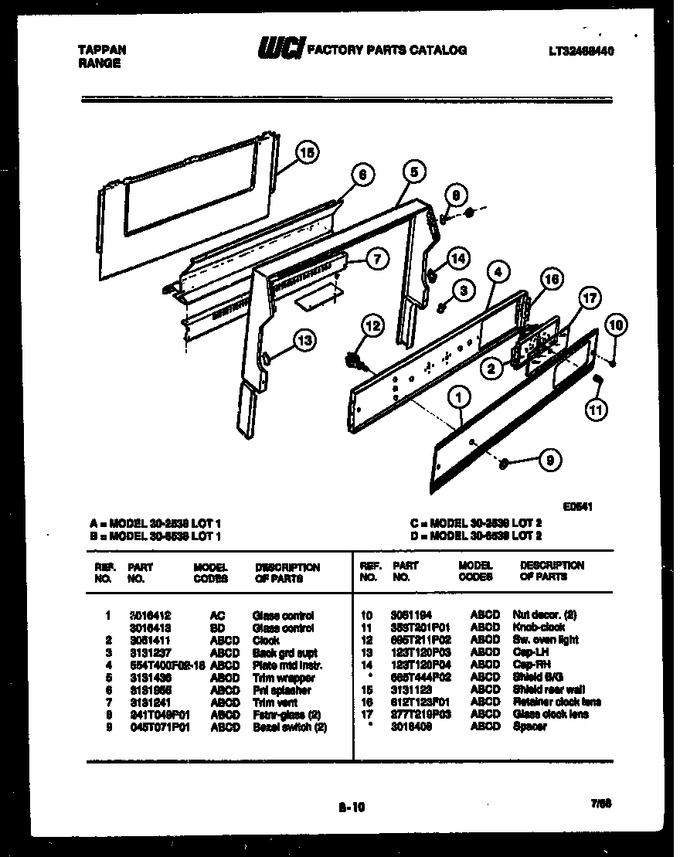

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3016413 | Glass Control |
|
- | |||||
| 2 | 3051411 | Clock |
|
- | |||||
| 3 | 3131237 | Back Grd Supt |
|
- | |||||
| 4 | 554T400F02-18 | Plate Mtd Instr. |
|
- | |||||
| 5 | 3131436 | Trim Wrapper |
|
- | |||||
| 6 | 3131955 | Pnl Splasher |
|
- | |||||
| 7 | 3131241 | Trim-vent |
|
- | |||||
| 8 | 241T049P01 | Fstnr-glass(2) |
|
- | |||||
| 9 | 045T071P01 | Bezel, Switch |
|
- | |||||
| 10 | 3051194 | Nut - Decor (2) |
|
- | |||||
| 11 | 358T201P01 | Knob, Clock |
|
- | |||||
| 12 | 695T211P02 | Sw. Oven Light |
|
- | |||||
| 13 | 123T120P03 | Cap Lh |
|
- | |||||
| 14 | 123T120P04 | Cap Rh |
|
- | |||||
| 15 | 3131123 | Shield, Rear Wall |
|
- | |||||
| 16 | 612T123F01 | Retainer-clock Lens |
|
- | |||||
| 17 | 277T219P03 | Glass-clock Lens |
|
- | |||||
| *15534 | 3016408 | Spacer |
|
- | |||||
| 14A | 665T444P02 | Shield B/g (non-illustrated) |
|
- |
