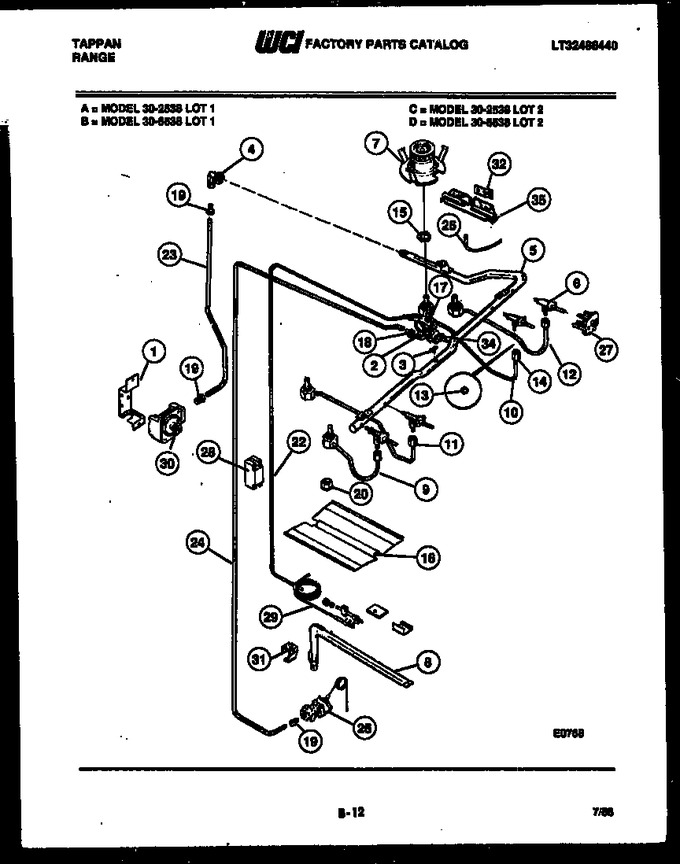

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	072T850F01		Bracket, Regulator		Appelez-nous	-
2	722T073P01		Thermostat		Appelez-nous	-
3	003T039P01		Adapter, Thermostat		Appelez-nous	-
4	215T013P01		Elbow		Appelez-nous	-
5	439T055P07		Manifold Pipe		Appelez-nous	-
6	774T135P01		Valve-3 Pos. (4)		Appelez-nous	-
7	079T032S02		Burner, Top		Appelez-nous	-
8	3131571		Burner, Oven		Appelez-nous	-
9	079T033H01		Burner Tube (lf)		Appelez-nous	-
10	079T033H02		Burner, Tube		Appelez-nous	-
11	079T033H03		Burner Tube, Left Rear		Appelez-nous	-
12	079T033H04		Burner, Tube, Right Front		Appelez-nous	-
13	247T074P01		Ferrule (4)		Appelez-nous	-
14	3131148		Nut Compressn (4)		Appelez-nous	-
15	479T069P40		Nut, Special (4)		Appelez-nous	-
16	3131327		Baffle, Oven		Appelez-nous	-
17	3131404		Fitting, Loxit		Appelez-nous	-
18	3131403		Fitting, Loxit		Appelez-nous	-
19	3131261		Fitting, Loxit		Appelez-nous	-
20	479T069P03		Nut, Baffle		Appelez-nous	-
21	549T037P01		Pilot, Oven		Appelez-nous	-
22	750T056P21		Tube Ovn Pilot 3/16		Appelez-nous	-
23	750T085H09		Tube Alum 3/8		Appelez-nous	-
24	750T085H13		Tube Alum. 3.8		Appelez-nous	-
25	3131405		Valve-safety		Appelez-nous	-
26	316T034P02		Igniter-elec.		Appelez-nous	-
27	3131568		Switch Ign. (4)		Appelez-nous	-
28	3131330		Igniter, Module		Appelez-nous	-
29	316T039P03		Igniter-elec.		Appelez-nous	-
30	166T013P01		Control Regul.		Appelez-nous	-
31	072T821F01		Bracket, Oven Burner Support		Appelez-nous	-
32	612T121F01		Retainer Ign.		Appelez-nous	-
33	174T297F01		Cover, Igniter		Appelez-nous	-
34	695T220P01		Ovn Igniter Switch		Appelez-nous	-
35	136T355W03		Channel, Flash Tube		Appelez-nous	-
*15538	3051420		Rivet		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
