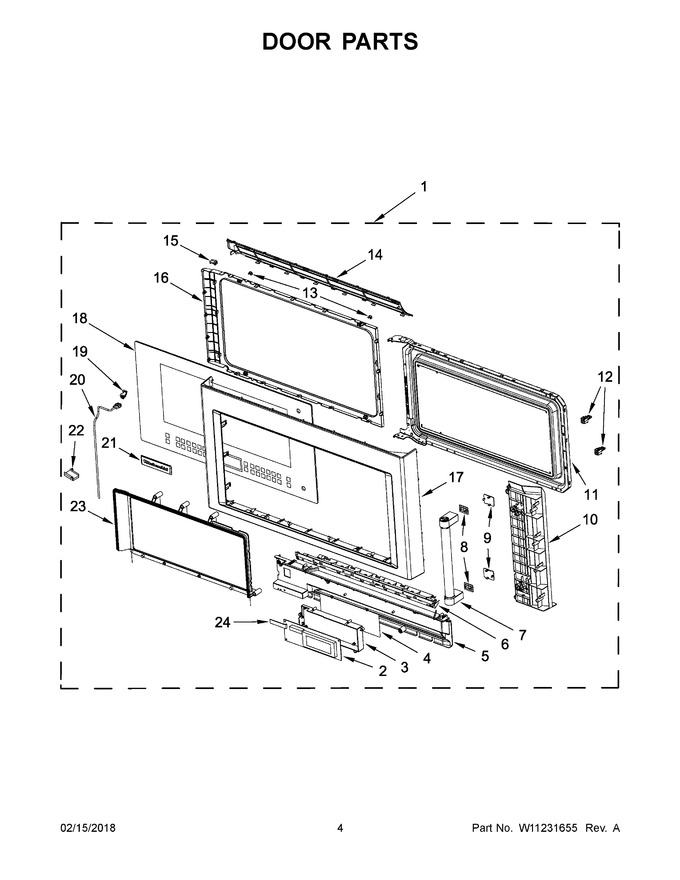

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11205123		Door, Complete (stainless)   (Replaces: W10893429)				$ 549.80
2	W11202854		Pcba, User Interface   (Replaces: W10832518)				$ 246.65
3	W10770970		Holder, Ui		Appelez-nous	-
4	W10540298		Plate, Ui Insulation		Appelez-nous	-
5	W10617743		Cover, Ui		Appelez-nous	-
6	W10476546		Bracket, Door		Appelez-nous	-
7	W10604264		Assembly, Handle				$ 251.50
8	W11590575		Cushion, Handle   (Replaces: W10540736)				$ 20.22
9	W10478657		Cover, Screw (black)			Immediately	$ 19.25
10	W11699920		Bracket, Outer Door (black)   (Replaces: W10734943)				$ 73.87
11	W11045518		Body, Door (with Glass)   (Replaces: W10891969)				$ 211.76
12	W10740455		Hook, Door			Immediately	$ 48.17
13	W10542546		Cover, Screw				$ 76.13
14	W10476550		Frame, Back Decorating (black)		Appelez-nous	-
15	W10643448		Stopper, Door				$ 19.76
16	W10897612		Frame, Inner				$ 127.74
17	W10688550		Assembly, Door Frame (stainless)				$ 380.16
18	W10861345		Glass, Door				$ 302.19
19	W10770972		Holder, Door Cable		Appelez-nous	-
20	W10508745		Wire, Door Control Cable				$ 24.86
21	W10909682		Badge (stainless)   (Replaces: W10518673)			Immediately	$ 65.31
22	W10770971		Bracket, Door Cable		Appelez-nous	-
23	W10478647		Plate, Steam Protection				$ 82.94
24	W10509362		Cable, Touch Sensor		Appelez-nous	-
