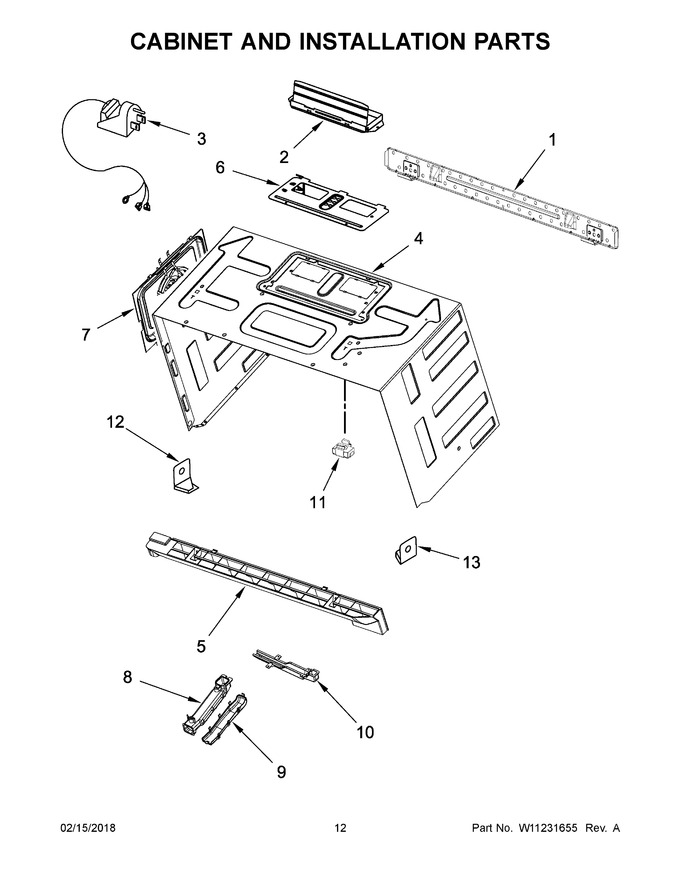

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11025649		Plate, Mounting			Immediately	$ 21.16
2	W10843943		Damper   (Replaces: W10748710)			Immediately	$ 65.74
3	W10708076		Cord, Power				$ 18.48
4	W10818229		Case, Outer (black)   (Replaces: W10571408)				$ 228.66
5	W10701701		Grille, Vent (black)				$ 71.01
6	W10625423		Cover, Fan Motor				$ 69.87
7	WPW10571554		Assembly, Convection Motor And Fan   (Replaces: W10571554)				$ 274.88
8	W10740434		Duct, Cooling (upper)		Appelez-nous	-
9	W10533489		Duct, Cooling (bottom)		Appelez-nous	-
10	W10570212		Air Duct, Turntable Motor		Appelez-nous	-
11	W10596040		Assembly, Mounting Nut			Immediately	$ 8.30
12	W10830163		Vent Holder, Left (black)   (Replaces: W10703285)				$ 12.18
13	W10810989		Vent Holder, Right (black)   (Replaces: W10703283)				$ 8.76
NI	W10508746		Miscellaneous Parts, Harness, Smart Pop		Appelez-nous	-
NI	W10834330		Miscellaneous Parts, Harness, Main				$ 127.47
NI	W11302286		Miscellaneous Parts, Harness, Turntable Motor And Lamp   (Replaces: W10834332)				$ 123.35
NI	W10539840		Miscellaneous Parts, Harness, Pcba Ground Wire				$ 21.50
NI	WP8169704		Miscellaneous Parts, 1/4-20x3" Panhead Screw   (Replaces: 8169704)			Immediately	$ 10.07
NI	W10508741		Miscellaneous Parts, Wire, Door Control Cable				$ 20.21
NI	W10190020		Miscellaneous Parts, Template, Upper (english & Spanish)				$ 56.21
NI	W10190018		Miscellaneous Parts, Template, Upper (english & French)			Immediately	$ 6.47
NI	W10821385		Miscellaneous Parts, Hardware, Installation			Immediately	$ 88.90
NI	W10892377		Insulation, Bottom		Appelez-nous	-
NI	W10571451		Insulation, Top		Appelez-nous	-
NI	W10571450		Insulation, Back		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
