SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel


03 - Microwave


04 - Lower Oven


05 - Doors


06 - Wiring Diagram


07 - Wiring Diagram

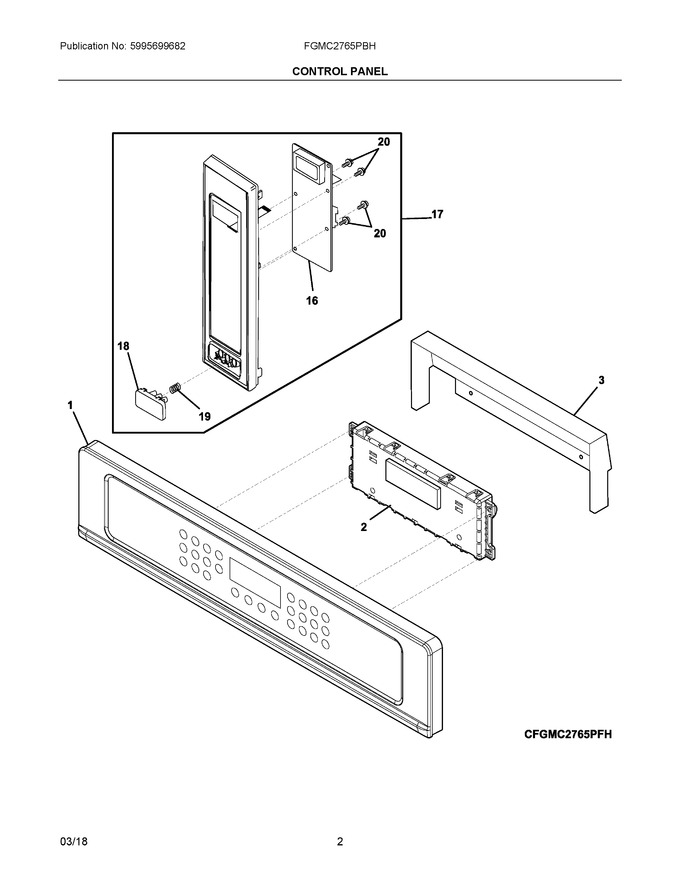

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	139038807		Control Panel Assembly, Steel/glass, Black, W/touch Pad		Appelez-nous	-
2	5304506982		Controller, Electronic, Es530w6		Appelez-nous	-
3	807586802		Deflector, Timer		Appelez-nous	-
16	5304516270		Control Board, Assembly, Microwave				$ 271.10
17	5304516271		Control Panel Assembly, Complete, Black		Appelez-nous	-
18	5304440827		Push Button, Door, Black		Appelez-nous	-
19	5304440831		Spring, Door Button				$ 20.29
20	5304456930		Screw, 3 Mm X 6 Mm		Appelez-nous	-
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NIA	5304453707		Screw, 8-18 X 1/2			Immediately	$ 15.92

    View Diagram in Separate Window       Print Part List
