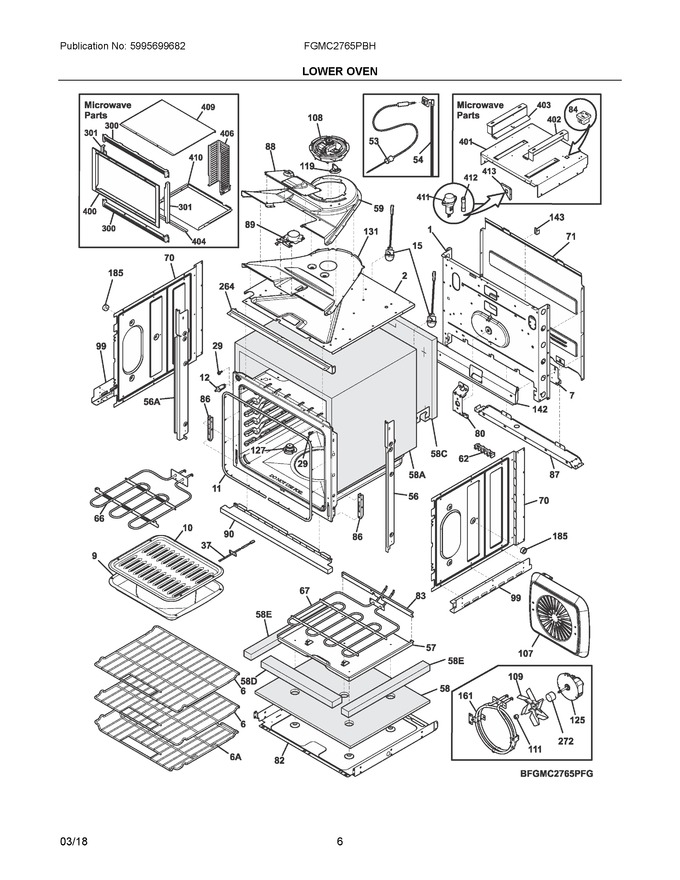

04 - Lower Oven


05 - Doors


06 - Wiring Diagram


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304506958		Panel, Main Back		Appelez-nous	-
2	139027804		Shield, Insulation, Top		Appelez-nous	-
6	139011901		Rack, Oven, W/handle   (Replaces: 139011700)				$ 36.24
7	5304506960		Panel, Service, Main Back		Appelez-nous	-
9	318138801		Pan, Broileroptional Access0ry		Appelez-nous	-
10	318126401		Insert, Broiler Panoptional Access0ry		Appelez-nous	-
11	807545501		Seal, Oven Door, Gray			Immediately	$ 81.39
12	808136601		Switch, Light, Door   (Replaces: 318394802)			Immediately	$ 44.04
15	5304528790		Lamp Assembly, Round, Halogen, W/lens, W/bulb   (Replaces: 139009000)			Immediately	$ 20.56
29	316517600		Bumper, Front, Main				$ 12.05
37	5304504897		Sensor, Oven Temp Probe			Immediately	$ 48.13
53	5304504202		Probe, Meat Temp, Red			Immediately	$ 106.19
54	139017203		Receptacle Assy, Meat Probe			Immediately	$ 153.09
56	318276352		Trim, Side Filler, Black, Rh		Appelez-nous	-
57	5304538692		Box, Bake Element   (Replaces: 5304506949)		Appelez-nous	-
58	5304506952		Insulation, Bake Element, Lower				$ 77.26
59	139027600		Duct, Cooling Fan, Upper				$ 85.76
62	5304409888		Terminal Block   (Replaces: 316056000)			Immediately	$ 26.69
66	5304523477		Element, Broil, 6 Pass, 3400w   (Replaces: 139028200)				$ 235.85
67	140010667149		Element, Hidden Bake, 2500w   (Replaces: 5304506946)				$ 55.23
70	139000601		Shield, Insulation, Sides, (2)				$ 72.05
71	139022000		Shield, Rear Wire, Main Back		Appelez-nous	-
80	139021101		Bracket, Support, Chassis/fan				$ 14.89
82	5304506947		Shield, Insulation, Lower		Appelez-nous	-
83	5304506951		Shield, Bake Element, Rear		Appelez-nous	-
84	5304511592		Outlet, Electrical, Miniature, Black, W/harness		Appelez-nous	-
86	318561100		Receptacle, Hinge, (2)				$ 21.23
87	139021900		Bracket, Cable Mtg.		Appelez-nous	-
88	5304506964		Cover, Latch Motor				$ 24.10
89	5304528835		Motor, Latch Assy., 2 Terminals   (Replaces: 139021303)			Immediately	$ 74.12
90	318259847		Trim, Base, Black				$ 131.83
99	318256201		Bracket, Side, Bottom, (2)				$ 56.70
107	139013903		Cover, Convection Fan				$ 46.86
108	318575612		Motor Assembly, Cooling Fan			Immediately	$ 196.61
109	318398302		Blade, Fan, Convection   (Replaces: 139009100)			Immediately	$ 29.11
111	316136600		Nut, Fan Retainer			Immediately	$ 19.13
119	318578506		Thermostat, Safety, 105c			Immediately	$ 58.19
125	139008502		Motor, Convection Fan				$ 139.48
127	5304538693		Tube Assembly, Vent, W/catalyst   (Replaces: 139042600)			Immediately	$ 10.03
131	139027700		Duct, Cooling Fan, Lower				$ 73.00
142	5304506953		Sheild, Air Deflector, Back		Appelez-nous	-
143	318172904		Support, Wire		Appelez-nous	-
161	8581390065036		Element, Convection, 2500w   (Replaces: 139006500)				$ 47.63
185	318531800		Spacer, Oven Shield, (2)				$ 12.76
264	139003501		Trim, Vent, Black, Front				$ 36.20
272	139021700		Tube, Convection Fan				$ 17.72
300	318925001		Trim, Microwave Frame, Black, Top/bottom				$ 81.17
301	318925103		Trim, Microwave Frame, Black, Sides, (2)		Appelez-nous	-
400	318930306		Frame, Microwave, Black		Appelez-nous	-
401	807051002		Plate, Support, 27", Microwave		Appelez-nous	-
402	5304505859		Support, Basepad, Rh		Appelez-nous	-
403	5304505860		Support, Basepad, Lh		Appelez-nous	-
404	5304505857		Bracket, Bottom Trim				$ 35.44
406	318277201		Shield, Microwave Rear		Appelez-nous	-
409	5304505861		Bracket, Top Trim		Appelez-nous	-
410	5304505858		Shield, Microwave Flue		Appelez-nous	-
411	318647300		Holder, Fuse   (Replaces: 318576200)			Immediately	$ 217.73
412	318647300		Fuse, 20 Amp   (Replaces: 318576100)			Immediately	$ 217.73
413	807874501		Gusset, Fuse Mtg.				$ 78.67
56A	318276353		Trim, Side Filler, Black, Lh		Appelez-nous	-
58A	139001701		Insulation, Oven Wrapper, 27", Top & Sides		Appelez-nous	-
58C	5304506954		Insulation, Oven, Back		Appelez-nous	-
58D	5304506965		Insulation, Bake Element, Front		Appelez-nous	-
58E	5304506966		Insulation, Bake Element, Side		Appelez-nous	-
6A	139012500		Rack, Oven, Offset, W/handle				$ 88.72
NI	5304470882		Screw, Anti-tip, 8 - 5/8, Black, (2)				$ 13.46
NI	318165800		Spacer, Glass, Foam				$ 17.72
NI	316533900		Screw, Truss Hd, 8-16 X 1.5, (8)				$ 12.02
NI	5304506984		Harness Assembly, Conduit, Elbow Connector, & Wiring				$ 150.17
NI	5304510379		Harness, Wiring, Main		Appelez-nous	-
NI	5304517285		Harness Assembly, Filter, Electrical, W/capacitors   (Replaces: 5304500988)				$ 38.68
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	240442708		Screw, 10-32 X 3/4   (Replaces: 5304400794)				$ 8.34
NIA	807597603		Screw, Self Tapping, 8-18 X 11/32, (4)				$ 9.22
NIA	316205500		Nut, Hex Flange, 3/8 10-32				$ 11.34
NIA	318946500		Bulb, Halogen, G9, 25w, 120v			Immediately	$ 60.44
NIA	5303307406		Screw, 6-32 X 3/8, Black, (2)				$ 11.29
NIA	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NIA	5304453707		Screw, 8-18 X 1/2			Immediately	$ 15.92
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
NIA	5304506990		Harness, Wiring, Mdl Ads, Latch/probe		Appelez-nous	-
NIA	318579001		Bracket, Wire				$ 11.08
NIB	5303289910		Screw, Truss Sqdr, 8a X 1", 62*				$ 5.67
NIB	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
