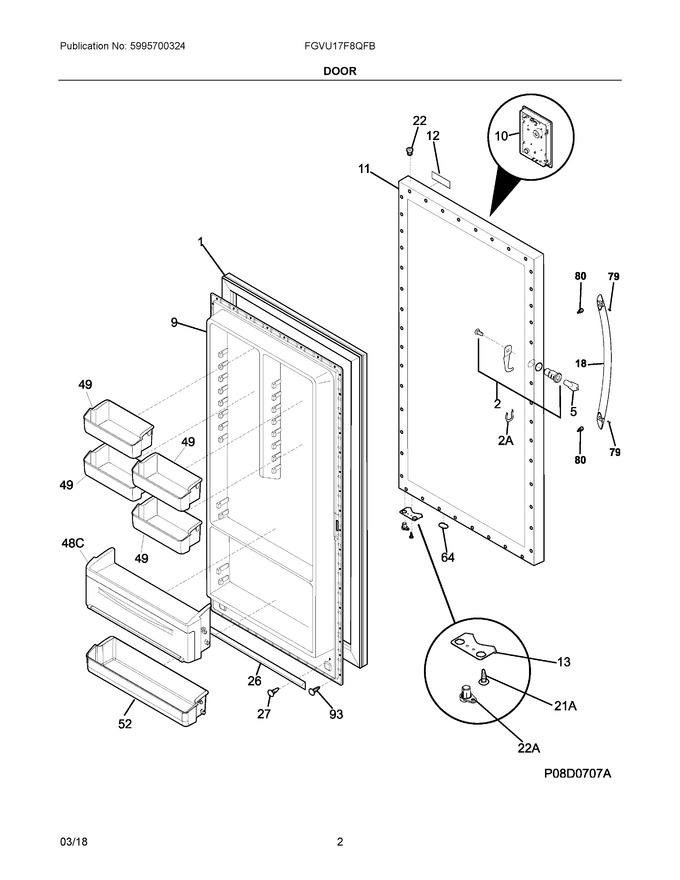

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304505530		Gasket, Gray   (Replaces: 216522384)			Immediately	$ 151.19
2	297318600		Lock Assy				$ 36.87
5	297147700		Key, Lock			Immediately	$ 7.57
9	297382600		Panel-inner Door, Frzr				$ 207.67
10	808772225		Control, Electronic   (Replaces: 808772216)				$ 222.20
11	297316568		Panel-outer Door, Stainless				$ 632.21
12	242015201		Label-nameplate			Immediately	$ 6.90
13	297416200		Door Stop				$ 15.90
18	241930101		Handle-door, Stainless				$ 160.88
22	216970801		Bearing, Hinge, Gray, Top				$ 4.25
26	297387100		Gasket, Secondary				$ 19.52
27	5303212828		Clip, Panel Mtg				$ 16.63
49	297187201		Bin-door, 2l, Clear				$ 77.75
52	297225603		Bin-door, Clear				$ 126.21
64	297014702		Plug-button, Door Base				$ 9.41
79	218755405		Screw-set, 10-32 X 0.375   (Replaces: 218755408)			Immediately	$ 20.56
80	218755504		Screw, Shoulder, #10-ab, Handle Mounting			Immediately	$ 18.60
93	297410600		Screw, 8-18 X .500			Immediately	$ 3.55
21A	241710601		Screw, Hex Washer Hd, 1/4 X 7/8, Door Stop/hng   (Replaces: 216850900)				$ 13.46
22A	297415900		Ramp, Door Closer			Immediately	$ 24.74
2A	297213300		Clip, Spring				$ 10.17
48C	297350101		Bin-door			Immediately	$ 139.23
NI	5304497740		Instructions, Handle Clip				$ 30.30
NI	5304494753		Harness Door				$ 48.13
NIA	240537301		Nut-anchor, Door Hdl Screw				$ 11.34
NIA	5304406520		Clip, Panel Mtg Kit, (40)				$ 125.83
NIB	297407700		Handle Installation Kit				$ 10.13
