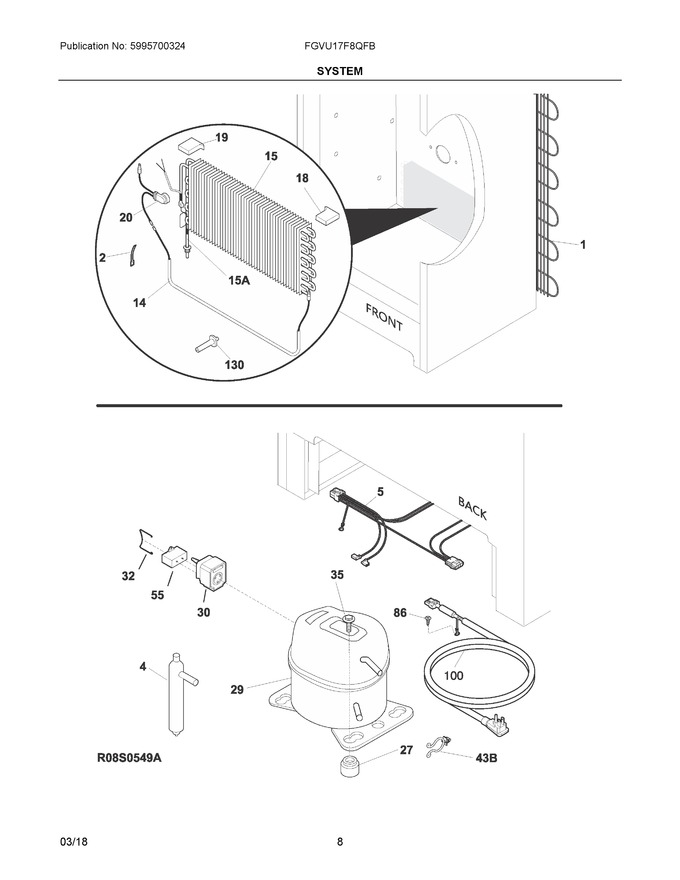

01 - Cover Sheet
02 - Door
03 - Cabinet
04 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5300083897 | Condenser |
|
$ 538.37 | |||||
| 2 | 5308000110 | Strap-evap/heater, Aluminum, (2) |
|
Immediately | $ 59.82 | ||||
| 4 | 5303305677 | Filter-dryer (Replaces: 297396820) |
|
Immediately | $ 31.67 | ||||
| 5 | 5304494360 | Harness, Main |
|
$ 47.48 | |||||
| 14 | 5304497251 | Heater Assembly, Defrost, W/thermostat |
|
$ 80.96 | |||||
| 15 | 297414901 | Evaporator (Replaces: 297414900) |
|
Immediately | $ 171.34 | ||||
| 18 | 297078701 | Insulator-evap, Styrofoam, Rh |
|
$ 3.62 | |||||
| 19 | 297078801 | Insulator-evap, Styrofoam, Lh |
|
$ 3.62 | |||||
| 29 | 240550948 | Compressor, Dgk57c (Replaces: 297414053) |
|
Immediately | $ 292.50 | ||||
| 30 | 297259515 | Controller, Compressor (Replaces: 297259502) |
|
$ 74.42 | |||||
| 32 | 216954300 | Clip, Controller |
|
$ 17.01 | |||||
| 35 | 297368500 | Bolt, Compressor |
|
- | |||||
| 55 | 297286803 | Capacitor-run |
|
Immediately | $ 28.77 | ||||
| 86 | 216036601 | Screw, Rwhd, 8-32a X 0.500, Gx-ca |
|
$ 13.65 | |||||
| 100 | 297366805 | Cord, Power (Replaces: 297366804) |
|
$ 68.68 | |||||
| 130 | 297244700 | Support, Evaporator Mtg |
|
$ 4.26 | |||||
| 15A | 297217900 | Heat Exchanger, Suct/cap Tube |
|
Immediately | $ 91.82 | ||||
| 43B | 297315800 | Clip, Wire |
|
$ 10.13 | |||||
| NI | 241500305 | Screw, Self Pierce, #8, 18x.63 (Replaces: 297174300) |
|
$ 3.03 | |||||
| NI | 297018400 | Thermistor |
|
Immediately | $ 79.52 | ||||
| NI | 216683900 | Thermostat, Service Part |
|
$ 61.62 | |||||
| NI | 5304485759 | Tape, Foil (Replaces: 216737600) |
|
$ 0.71 | |||||
| NI | 240555002 | Screw-#8-32 X 3/8 |
|
Immediately | $ 13.46 | ||||
| NIA | 216695300 | Relay |
|
$ 77.97 |
