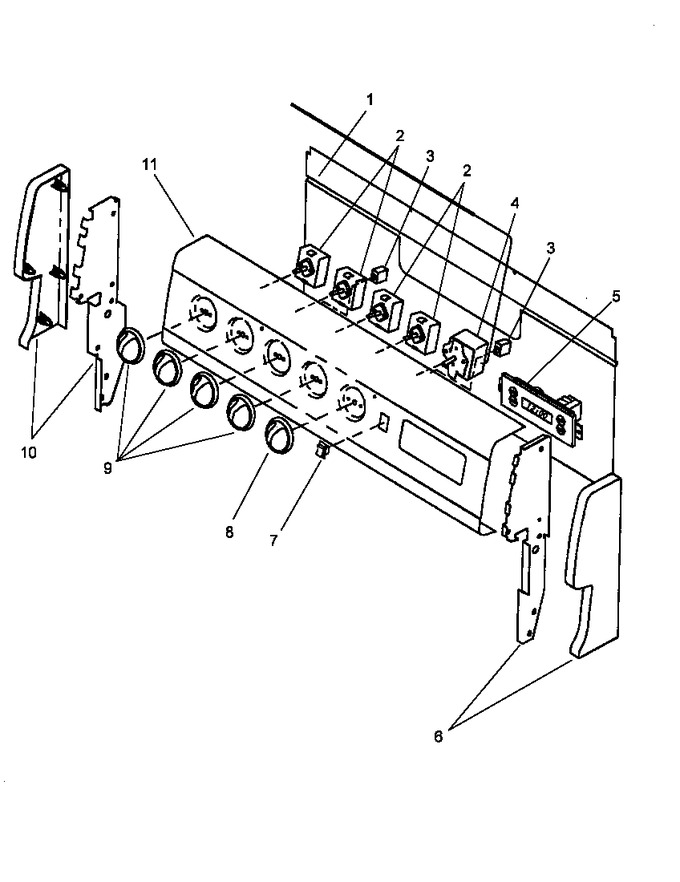

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 0315107 | Cover, Metal Backguard |
|
- | |||||
| 2 | WP74011243 | Switch, Infinite (Replaces: Y0315563) |
|
$ 115.88 | |||||
| 3 | Y07606700 | Light, Indicator (oven) |
|
- | |||||
| 4 | Y0315050 | Thermostat, Elec Nsc |
|
- | |||||
| 5 | Y07707900 | Clock (black) |
|
- | |||||
| 6 | 315076B | End Cap, Ul Rh |
|
- | |||||
| 7 | Y0063997 | Switch, Rocker |
|
- | |||||
| 8 | Y07714700 | Knob Thermostat |
|
- | |||||
| 9 | Y07714701 | Knob, Infinite Switch |
|
- | |||||
| 10 | 315075B | End Cap, Ul Lh |
|
- | |||||
| 11 | 07708903 | Panel, Bkgd-amana |
|
- | |||||
| NI | 0041801 | Screw No.8-18x.375 Ab |
|
- | |||||
| NI | 0041937 | Washer Handle Mounting |
|
- | |||||
| NI | Y0041778 | Screw 6-32x3/16 Slo Cook Sw |
|
- | |||||
| NI | 0041948 | Internal Lock Washer No.6 |
|
- | |||||
| NI | WP3400882 | Screw, No.8-32 X 3/16 Pph (Replaces: Y0041768) |
|
Immediately | $ 6.47 | ||||
| NI | 314196B | Retainer, Insul Bkgd |
|
- | |||||
| NI | 0306589 | Support, Bkgd (lh) |
|
- | |||||
| NI | 0306590 | Support, Bkgd (rh) |
|
- |
