01 - Backguard Assy


02 - Cavity Assy


03 - Electrical Components


04 - Main Top Assy


05 - Oven Assy


06 - Oven Door Assy


07 - Storage Drawer Assy

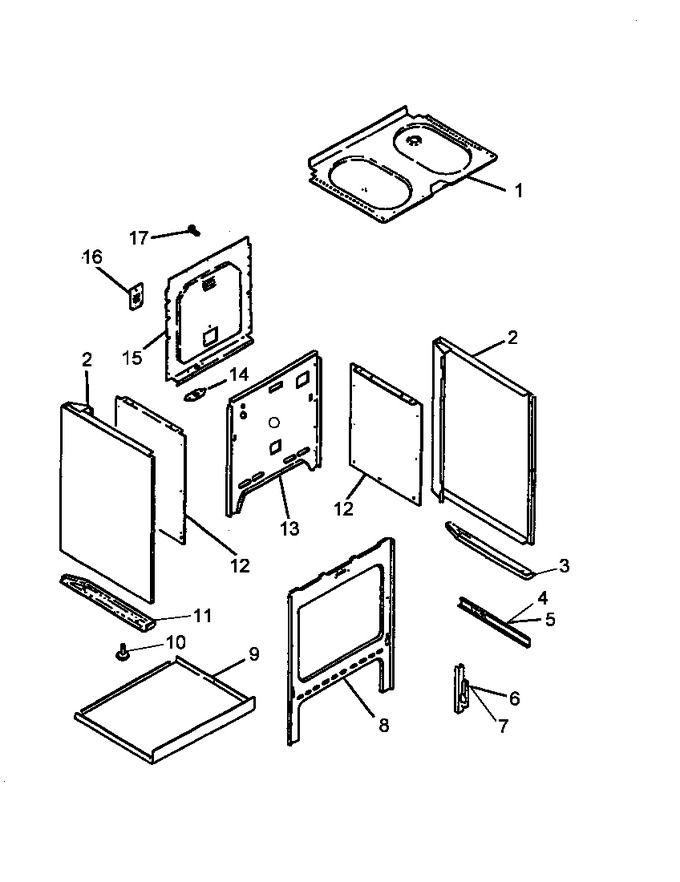

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	309429CG		Baffle, Drip (enamel)		Appelez-nous	-
2	306081L		Panel, Side (alm)		Appelez-nous	-
3	314885B		Brace, Leveling Leg (rt)		Appelez-nous	-
4	Y0314662		Track, Storage Dwr Lh		Appelez-nous	-
5	0314663		Track, Storage Dwr Rh		Appelez-nous	-
6	Y0314572		Kit, Door Hinge(lh-hs)		Appelez-nous	-
7	Y0314573		Kit, Door Hinge(rh-ss)		Appelez-nous	-
8	Y00000000		See Note Front Frame, Not Field Replacable		Appelez-nous	-
9	Y0309061		Retainer, Insulation (bottom)		Appelez-nous	-
10	314187B		Leg,leveling Xxx		Appelez-nous	-
11	314884B		Brace, Leveling Leg (lt)		Appelez-nous	-
12	0304282		Retainer, Insulation (side)		Appelez-nous	-
13	0309081		Retainer, Rear Insul.		Appelez-nous	-
14	0058311		Plate, Main Inlet Wire		Appelez-nous	-
15	Y0307342		Cover, Rear		Appelez-nous	-
16	Y0058435		Access Plate, Rear		Appelez-nous	-
17	Y0091587		Cable, Clip Esm		Appelez-nous	-
NI	Y0305004		Screw, No.8-18 X .500 Ab (blk)		Appelez-nous	-
NI	Y0301028		Bracket		Appelez-nous	-
NI	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: Y0059445)			Immediately	$ 12.65
NI	W11245710		Screw, No.8-18 X 3/8 P Trs Hd Lp   (Replaces: Y0041809)			Immediately	$ 12.65
NI	Y0041813		Screw Cabinet Trim		Appelez-nous	-
NI	Y0062796		Clip, Insulation		Appelez-nous	-
NI	Y0301555		Anchor, Plastic		Appelez-nous	-
