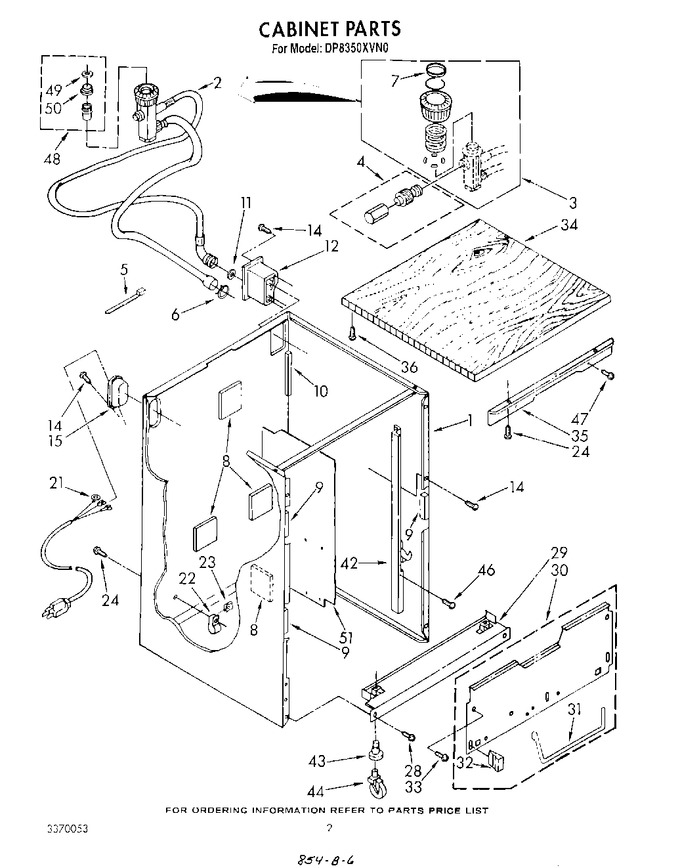

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 303090 | Screw, 8-18 X 5/8 |
|
- | |||||
| 1 | 302898 | Shell Assembly (almond) |
|
- | |||||
| 2 | 302902 | Coupler Assembly |
|
- | |||||
| 3 | WP285170 | Collar Kit, Faucet Coupler (Replaces: 285170) |
|
Immediately | $ 64.29 | ||||
| 4 | 285171 | Valve, Pressure Relief |
|
- | |||||
| 5 | WPW10144763 | Clip, Strap (Replaces: 596490) |
|
$ 6.80 | |||||
| 6 | 719953 | Clamp, Hose |
|
- | |||||
| 7 | WP910218 | Seal (Replaces: 711696) |
|
Immediately | $ 9.05 | ||||
| 8 | 3368108 | Pad (4) |
|
- | |||||
| 9 | 3368110 | Pad (3) |
|
- | |||||
| 10 | 3368109 | Pad |
|
- | |||||
| 11 | WP16123 | Washer (Replaces: 16123) |
|
$ 6.93 | |||||
| 12 | 302891 | Housing, Hose |
|
- | |||||
| 14 | WP90767 | Screw, 8-18 X 1/2 (Replaces: 339493) |
|
Immediately | $ 7.04 | ||||
| 15 | 716234 | Housing, Cord |
|
- | |||||
| 21 | 303651 | Cord, Power |
|
- | |||||
| 22 | 596553 | Clamp, Strain Relief |
|
- | |||||
| 23 | 717337 | Nut, J-type |
|
- | |||||
| 24 | WP488787 | Screw, 8-18 X 1/2 (Replaces: 9418000) |
|
$ 9.52 | |||||
| 28 | WP90767 | Screw, Tapping (4) (Replaces: 300890) |
|
Immediately | $ 7.04 | ||||
| 29 | 3368426 | Toeplate Assembly (includes Item 43) |
|
- | |||||
| 30 | 719091 | Plate, Cover |
|
$ 1,740.16 | |||||
| 31 | 719094 | Bar, Torsion (l.h.) |
|
$ 1,874.92 | |||||
| 31 | 719093 | Bar, Torsion (r.h.) |
|
- | |||||
| 32 | 719235 | Bumper, Rubber |
|
- | |||||
| 33 | WP488729 | Screw, 8 X 1/2 (Replaces: 3148107) |
|
Immediately | $ 7.01 | ||||
| 34 | 304598 | Panel, Top |
|
- | |||||
| 35 | 302250 | Trim, Front |
|
- | |||||
| 36 | WP681414 | Screw (2) (Replaces: 304428) |
|
Immediately | $ 7.07 | ||||
| 42 | 3367436 | Leg Assembly, R.h. |
|
- | |||||
| 42 | 3367438 | Leg Assembly, L.h. |
|
- | |||||
| 43 | 300450 | Socket, Caster (alternate) |
|
- | |||||
| 43 | 717588 | Socket, Caster (alternate) |
|
- | |||||
| 44 | 300424 | Caster (alternate) |
|
- | |||||
| 44 | 718534 | Caster (alternate) |
|
- | |||||
| 46 | WP90767 | Screw, 8 X 3/8 (3) (Replaces: 90767) |
|
Immediately | $ 7.04 | ||||
| 47 | 3367953 | Screw, 8-18 X 5/8 (2) |
|
- | |||||
| 48 | 30168LF | Adapter, Faucet (Replaces: 713750) |
|
Immediately | $ 10.94 | ||||
| 49 | 713747 | Washer |
|
- | |||||
| 50 | 713748 | Bushing |
|
- | |||||
| 51 | 3368640 | Barrier, Hose |
|
- |
