SELECT A DIAGRAM

01 - Console


02 - Cabinet


03 - Door

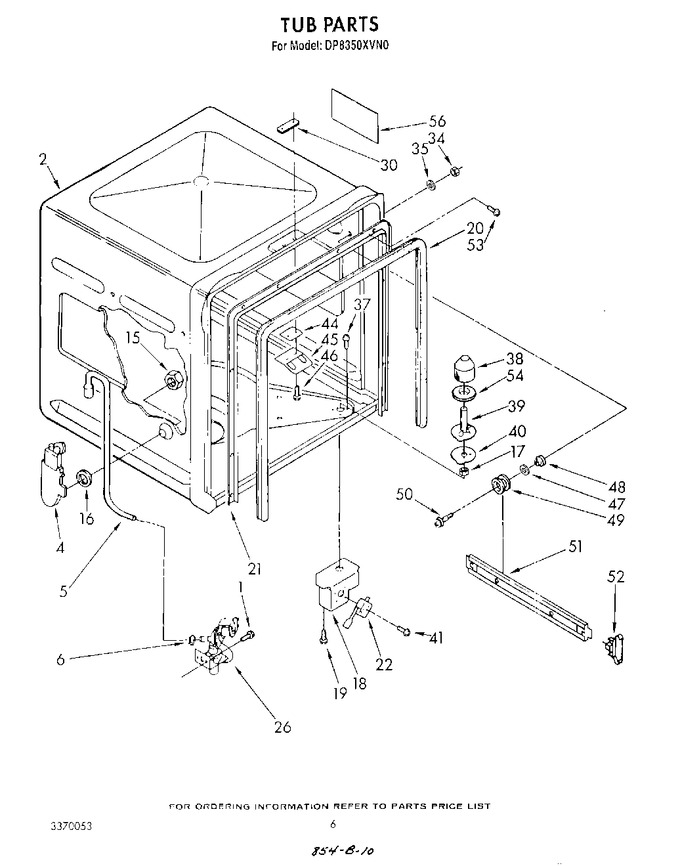

04 - Tub, Literature And Optional


05 - Dishrack


06 - Pump And Motor


07 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP90767		Screw, 8 X 3/8 (2)   (Replaces: 90767)			Immediately	$ 7.04
2	3367464		Tub Assembly		Appelez-nous	-
4	300974		Inlet, Water		Appelez-nous	-
5	304669		Hose, Inlet				$ 45.03
6	WP596669		Clamp   (Replaces: 301958)			Immediately	$ 7.56
15	713799		Nut, 7/18-16		Appelez-nous	-
16	713878		Gasket		Appelez-nous	-
17	717488		Nut, .125				$ 12.83
18	719342		Bracket, Overflow Switch		Appelez-nous	-
19	718250		Screw, 8 X 1/2 (3)		Appelez-nous	-
20	3368007		Gasket				$ 36.29
21	3368002		Retainer, Gasket				$ 59.65
22	660741		Switch, Pressure		Appelez-nous	-
26	661511		Valve, Water Inlet		Appelez-nous	-
30	303080		Nut, Twin Spring		Appelez-nous	-
34	718829		Locknut (8)		Appelez-nous	-
35	717624		Washer (8)		Appelez-nous	-
37	WP488729		Screw, 8-18 X 1/2   (Replaces: 717236)			Immediately	$ 7.01
38	718035		Float		Appelez-nous	-
39	719967		Standpipe, Overflow		Appelez-nous	-
40	719966		Gasket, Overflow		Appelez-nous	-
41	302203		Screw, 4-40 X 9/16		Appelez-nous	-
44	712302		Shim		Appelez-nous	-
45	300233		Strike		Appelez-nous	-
46	WP308685		Screw, 10-16 X 1/2 (2)   (Replaces: 3367670)			Immediately	$ 7.08
47	718750		Washer (8)		Appelez-nous	-
48	718817		Washer, Cup (8)		Appelez-nous	-
49	300844		Wheel Tub (8)		Appelez-nous	-
50	712499		Screw, Shoulder (8)		Appelez-nous	-
51	300846		Track (2)		Appelez-nous	-
52	300845		End Cap, Track (4)				$ 7.63
53	3368008		Screw, 8-18 X 5/8 (10)		Appelez-nous	-
54	301662		Gasket, Standpipe (2)		Appelez-nous	-
56	302340		Pad, Sound (2)		Appelez-nous	-
	LIT3369265		Guide, Use & Care		Appelez-nous	-
	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
	LIT3367225		Instructions, Installation		Appelez-nous	-
	285368		Platinum (uncut)		Appelez-nous	-
	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
	261891		Golden Harvest (uncut)		Appelez-nous	-
	350956		Paint, Spray 13 Oz. (almond)				$ 46.30
	978883		Almond (uncut)		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	350941		Leveler (thinner)		Appelez-nous	-
	350942		Primer (white)   (Replaces: 206922)				$ 80.69
	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
	285365		Toast		Appelez-nous	-
	285006		Paint, Spray 13 Oz. (black)			Immediately	$ 51.34
	261890		Golden Harvest		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 105.40
	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
	799640		Kit, Epoxy Patch (white)		Appelez-nous	-
	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
	675506		Tine Tip Repair Kit (blue-enough For Two Complete Dishracks)		Appelez-nous	-
	675476		Vinyl Touch Up (blue)		Appelez-nous	-
	LIT3370053		Parts List		Appelez-nous	-
	LIT3368833		Label, Wiring Diagram		Appelez-nous	-
	LIT3370077		Energy Guide		Appelez-nous	-
