ARR6102W (BOM: P1143605N W) | TransGlobal : Appliance Model Lookup

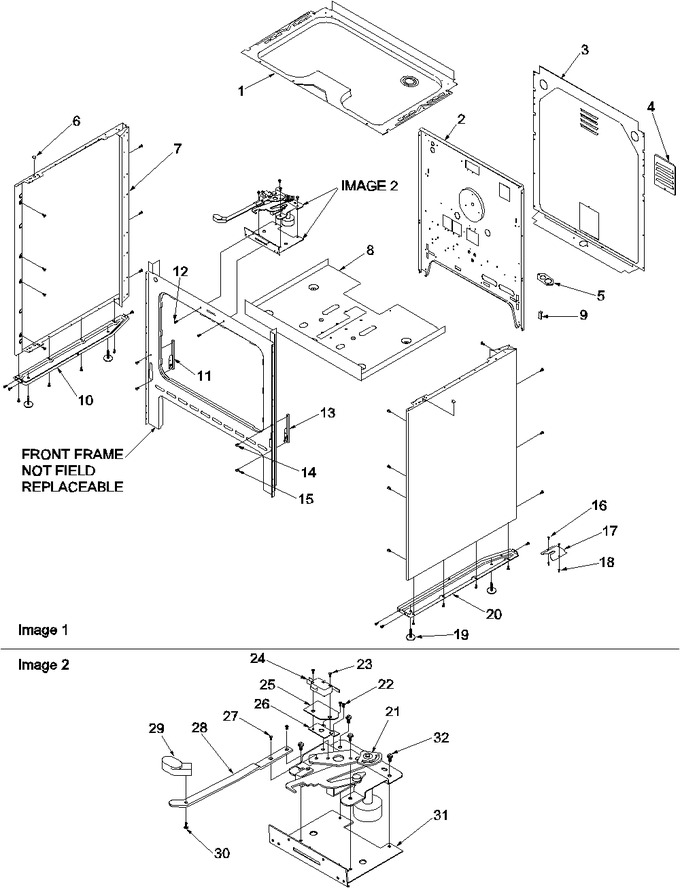

Diagram #	Part Number	Description	Availability	Ships	Price
1	31836001CG	Baffle, Drip (enamel)	Appelez-nous	-
2	31733901	Retainer, Rear (elec)	Appelez-nous	-
3	31757101	Cover, Rear	Appelez-nous	-
4	31757201	Plate, Access	Appelez-nous	-
5	0058311	Plate, Main Inlet Wire	Appelez-nous	-
6	31717001	Spacer, Snap-in	Appelez-nous	-
7	31825104W	Panel, Side (wht)	Appelez-nous	-
8	Y0309061	Retainer, Insulation (bottom)	Appelez-nous	-
9	Y0091587	Cable, Clip Esm	Appelez-nous	-
10	31854501	Brace, Leveling Leg (lt)	Appelez-nous	-
11	31715201	Hinge, Oven Door (lt)	Appelez-nous	-
12	31750719	Screw, No.8-18 X .500 Ab (blk)	Appelez-nous	-
13	31715202	Hinge, Oven Door (rt)	Appelez-nous	-
14	31750719	Screw, No.8-18 X .500 Ab (blk)	Appelez-nous	-
15	WP4159193	Screw, No.10-32 X 5/16 Pan Ph H (Replaces: 31750521)			$ 4.29
16	31750412	Screw, No.8-18x5/8 P Rd Hd (blk)	Appelez-nous	-
17	Y0315560	Brkt, Range Anti-tip	Appelez-nous	-
18	Y0301555	Anchor, Plastic	Appelez-nous	-
19	314187B	Leg,leveling Xxx	Appelez-nous	-
20	31854502	Brace, Leveling Leg (rt)	Appelez-nous	-
21	31719901	Latch, Oven Door (elec)	Appelez-nous	-
22	Y0065664	Screw, Tt 23 4-40 X 5/8	Appelez-nous	-
23	Y0092365	Screw 4-40x1	Appelez-nous	-
24	Y0065780	Switch, Clean Circuit			$ 11.77
25	Y0091523	Insulation, Esm	Appelez-nous	-
26	Y0302316	Bracket, Switch	Appelez-nous	-
27	WP4159193	Screw, No.10-24x1/4 (pan Ph Hd) (Replaces: 31750501)			$ 4.29
28	303039B	Latch Arm	Appelez-nous	-
29	0302300	Knob, Latch Handle (blk)	Appelez-nous	-
30	Y0041769	Screw 6 32x5/16 Ph Fh	Appelez-nous	-
31	31848301	Bracket, Latch Mounting	Appelez-nous	-
32	W11245710	Screw, No.8-18x.406-.344 Waferhd (Replaces: 31750701)		Immediately	$ 12.65
NI	31750517	Screw, No.10-32x1/2 (pan Ph Hd)	Appelez-nous	-
NI	Y0316652	Assy, Anti-tip Pack	Appelez-nous	-
