01 - Cabinet


02 - Cavity


03 - Main Top And Backguard Assembly


04 - Oven Door And Decorative Panel

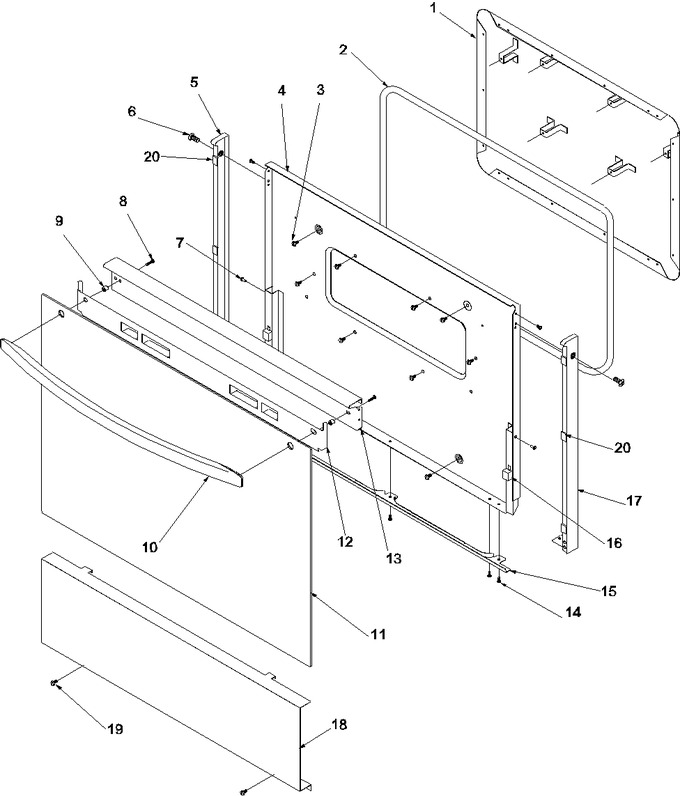

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	314692CG		Oven Door Pad W/o Window		Appelez-nous	-
2	31715902		Gasket, Oven Door (67``)				$ 13.97
3	31750706		Screw, No.8 X .375 Wafer Hd(blk)		Appelez-nous	-
4	316978CG		Backer, Oven Door (sm Window)		Appelez-nous	-
5	309458B		End Cap, Lt (blk)		Appelez-nous	-
6	W11245710		Screw, No.8-18 X 3/8 P Trs Hd Lp   (Replaces: 31750410)			Immediately	$ 12.65
7	Y0302648		Rivet, Pop		Appelez-nous	-
8	31750425		Screw, No.8-18 X 3/8 Pph		Appelez-nous	-
9	309461B		Bushing, Handle (blk)		Appelez-nous	-
10	31689501B		Handle, Oven Door (blk)		Appelez-nous	-
11	31840501B		Glass, Elec Dr (no Window)		Appelez-nous	-
12	31833201		Assy, Glass Heat Shield		Appelez-nous	-
13	31782102B		Trim, Door Top		Appelez-nous	-
14	31750706		Screw, No.8 X .375 Wafer Hd(blk)		Appelez-nous	-
15	309460B		Support, Glass (blk)		Appelez-nous	-
16	Y0309627		Bumper, Rubber		Appelez-nous	-
17	309457B		End Cap, Rt (blk)		Appelez-nous	-
18	31819702W		Panel, False (elec White)		Appelez-nous	-
19	31750517		Screw, No.10-32x1/2 (pan Ph Hd)		Appelez-nous	-
20	0043184		Tape, Foam		Appelez-nous	-
NI	Y0309434		Label, Cleaning Caution Fr/eng		Appelez-nous	-
NI	0062614		Insulation,door-sub Backer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
