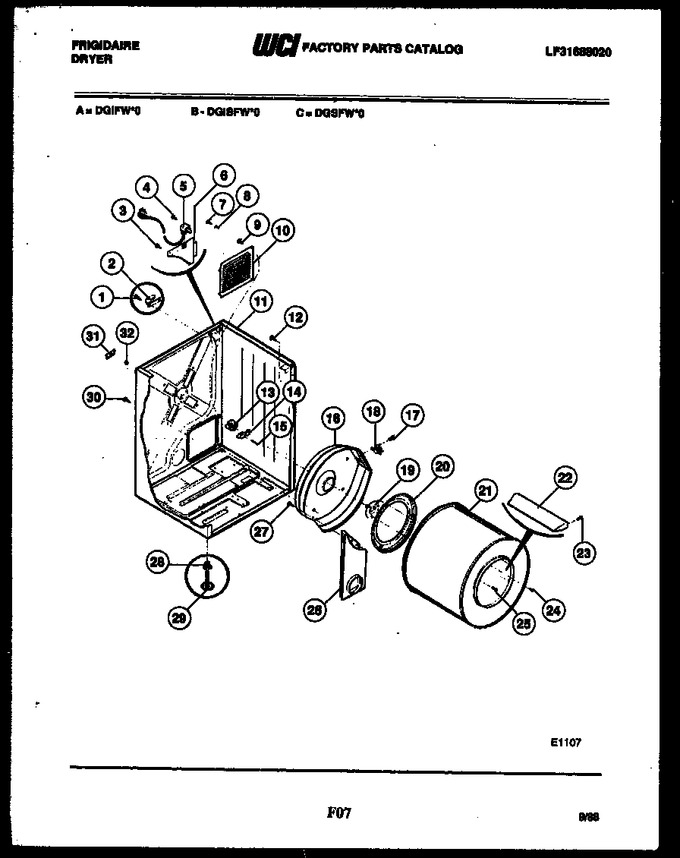

02 - Cabinet And Component Parts


03 - Door Parts


04 - Console And Control Parts


05 - Motor And Blower Parts


06 - Burner, Igniter And Valve


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	08011338		Screw (4)		Appelez-nous	-
2	3281175		Hinge (2)				$ 10.16
3	3281043		Screw (2)		Appelez-nous	-
4	3010202		Screw		Appelez-nous	-
5	3281129		Service Cord		Appelez-nous	-
6	3281130		Cover		Appelez-nous	-
7	3281106		Screw		Appelez-nous	-
8	3281107		Washer		Appelez-nous	-
9	3281035		Screw (2)		Appelez-nous	-
10	3281018		Cover Plate		Appelez-nous	-
11	3201197		Cabinet Assy Almond		Appelez-nous	-
12	3010202		Screw (4)		Appelez-nous	-
13	3281008		Bearing (parts Contained In Rear Bearing Kit.)		Appelez-nous	-
14	3281023		Bracket Bearing Support (parts Contained In Rear Bearing		Appelez-nous	-
15	3281033		Screw (2) (parts Contained In Rear Bearing Kit.)		Appelez-nous	-
16	3281119		Heater Housing And Seal Assembly		Appelez-nous	-
17	3281120		Screw (2)		Appelez-nous	-
18	08015399		Thermostat		Appelez-nous	-
19	3281009		Shaft (parts Contained In Rear Bearing Kit.)		Appelez-nous	-
20	3201198		Baffle		Appelez-nous	-
21	3201199		Drum				$ 246.86
22	3201200		Vane (3)		Appelez-nous	-
23	3201201		Screw (9)		Appelez-nous	-
24	3281029		Screw (3)		Appelez-nous	-
25	3281027		Screw (3)		Appelez-nous	-
26	3281123		Heat Duct Assembly		Appelez-nous	-
27	3281035		Screw (3)		Appelez-nous	-
28	3201202		Grommet (4)				$ 22.47
29	3281032		Foot Bolt (4)		Appelez-nous	-
30	3010202		Screw (4)		Appelez-nous	-
31	3281020		Nut Flat (parts Contained In Rear Bearing Kit.)		Appelez-nous	-
32	3281019		Ball		Appelez-nous	-
*24757	3281153		Rear Bearing Kit		Appelez-nous	-
