SELECT A DIAGRAM

02 - Cabinet And Component Parts


03 - Door Parts


04 - Console And Control Parts


05 - Motor And Blower Parts


06 - Burner, Igniter And Valve

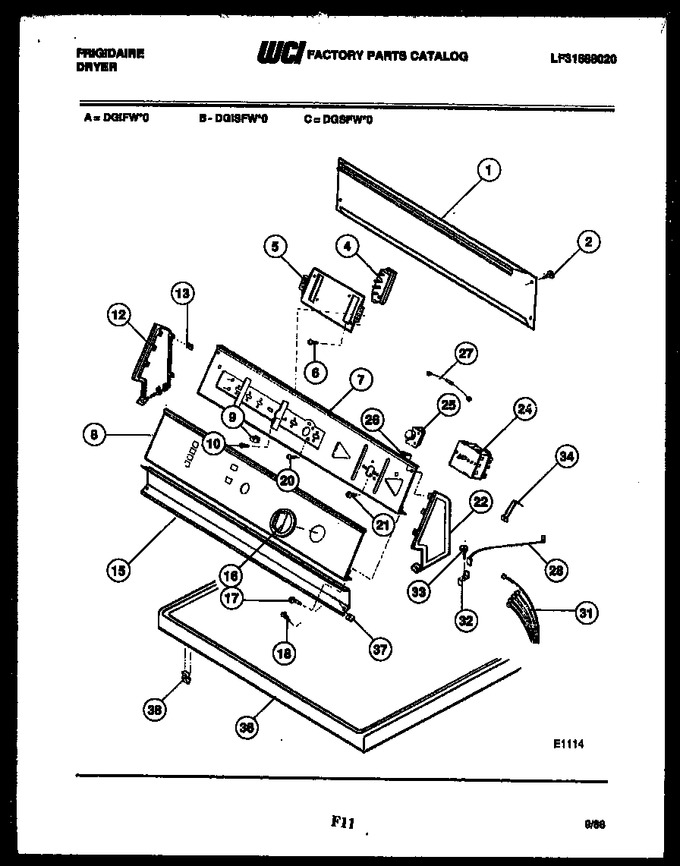

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3201322		Back Cover		Appelez-nous	-
2	3015671		Screw (4)		Appelez-nous	-
4	3201323		Switch (4)		Appelez-nous	-
5	3201324		Bracket-switch Supt		Appelez-nous	-
6	8010804		Screw (2)		Appelez-nous	-
7	3201325		Control Mounting Bracket		Appelez-nous	-
8	3201330		Escutcheon		Appelez-nous	-
9	8010807		Button Pushbutton Switch		Appelez-nous	-
10	8004660		Screw (4)		Appelez-nous	-
12	8010783		End Cap Rh		Appelez-nous	-
13	8014350		Clip End Cap (8)		Appelez-nous	-
15	3201333		Trimplate Lower		Appelez-nous	-
16	8015693		Timer Knob And Indicator Assembly		Appelez-nous	-
17	8010782		Screw (3)		Appelez-nous	-
18	8011318		Screw (2)		Appelez-nous	-
20	8001544		Screw (2)		Appelez-nous	-
21	8006636		Screw (2)		Appelez-nous	-
22	8010787		End Cap R.h.		Appelez-nous	-
24	3201337		Timer		Appelez-nous	-
25	1132293		Push To Start Start Switch		Appelez-nous	-
26	8010789		Screw (2)		Appelez-nous	-
28	3201340		Ground Wire		Appelez-nous	-
31	3201229		Harness		Appelez-nous	-
32	8002341		Terminal		Appelez-nous	-
33	8001689		Screw		Appelez-nous	-
34	8014349		Ground Strap		Appelez-nous	-
36	3201347		Top Panel-almond		Appelez-nous	-
37	8001912		Clip (2)		Appelez-nous	-
38	3281170		Catch Spring (2)		Appelez-nous	-
31A	3281103		Wire, Tie Harness (3) (non-illustrated)		Appelez-nous	-
