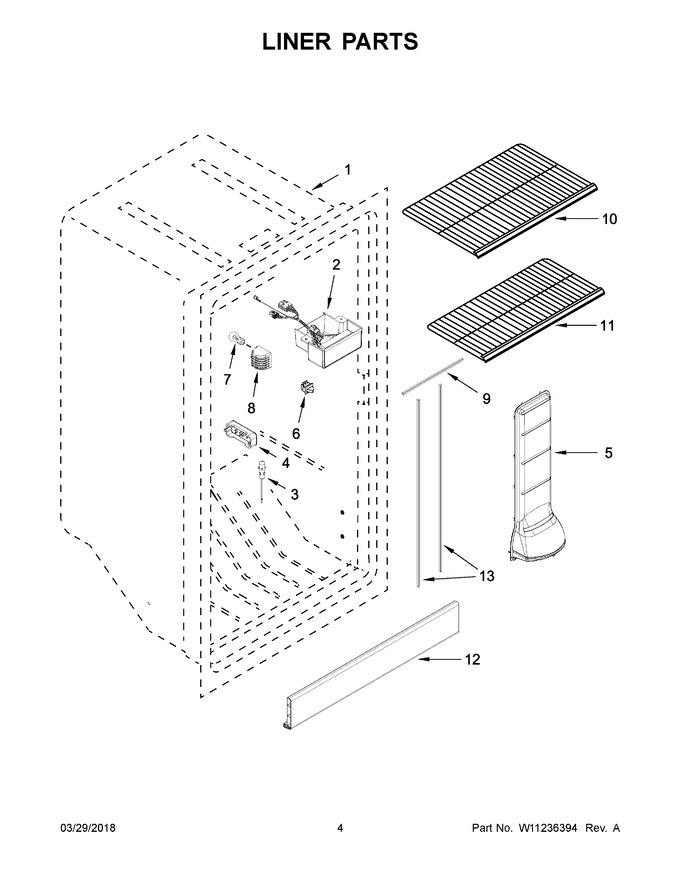

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | W11496885 | Control Assembly (Replaces: W11221332) |
|
Immediately | $ 137.47 | ||||
| 3 | WPW10384183 | Thermistor (Replaces: W10384183) |
|
Immediately | $ 101.55 | ||||
| 4 | W10608692 | Cover, Thermistor |
|
$ 26.77 | |||||
| 5 | W10574583 | Tower, Air |
|
$ 115.79 | |||||
| 6 | W10755325 | Switch, Light |
|
Immediately | $ 35.29 | ||||
| 7 | W11679940 | Bulb, Light (Replaces: 2311792) |
|
Immediately | $ 10.17 | ||||
| 8 | W10569269 | Lens, Control Box |
|
$ 74.13 | |||||
| 9 | WPW10574368 | Gasket, Air Tower (horizontal) (Replaces: W10574564) |
|
$ 7.50 | |||||
| 10 | W10860909 | Shelf, Deep Wire (Replaces: W10569282) |
|
Immediately | $ 220.30 | ||||
| 11 | W11679651 | Shelf, Shallow Wire (Replaces: W10569283) |
|
$ 115.15 | |||||
| 12 | W10581590 | Trim, Door |
|
$ 93.15 | |||||
| 13 | WPW10574368 | Gasket, Air Tower (vertical) (Replaces: W10574368) |
|
$ 7.50 |
