New Model Search:

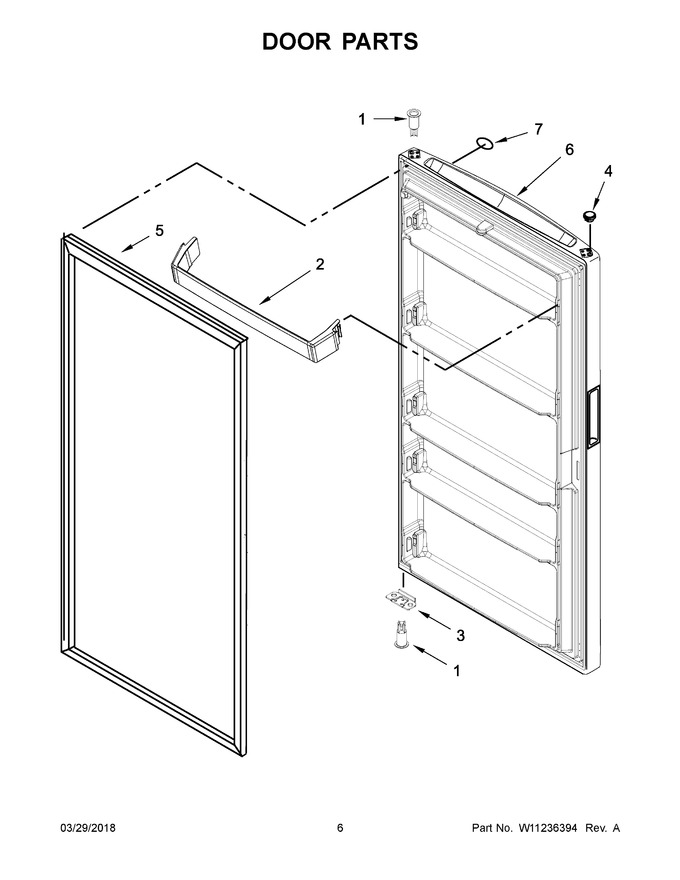

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP2314293 | Thimble (Replaces: 2314293) |
|
$ 6.47 | |||||
| 2 | WP4-65451-001 | Rail, Door (Replaces: 4-65451-001) |
|
$ 85.58 | |||||
| 3 | W10628869 | Bracket, Door Stop |
|
$ 22.56 | |||||
| 4 | WP2212648 | Plug, Hole (white) (Replaces: 2212648) |
|
$ 7.02 | |||||
| 5 | W11501317 | Gasket, Door (white) (Replaces: W10574475) |
|
Immediately | $ 254.45 | ||||
| 6 | W10746788 | Assembly, Door (includes Handle Cup) (white) (Replaces: W10574713) |
|
$ 1,260.09 | |||||
| 7 | W11428492 | Badge (white) (Replaces: W11046244) |
|
$ 71.63 |
