SELECT A DIAGRAM

01 - Cover Sheet

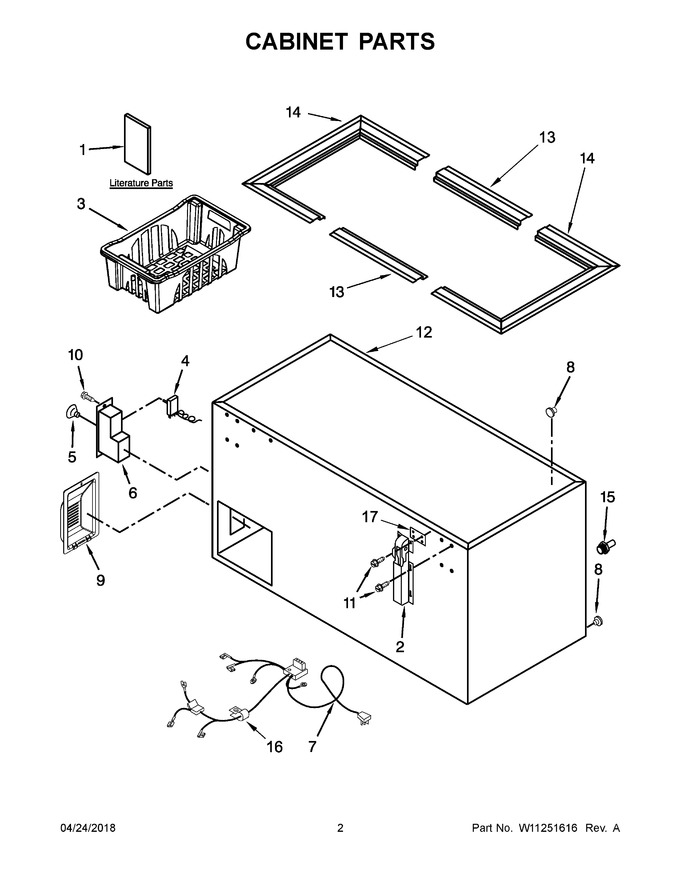

02 - Cabinet Parts


03 - Door Parts


04 - Unit Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10668408		Use & Care Guide		Appelez-nous	-
2	W11192185		Hinge Assembly   (Replaces: W11043771)				$ 164.89
3	W11049578		Basket   (Replaces: W10812047)				$ 104.90
4	WP4-35940-001		Thermostat   (Replaces: 4-35940-001)				$ 148.16
5	W10738934		Knob, Thermostat		Appelez-nous	-
6	W10727745		Box, Control				$ 82.04
7	W10631221		Harness, Wiring				$ 99.33
8	3-33211-001		Plug, Drain				$ 10.63
9	W10574468		Panel, Access				$ 24.78
10	3-24004-049		Screw		Appelez-nous	-
11	WP7101P126-60		Screw   (Replaces: 7101P356-60)			Immediately	$ 6.85
12	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
13	W11251043		Strip, Rear Breaker   (Replaces: W10763609)		Appelez-nous	-
14	W11045300		Strip, End Breaker   (Replaces: W10803246)				$ 80.74
15	W11663505		Adapter, Drain   (Replaces: 1-33178)				$ 15.45
16	549193		Clamp, Power Cord				$ 12.05
17	1-17548-006		Spacer, Hinge				$ 18.64
1A	W11115934		Energy Guide		Appelez-nous	-
1B	W10723826		Tech Sheet		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
