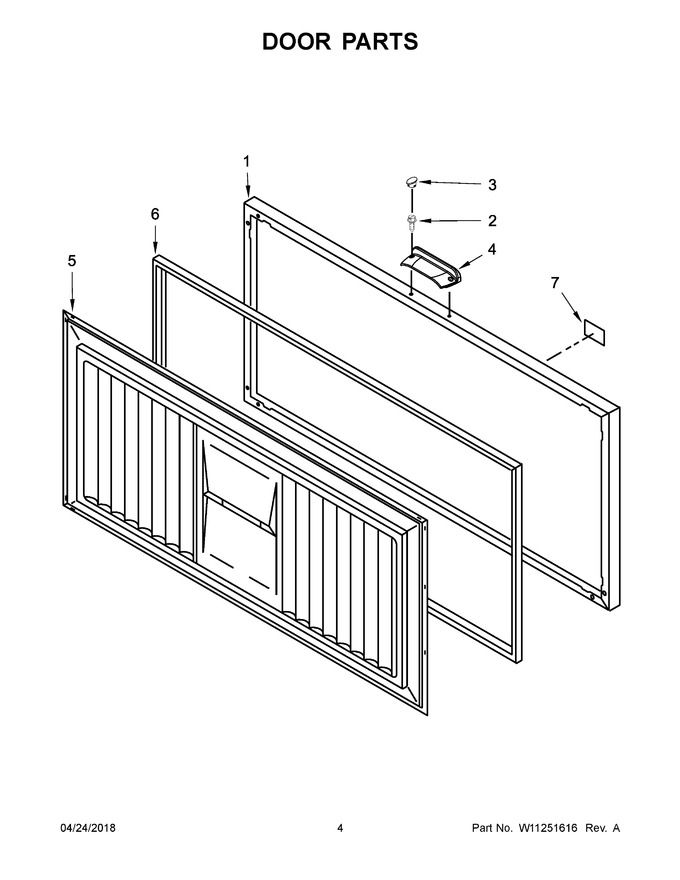

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10574520 | Lid (includes Insulation) |
|
$ 257.48 | |||||
| 2 | WPW10142283 | Screw (Replaces: 3-80732-007) |
|
$ 8.86 | |||||
| 3 | W10712378 | Cover, Screw Handle |
|
$ 15.16 | |||||
| 4 | W10852738 | Handle, Door (white) (Replaces: W10711161) |
|
$ 33.90 | |||||
| 5 | W10914248 | Liner, Door (Replaces: W10673928) |
|
$ 342.42 | |||||
| 6 | 4-35260-006 | Gasket, Door (white) |
|
Immediately | $ 291.90 | ||||
| 7 | W11428492 | Badge (white) (Replaces: W11046244) |
|
$ 71.63 |
