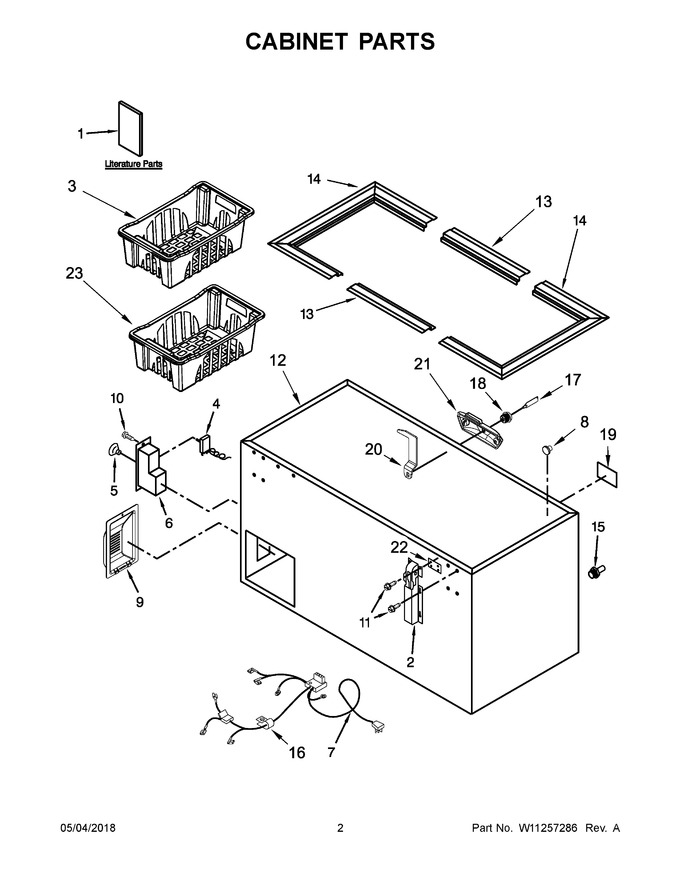

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10675482		Use & Care Guide		Appelez-nous	-
2	W11192185		Hinge Assembly   (Replaces: W11043771)				$ 164.89
3	W11251016		Basket   (Replaces: W10812046)		Appelez-nous	-
4	WP4-35940-001		Thermostat   (Replaces: 4-35940-001)				$ 148.16
5	W10738934		Knob, Thermostat		Appelez-nous	-
6	W10682894		Control Box		Appelez-nous	-
7	W10631222		Wiring Harness				$ 137.61
8	3-33211-001		Plug, Drain				$ 10.63
9	W10574468		Panel, Access				$ 24.78
10	3-24004-049		Screw		Appelez-nous	-
11	WP7101P126-60		Screw   (Replaces: 7101P356-60)			Immediately	$ 6.85
12	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
13	W11251043		Strip, Rear Breaker   (Replaces: W10763609)		Appelez-nous	-
14	W11045300		Strip, End Breaker   (Replaces: W10803246)				$ 80.74
15	W11663505		Adapter, Drain   (Replaces: 1-33178)				$ 15.45
16	549193		Clamp, Power Cord				$ 12.05
17	W10838052		Key   (Replaces: W10668135)				$ 34.86
18	W10664016		Barrel, Lock				$ 107.20
19	WPW10612925		Badge   (Replaces: W10612925)			Immediately	$ 36.31
20	W10714897		Latch, Lock				$ 25.44
21	W10711162		Housing, Lock				$ 30.12
22	1-17548-006		Spacer, Hinge				$ 18.64
23	W10854467		Lower Basket		Appelez-nous	-
1A	W11115941		Energy Guide		Appelez-nous	-
1B	W10723826		Tech Sheet		Appelez-nous	-
