SELECT A DIAGRAM

01 - Cover Sheet


02 - Cabinet Parts


03 - Door Parts


04 - Unit Parts


05 - Optional Parts (not Included)

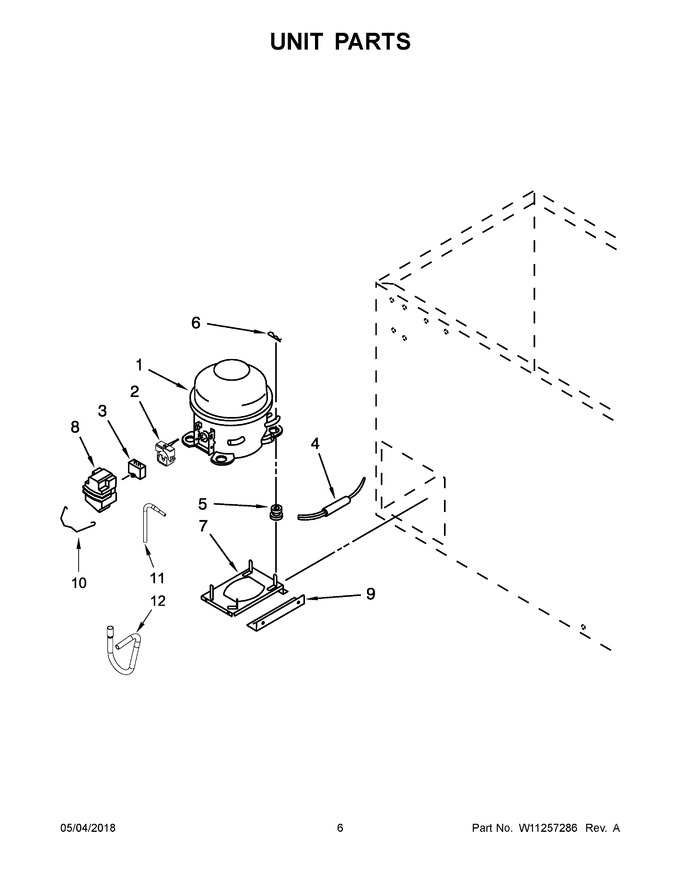

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10233961		Compressor   (Replaces: W11189854)				$ 551.48
2	W10873801		Device, Start   (Replaces: W10796752)			Immediately	$ 82.82
3	WPW10350564		Capacitor   (Replaces: W10350564)			Immediately	$ 89.54
4	WPW10143759		Drier   (Replaces: W10709968)			Immediately	$ 27.70
5	W11661108		Grommet   (Replaces: 2183042)				$ 13.04
6	A201435		Clip, Compressor   (Replaces: W10563930)		Appelez-nous	-
7	W10574602		Base, Compressor		Appelez-nous	-
8	W10574450		Shield, Capacitor				$ 29.33
9	3-81556-001		Brace		Appelez-nous	-
10	W10574470		Strap, Bale				$ 16.78
11	W10721471		Discharge Tube		Appelez-nous	-
12	W10721470		Suction Tube		Appelez-nous	-
NI	N/P		Refrigerant Charge 4.75 Oz. (r-134a)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
